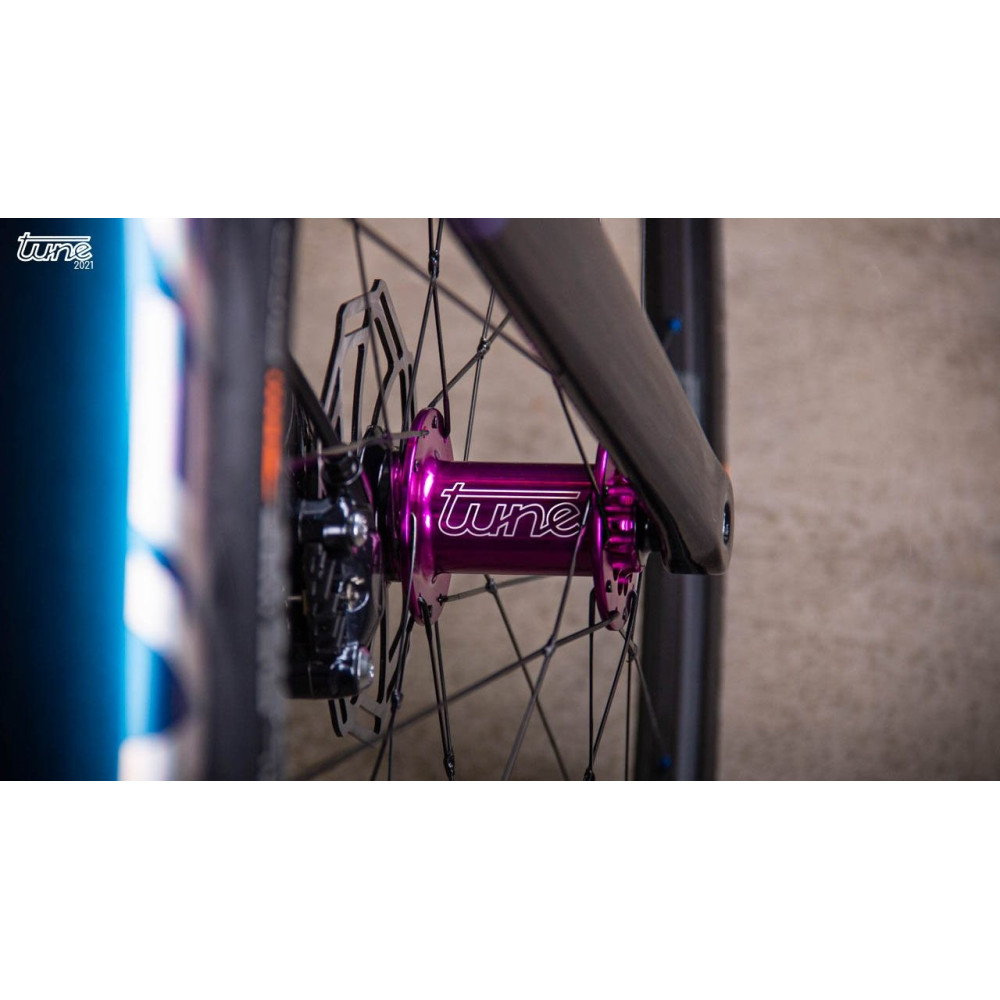

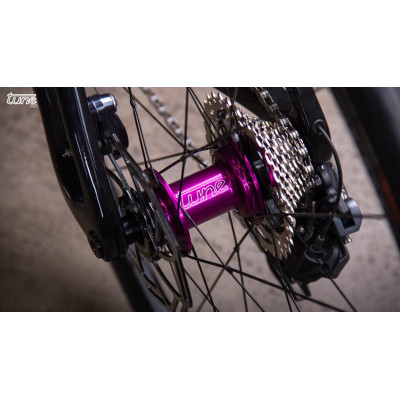

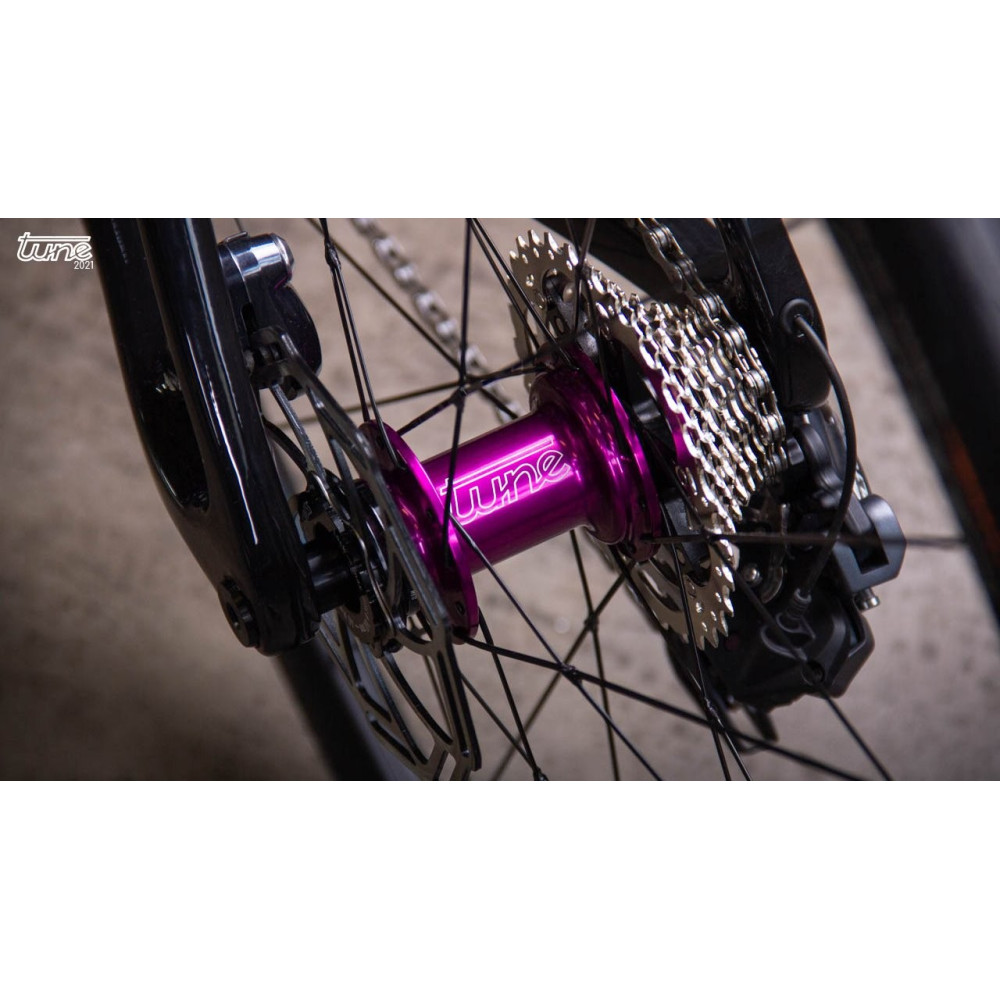

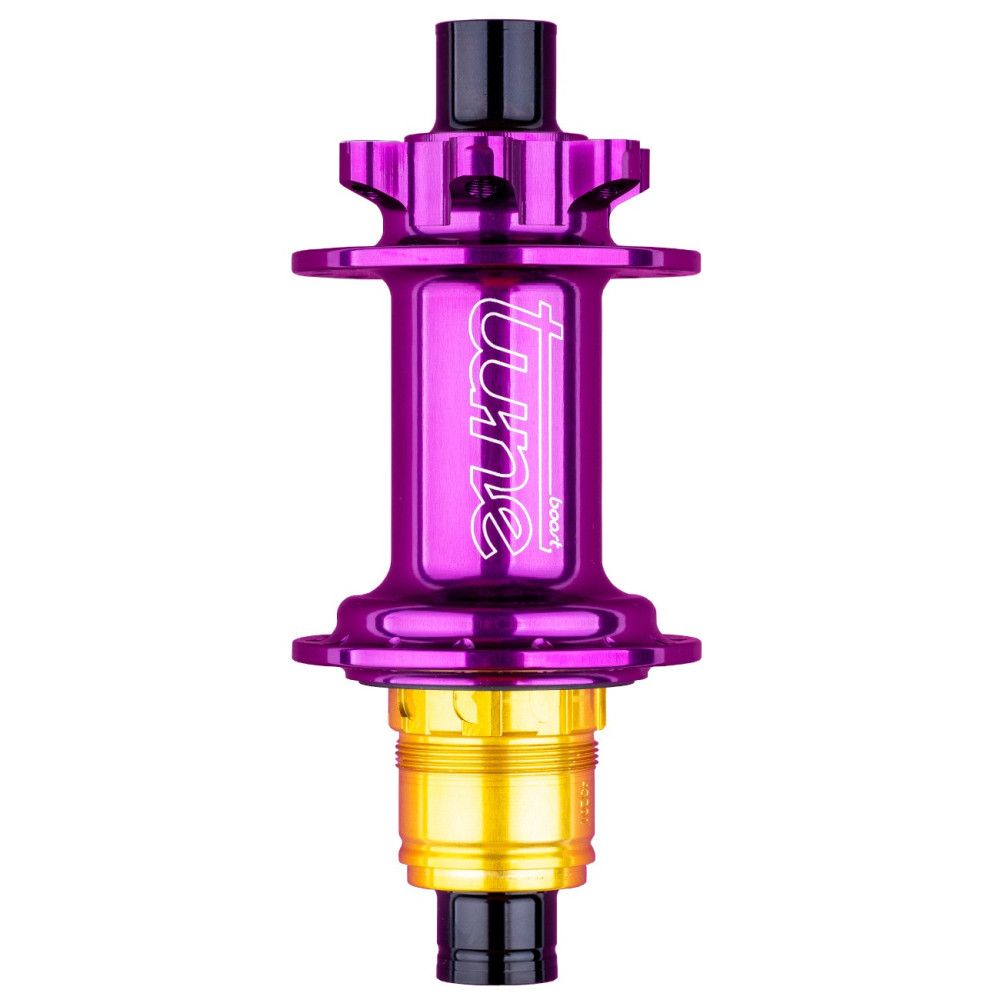

Tune KillHill / ClimbHill Endurance Purple Violet Limited Edition 15x110 / 12x148 Boost XD 32h SET

-TUNE ClimbHill Boost 32 12mm Alu Caps, XD/XDR 3T End, Bearing Endurance, violet 4062266269238
- TUNE KillHill Boost 32 15mm Alu Caps, Bearing Endurance, violet 4062266269184

Prémiový ľahký SET predného a zadného náboja nemeckej výroby

Trieda: Endurance

Použitie: Gravel, MTB, XC, All Mountain, Trail, Enduro

Hmotnosť: 124g + 220g

Zákazková výroba! Viac info o TUNE!

Produkty TUNE sú vyrábané na zákazku centre nemeckého inžinierstva Black Forest (Germany). Strojová CNC výroba z leteckého hliníka, ručne lisované ložiská. Doba výroby 1-2 týždne.

Technická špecifikácia:

Colours: available in all Tune anodised colours
Max. Rider weight: 100kg
Max. System weight: 115kg
Weight: 230,7g/12X148mm-6 bolt_ 226,3g/12X148mm-centerlock_ 228,3g/12X142mm-6 bolt_ 223,9g/12X142mm-Centerlock
Hub hole count: 28 or 32 for 3-cross pattern
Max Spoke Tension: 1100N
Axle type: available in 5mmX135mm /12mmX142mm /12X148mm with Aluminium Endcaps
Bearing Type: standard on the right-side and double sealed Endurance on the left-side
Freewheel types: 3Teeth Titanium Technology reinforced Endurance
Freewheel standard: available with XD, XDR, Shimano HG10 or Shimano HG11
Brake Interface: available in Centerlock and in 6-Bolt for 5mm, 12mm axles

Dimensions
for axle type: 148mm
Flange distance left: 36,3mm
Flange distance right: 24,1mm
Pitch circle left: 55,5mm
Pitch circle right: 55,5mm
Dia. spoke hole: 2,4mm

Colours: available in all Tune anodised colours
Max. Rider weight: 100kg
Max. System weight: 115kg
Weight: 118,0g/15X100mm-centerlock_ 122,4g/15X100mm-6Bolt_ 119,4g/15X110mm-centerlock_ 123,8g/15X110mm-6Bolt
Hub hole count: 28 or 32 for 3-cross pattern
Max Spoke Tension: 1100N
Axle type: available in 5mmX100mm/ 12X100mm/ 15mmX100mm/ 15mmX110/ with Aluminium Endcaps TorqueCaps-15mmX110mm with Carbon Endcaps
Bearing Type: standard
Brake Interface: available in Centerlock and 6-Bolt for 5mm, 12mm and 15mm axles and 6-Bolt only for TorqueCaps
Dimensions
for axle type: 110mm
Flange distance left: 27,4mm
Flange distance right: 37,0mm
Pitch circle left: 55,5mm
Pitch circle right: 55,5mm
Dia. spoke hole: 2,4mm

MADE IN GERMANY
