Item number: EB1310000Z // EAN: 4054289011741

Alternative item number: 2124563

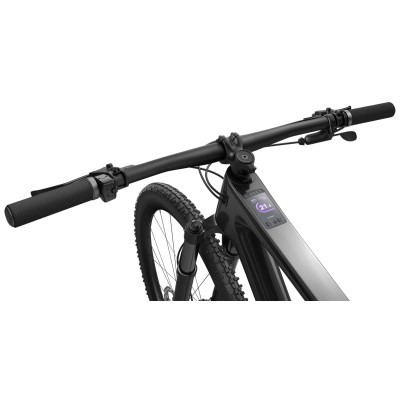

Bosch Display Kiox 400C (BRC3200) SMART SYSTEM

Displej Bosch Kiox 400C je ideálnym spojením maximálnej funkčnosti a sofistikovaného dizajnu. Vďaka 2“ farebnému displeju s jasom až 1000 cd/m2 zobrazuje informácie s maximálnou ostrosťou. Vstavaný snímač jasu navyše vždy prispôsobuje jas okolitému svetlu. To znamená, že displej je vždy ľahko čitateľný za akýchkoľvek svetelných podmienok. Kiox 400C je kompatibilný s eBicyklami s motormi Bosch Smart System. Možno ho tiež spárovať s aplikáciou Bosch eBike Flow a používať spolu s ďalším príslušenstvom Smart System, ako je Kiox 300, Kiox 500, SmartphoneGrip alebo Mini Remote. Kiox 400C sa montuje na hornú trubku pomocou montážnej skrutky. Tam slúži ako náhrada za systémový ovládač Bosch. Horná rúrka musí mať príslušný výrez, aby sa tam mohol namontovať displej. Ak je na vašom eBike nainštalovaný systémový ovládač spolu s rámovým adaptérom, môžete nainštalovať Bosch Kiox 400C. Napájanie prebieha cez zapnutý eBike. Integrácia do hornej rúrky zároveň chráni displej pred intemperiami. Nárazy a otrasy ho nemôžu poškodiť. Má tiež stupeň krytia IP55, čo znamená, že je chránený proti prachu a prúdom vody.

Poznámka: Pri inštalácii zariadenia Kiox 400C dochádza ku konfliktu ID. Tento problém môže vyriešiť špecializovaný predajca niekoľkými kliknutiami. Kým sa konflikt nevyrieši, bude eBike fungovať normálne bez akýchkoľvek obmedzení.

FEATURES OF THE BOSCH KIOX 400C DISPLAY SMART SYSTEM

2" colour display with brightness sensor

For eBikes with Bosch Smart System

Inconspicuously integrated into the top tube

Compatible with the Bosch eBike Flow app

Intuitive & simple operation

Good overview of all data

Visual & auditory navigation

Can be used with Smart System accessories

FEATURES OF THE KIOX 400C DISPLAY

The design of the Kiox 400C is simple and can be operated intuitively. The on/off button is located at the top left. Briefly press the button to switch the eBike on and hold the button down for 3 seconds to switch it off. To the right is the USC-C port. You can use this to charge end devices such as your smartphone. In addition, the Kiox 400C can also be charged with a charger via the port if it has a very low charge level. Normally, however, the Kiox is automatically supplied with Stromer via the eBike while riding. On the lower side of the display is the riding mode button, which you can use to switch between riding modes. A short press increases the assistance level, while you hold the button for lowering for more than 1 second. Next to this is the selection button, which you can use to confirm selected options on the display, scroll to the right and open the quick menu.

DISPLAY OF THE BOSCH KIOX 400C

While riding, you can view various data on the Bosch Kiox 400C display. In addition to basic data such as speed, time, distance, total distance, riding time and riding mode, you can also view your fitness data such as calories, cadence, heart rate and riding performance. You are also informed about the battery range and charge status. If you have also installed Bosch ABS on your eBike, you will receive information on the current ABS mode and data on the braking distance. Using the Bosch eBike Flow app, you can customise the Kiox 400C display according to your wishes with over 30 customisation options. You determine which data you want to see while riding. The display also provides a status indicator for the eBike Lock function. Please note that the Kiox 400C cannot be set up as a key .

KIOX 400C IN CONJUNCTION WITH THE EBIKE FLOW APP

Using the Bosch eBike Flow app in conjunction with the Kiox 400C enables further functions and information in addition to customising the display. In addition to the basic information, you can also read ride data such as ascent, altitude and elevation profile. The display can also be used for navigation. This shows you a map, the distance to your destination and the arrival time. In addition, the display plays a warning tone if you need to turn off, for example. The eBike Flow app can also be used to carry out software updates on the eBike. This means you don't have to visit a specialist dealer, but can update your eBike from the comfort of your own home.

SPECIFICATIONS

Drive system: Bosch drive

Manufacturer: Bosch

Power source: eBike battery, own battery

Bosch System: Bosch Active Line from 2024 Smart System, Bosch Active Line Plus from 2024 Smart System, Bosch Cargo Line from 2022 Smart System, Bosch Performance Line CX from 2022 Smart System, Bosch Performance Line CX from 2025 Smart System, Bosch Performance Line CX Race from 2023 Smart System, Bosch Performance Line from 2023 Smart System, Bosch Performance Line Speed from 2023 Smart System, Bosch Performance Line SX from 2024 Smart System

Item: Bosch Kiox 400C Display Smart System

Scope of delivery: 1x Bosch Kiox 400C display incl. operating instructions

Measurements: Length: 8.6 cm | Width: 4.5 cm | Height: 2.0 cm

Safety class: Protection class IP55 (protected against dust & water jets)

Display: Colour display | Brightness up to max. 1000 cd/m2

Compatibility: eBikes with Bosch Smart System motor | eBike Flow app & Smart System accessories

Maker's ref. no.: EB1310000Z

Mounting: Mounted on the top tube

Item weight: approx. 57 g

Control button: 3 buttons: On/Off button | Drive mode button | Select button

Display size: Diagonal: 2.0" / 5.1 cm

Bosch E-Bike System: Bosch Smart System
