Description

Hardware facts

• Smart system reduces the control unit for eBikes to the essentials
• Built into the top tube, made of robust material and protected against knocks and scratches
• Control the most important functions with just two buttons (turn on eBike, switch riding mode)
• Smart functions available such as eBike Lock
• LED displays for riding mode and battery charge level
• Diagnostic interface (type: USB-C) for diagnostics or as an alternative charging option for the integrated battery of the System Controller (not for charging the phone)
• Expandable with Mini Remote for additional functions and more convenient Operation: Control the eBike Flow app and the Bosch display while riding, Use of walk assistance, Turning the light on and off

Connectivity facts

• Bluetooth connectivity (Bluetooth 5.0 Low Energy)
• Software updates via eBike Flow app
• Recording activity details via System Controller and display in the eBike FlowApp

Scope of delivery

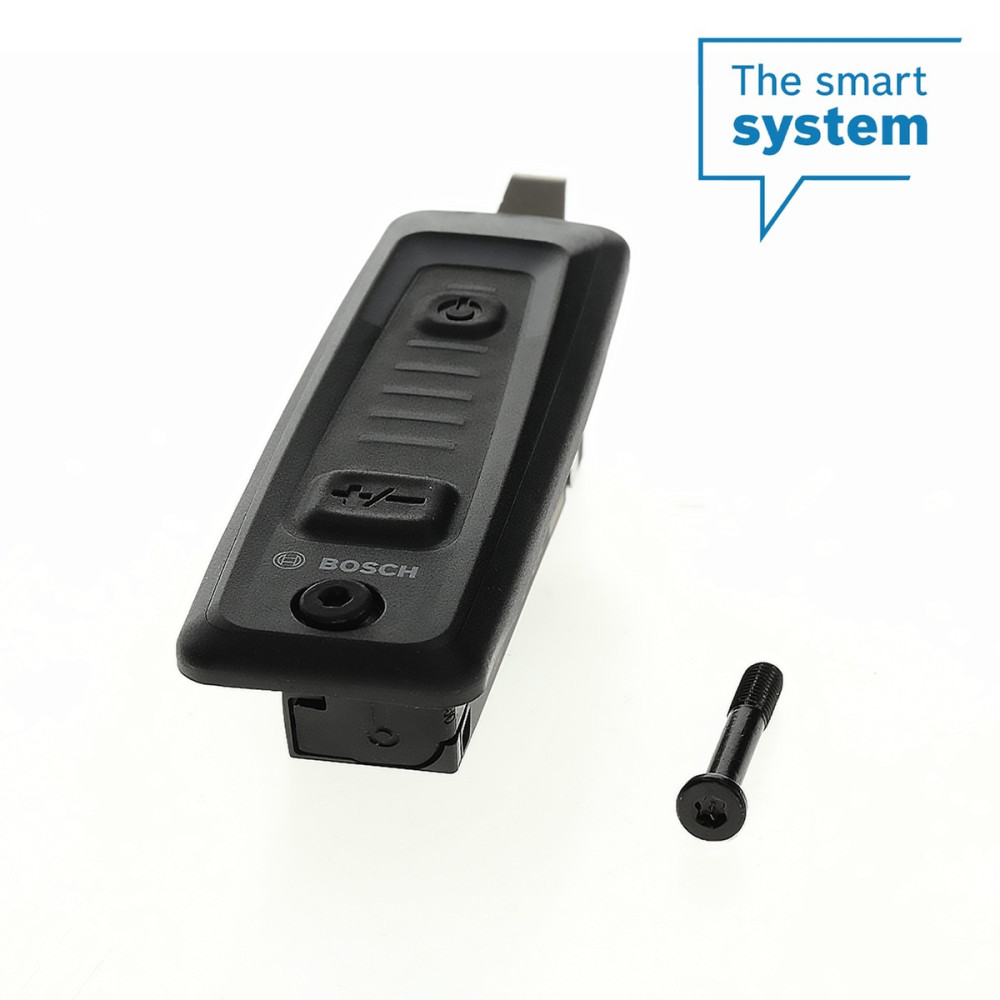

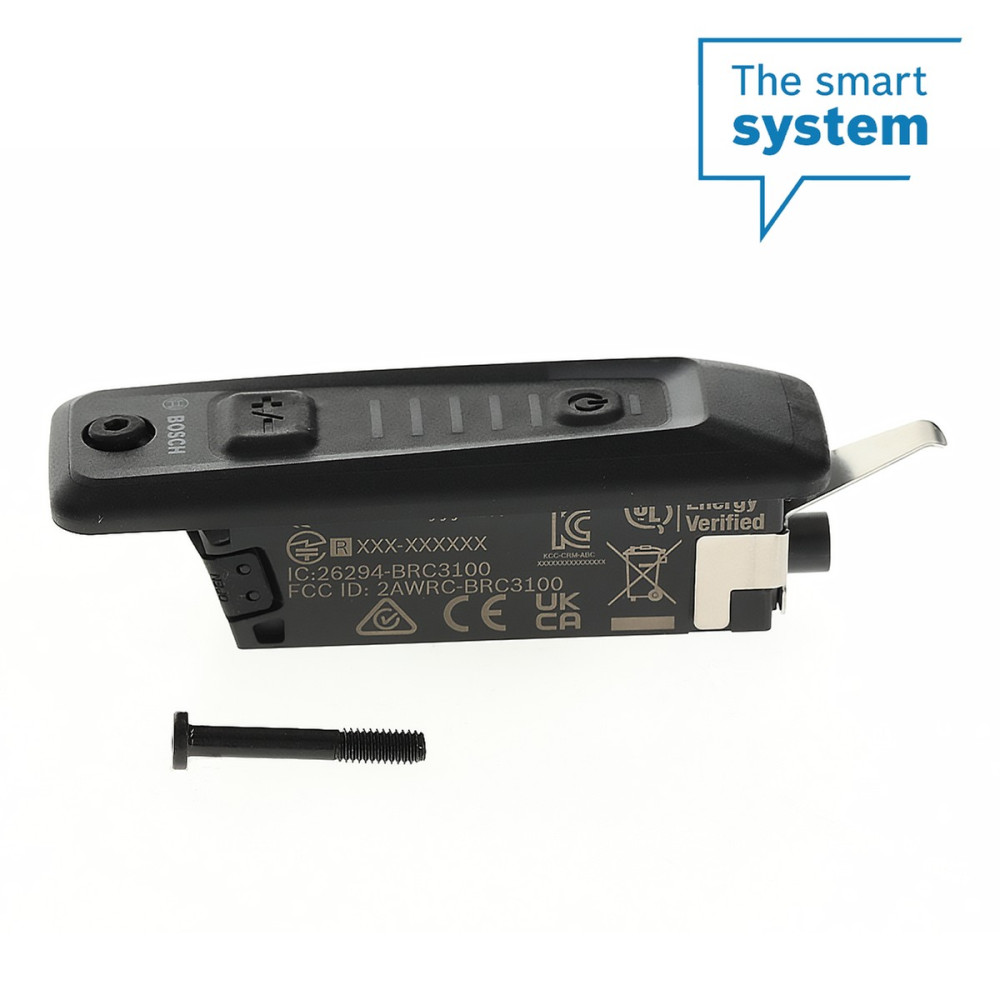

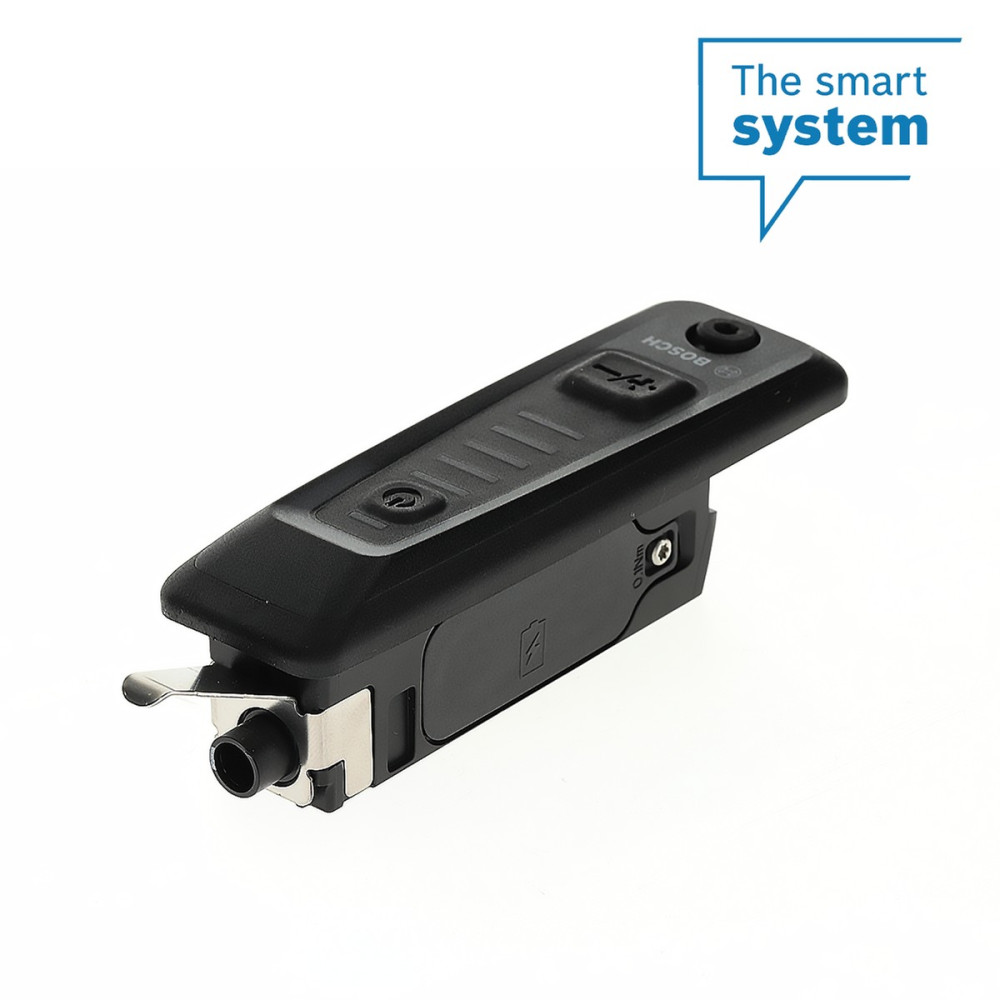

• 1x System Controller EB13100000
• 1x Short screw EB1320003B
• 1x Long screw EB132000AF
• 1x Operating and installation instructions
