VOLspeed V4 for Bosch Gen4 Speed Tuning Chip

1233_E
€156.60
Tax included
€174.00 Save 10%
Quantity
In stock 5 pcs

When will I receive the goods?

Odberné miesto DPD / Alzabox Thursday 04/30/2026
DPD Kuriér Thursday 04/30/2026
Odberné miesto PACKETA Monday 05/04/2026
DPD EU Monday 05/04/2026
Výdejní místo PACKETA Monday 05/04/2026
Bikes (oversize) Monday 05/04/2026
Did you find a better price?

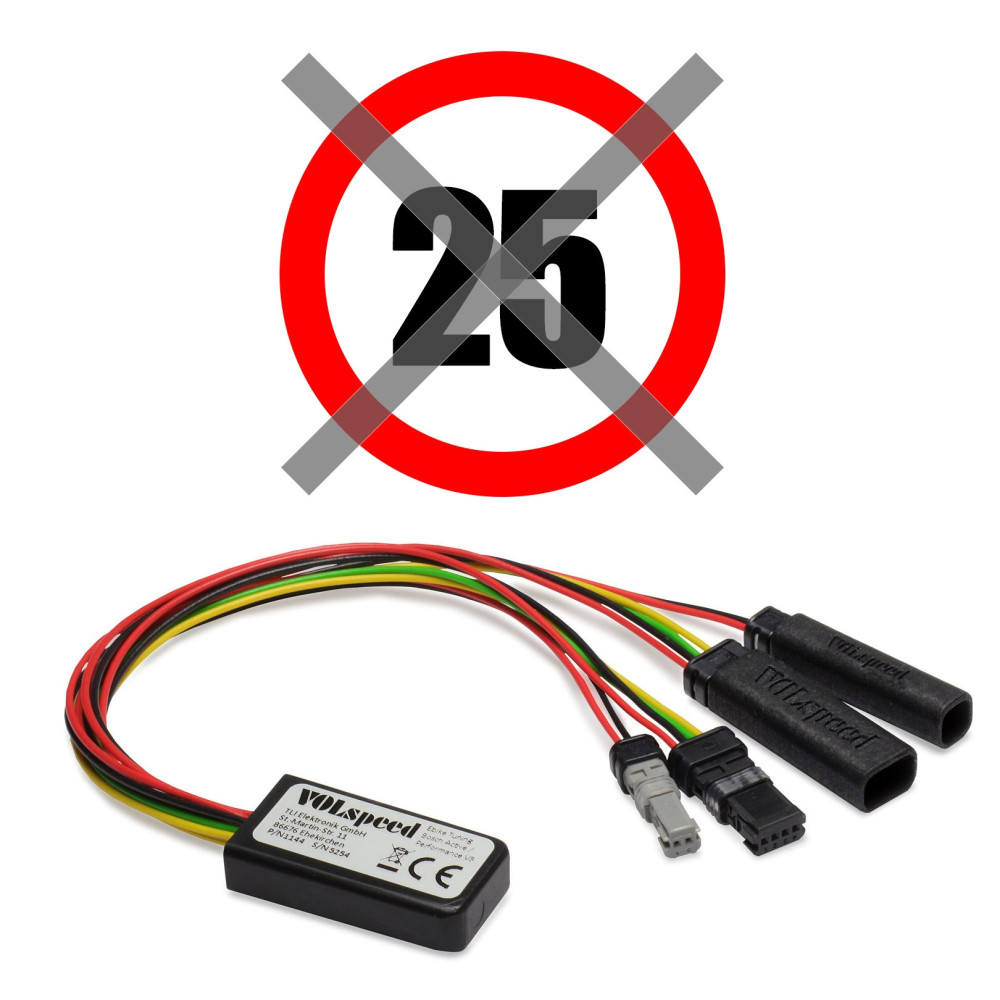

VOLspeed V4 Control Unit / tuning module / chip for Ebike Bosch Gen4 engines and older - speed unlocking BOSCH EBIKE

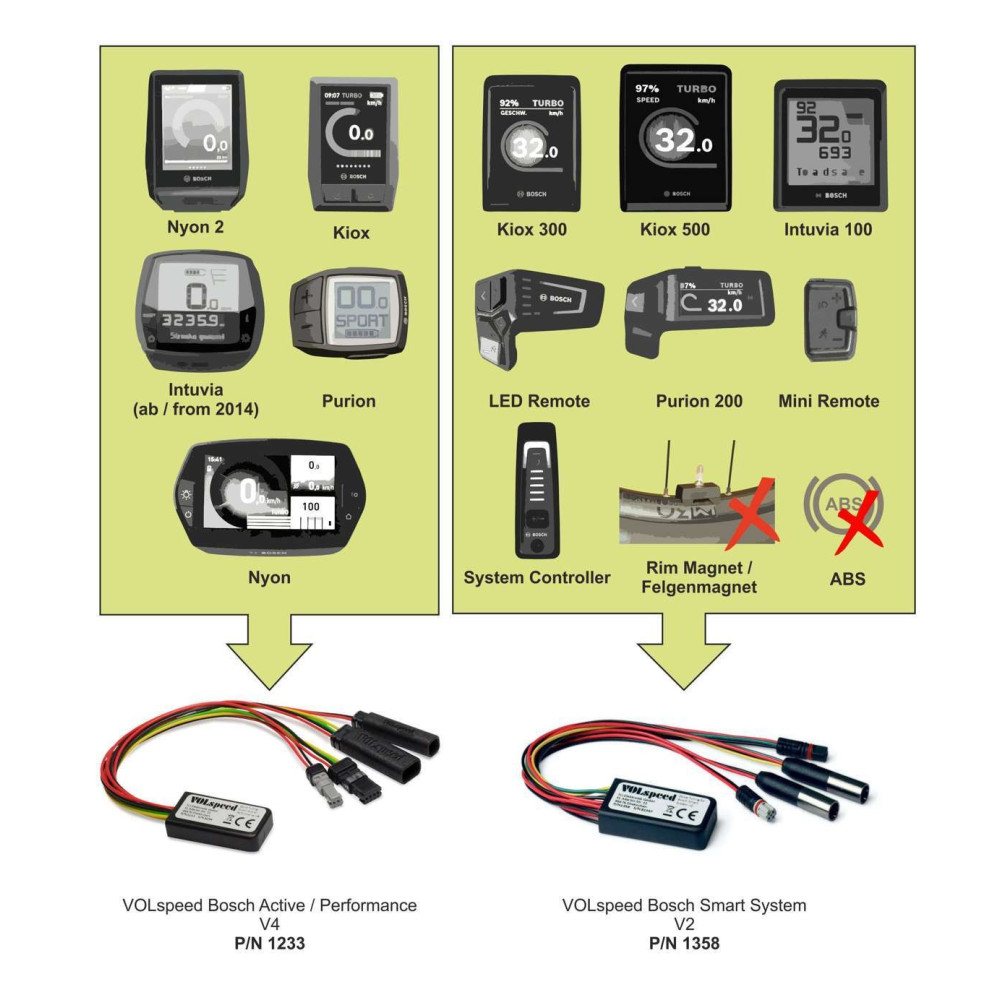

ATTENTION: NOT COMPATIBLE with BOSCH Smart System. For correct identification, see the division by display. photo gallery

Latest version V4 P/N 1233 02/2024, Slovak manual

SPEED SUPPORT UP TO 45km/h, simplified PLUG&PLAY installation

- the most popular solution for the 4th generation of Bosch drives

- removes the 25km/h software speed limit , does not increase performance or interfere with drive functions or individual modes

- installation by the end customer, without the need for diagnostics, a computer, a mobile phone, etc. (it is enough to connect 2 cables directly in the engine compartment + activation with buttons)

Weight: 25g

Manufacturer: TLI Elektronik GmbH, Made in Germany, CE certificate

VOLspeed V4 specifications:

Supports all generations gen2/3/4/ Active Line, Performance Line, Performance CX from 2014-2022 and the latest Bosch firmware from 2022 , Purion / Intuvia / Kiox / NYON / NYON 2021 displays (incompatible with BOSCH SMART SYSTEM BES3 2022/23 )

Bosch engines have new anti-tuning software that detects not only engine tampering, but also mechanical tuning (magnet position changes, etc.) that alter the measured speed, so most previous tuning methods will not work. When detected, the engine automatically switches to emergency mode (Limbo mode - Error 504 - need to visit a Bosch dealer)

VOLspeed V4 with its own control unit does not interfere with engine performance (does not increase it), so there is no risk of engine damage due to overload.
VOLspeed V3 removes the 25km/h software speed limit , or increases the limit to any user-specified value from 25-45 km/h with maintaining engine support max 250W / 85 Nm .

Compared to the competing SpeedBox, Volspeed is more stable (minimal to no detection by anti-tuning software) and no "recalculation" is required at the end of each ride.

Hardware specification
  • Quick installation on original connectors without interference with wiring
  • Quick de-installation to original state
  • Not visible from the outside
  • It is water-resistant.
  • It is 40% smaller in size than competing modules
Software specification
  • Shows real and correct speed, as well as real distance traveled
  • Shows optimized range based on battery status
  • The module can be controlled using the buttons on the remote control, no smartphone or PC required
  • The chip is activated using a predefined button (even while driving)
  • Possibility to set an individual activation code with your own button combination to prevent unauthorized use by another person
  • After activating the chip, the speed limit is automatically set to 32 km/h (the so-called USA limit, sufficient for most users)

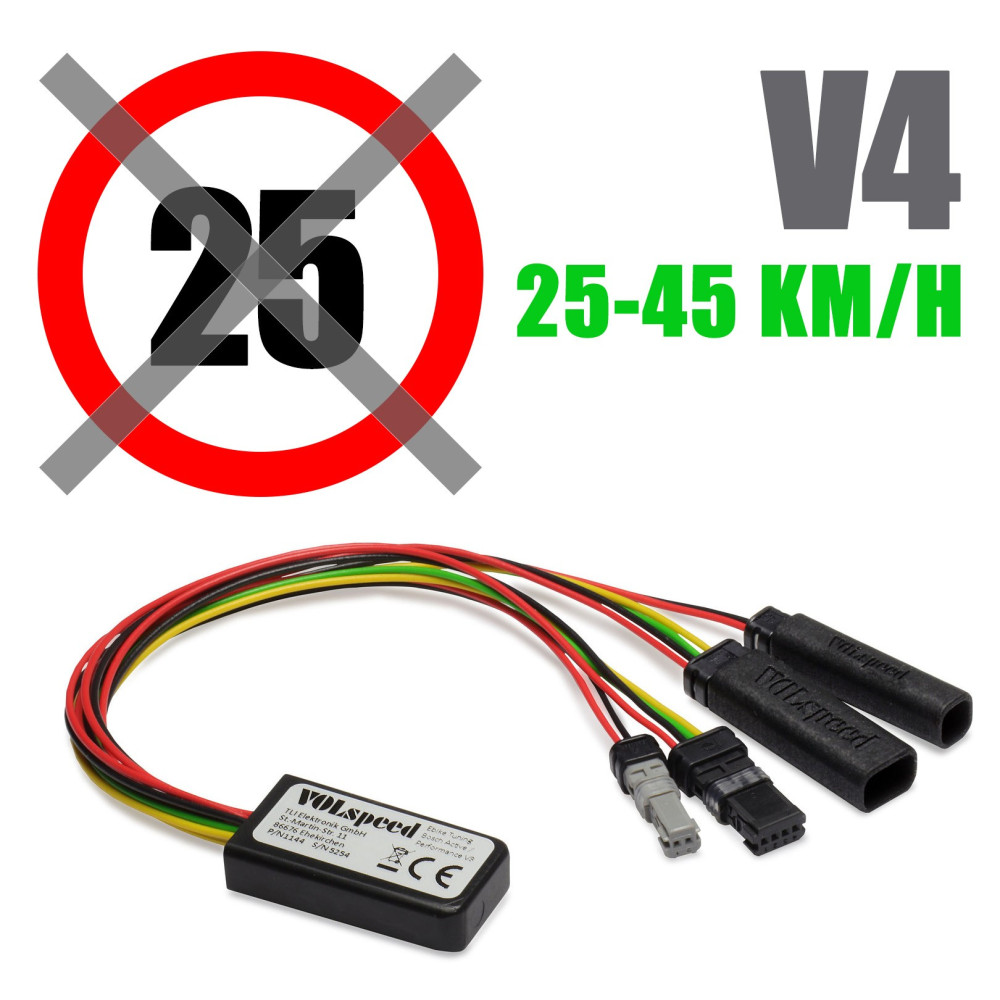

  • The limit can be changed freely with the buttons from 25-45km/h. (e.g. 45km/h = S-PEDELEC limit )
  • The chip is always automatically deactivated after turning off the e-bike, so the speed limit works as usual at 25 km/h.
  • Possibility of complete deactivation by setting WORKSHOP mode in case of visiting an authorized service center
  • Dynamically reduces WALL-EFFECT - after reaching the limit, it does not turn off the support immediately, but smoothly reduces the percentage of engine support - more pleasant riding
Installation (even an ordinary customer can do it at home):
approx. 15 min, does not require any special tools or diagnostics, requires some skill
0. We remove the battery from the e-bike
1. Remove the engine cover
(On some e-bikes, it will also be necessary to remove the left crank with a puller )
2. Disconnect 2 connectors from the motor and connect them to the module. Connect the same connectors from the module to the motor.
3. Insert the battery into the e-bike and turn on the display/e-bike
4. The V4 chip does not need to be installed, it is installed automatically (PLUG&PLAY)
5. Reinstall the engine cover, activate the Chip with the selected button (or combination of buttons) and go for a ride.
Recommendation:
The set Limit from 25-35 km/h still has optimal energy consumption, above 35 km/h the consumption increases and thus shortens the range

Technical data

Dimensions: 3.7cm x 1.9cm x 0.9cm
Module length 18cm
Weight: 0.025kg

Packaging:

- VOLspeed V4 tuning module for Bosch E Bikes
- Slovak manual + Picture manual (in English)
- 2x zip ties

Compatibility from 2014 to 2022:

  • Gen4
    Performance Line CX ( BDU4XX )
    Performance Line Speed ( BDU4XX )
    Cargo Line/Speed ( BDU4XX )
  • Gen3
    Active Line ( BDU3XX )
    Active Line Plus ( BDU3XX )
    Performance Line ( BDU3XX )

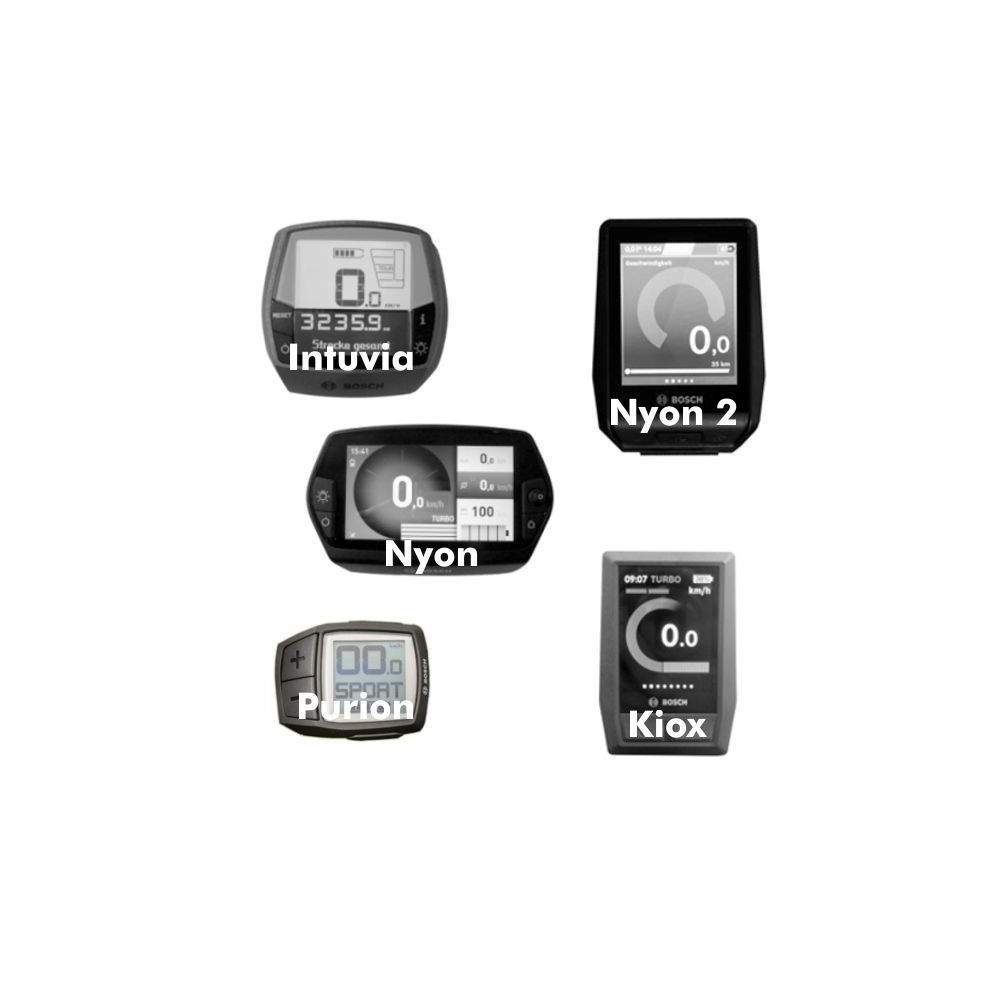

Display support: Intuvia, Purion, Nyon, Kiox

COBI Support: ??? To the question

Scope of delivery: 1 kit

WARNING

Operating an electric bicycle equipped with a chip Removing the speed limit may be illegal in some countries. An electric bicycle equipped with a Chip loses its status as a bicycle according to EN15194:2017, therefore its operation may not be in accordance with the applicable legislation for the operation of electric bicycles on roads (including roads intended exclusively for cyclists and pedestrians). Installing the Chip may result in the loss of the warranty on the drive or bicycle. The manufacturer or seller is not liable for any damage to health or life or property. Use at your own risk.

LIFETIME WARRANTY

It covers the functionality and compatibility of the chip on the current and previous firmware of the drive at the time of sale . The warranty does not cover the inoperability of the chip after a later update of the drive, with which the chip may no longer be compatible!

WARNING BEFORE UPDATING

Before visiting the service center, it is necessary to physically remove the Chip from the drive! The Chip manufacturer does not recommend updating the drive. If using a mobile application (e.g. Ebike flow), turn off automatic updates. If this is not necessary, please always consider updating the drive. Each update contains improved anti-tuning software that can detect the Chip and disable the Chip or temporarily block the drive (Emergency mode / Limbo mode). In such a case, we recommend removing the Chip and checking the functionality of the drive.
If the drive works without removing the Chip (i.e. the Chip is defective), contact us with an exact description of the bike and the situation.
If the problem persists (i.e. the drive itself is defective, not the Chip), please visit your bicycle dealer.

TESTED FIRMWARE V4 (all to date):

Engine Type Software Version Compatible Remark
Active Line Gen2 from MY2014 1.8.6.0 yes
ActiveLine (Plus) Gen3 from MY2018 1.2.3.0
1.3.0.0
1.3.3.0		 yes
Performance Line Gen3 from MY2020 1.2.3.0
1.3.0.0
1.3.3.0		 yes
Performance Line (CX) Gen2 MY2014-2019 1.8.6.0 yes
Performance Line CX Gen4 from MY2020 1.0.3.0
1.1.0.0
1.1.2.0
1.1.5.0		 yes
Cargo Line from MY2020 1.1.2.0
1.1.5.0		 yes

Display Type Software Version Compatible Remark
Purion 1.4.0.0 yes
Intuvia 5.9.2.0 yes
Kiox 4.0.4.0 yes
Nyon 1GB 1.9.2.0 yes
Nyon 8GB 2.9.2.0 yes
Nyon from MY2021 4.0.1.0 yes
Smartphone Hub 1.0.9.0 yes 1)
COBI.Bike 1.16.4 yes 1)

1) With the Smartphone Hub and COBI.Bike, the operation of the tuning is different from the rest of the Bosch displays. You can download the instructions here.

COBI Manual VOLspeed Bosch V2 + V3 Download
href="http://wp-test.tli-elektronik.de/wp-content/uploads/2022/02/1233_BA_E_COBI_VOLspeed_Bosch_V4_Rev0.pdf">1COBIManual VOLspeed Bosch V4 Download

Battery Software Version Compatible Remark
PowerPack & PowerTube 1.12.1.0 yes
