SpeedBox 1.2 For Shimano (E8000, E7000, E6100, E5000) +E-Tube port

- removes the 25km/h software speed limit , does not increase performance or interfere with drive functions or individual modes

- installation by end customers, without the need for diagnostics, a computer, a mobile phone, etc.

Manufacturer: CZ

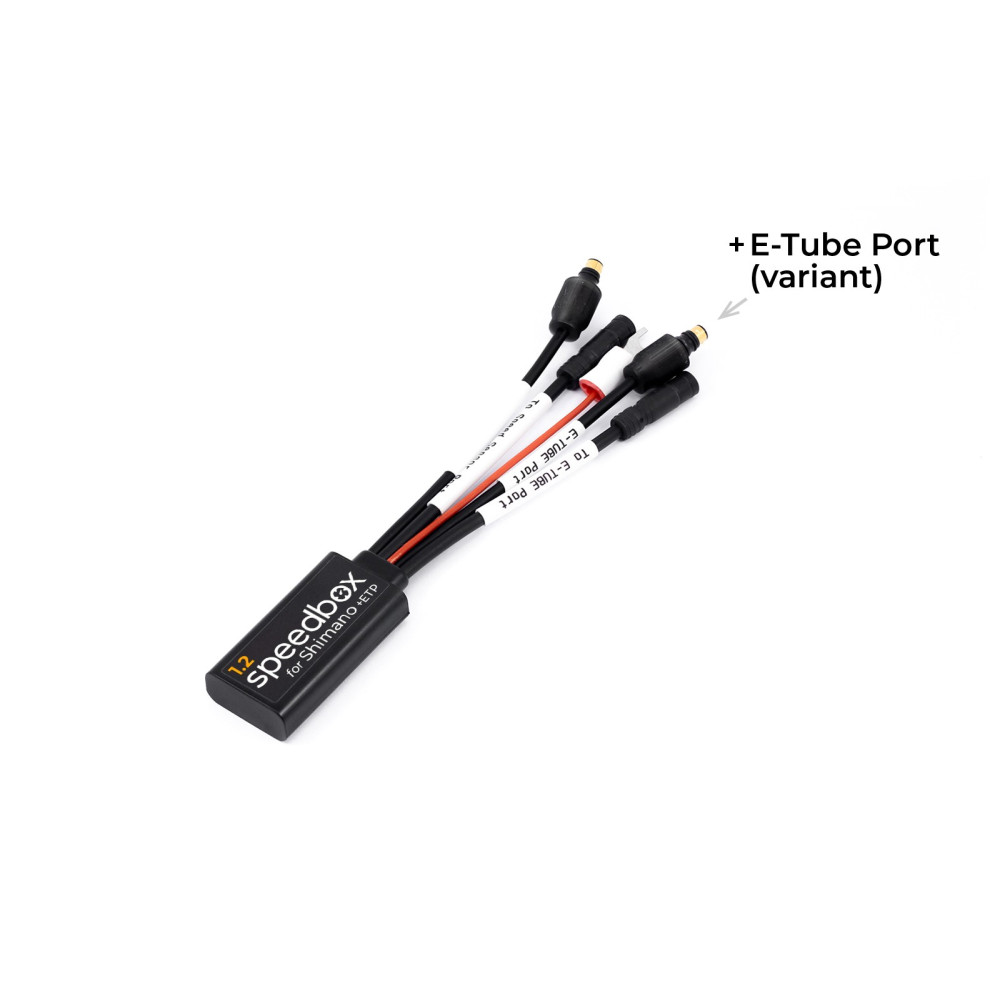

The variant "+E-Tube port" is intended for e-bikes without a free E-Tube port - usually e-bikes with one of the following components:
E5000 engine
Satellite System ON/OFF Switch
electronic derailleur Di2

FEATURES:
Activation/deactivation of the chip: by turning off/on the lights
Maximum speed: 50 km/h
Display: real values up to 23 km/h
Not compatible with: SpeedBox App

In case of updating the e-bike software, we recommend first uninstalling the SpeedBox from the e-bike, updating the software and then reinstalling the SpeedBox in the e-bike.

A completely redesigned tuning chip for your e-bike with a Shimano motor in a new design, completely new hardware and firmware.

The SpeedBox 1.2 tuning chip enables the deactivation of the e-bike speed limiter. After installing the chip, real data up to 23 km/h are displayed on the e-bike display.

If you want to monitor real values in the entire range of your driving speed, we recommend purchasing SpeedBox 1.2 B.Tuning for Shimano - real parameters from driving you can by following the SpeedBox App on your phone's display.

Compared to previous versions, this new product also plugs into the engine's E-Tube port. It is therefore necessary that the motor of the e-bike, in which you are going to install the new version of SpeedBox for Shimano, has one free E-Tube port available. If you do not have a free E-Tube port, please choose the "+E-Tube Port" option.

E-bikes usually do not have a free E-Tube port, which have e.g. with the Di2 derailleur or the on button integrated in the bike frame Satellite System ON/OFF Switch (EW-SW100, EW-SW300).

How does SpeedBox 1.2 work?

This chip is also characterized by easy control using the LIGHT button. If the lights are off, you can drive at unlimited speed. You can simply turn off the chip function by activating the lights. If you want to use tuning independently of the lights, do not connect the red plug during installation. This will keep the SpeedBox still active. This solution is also offered when the lights are permanently on. If you don't have lights on your bike, SpeedBox 1.2 will always be active.

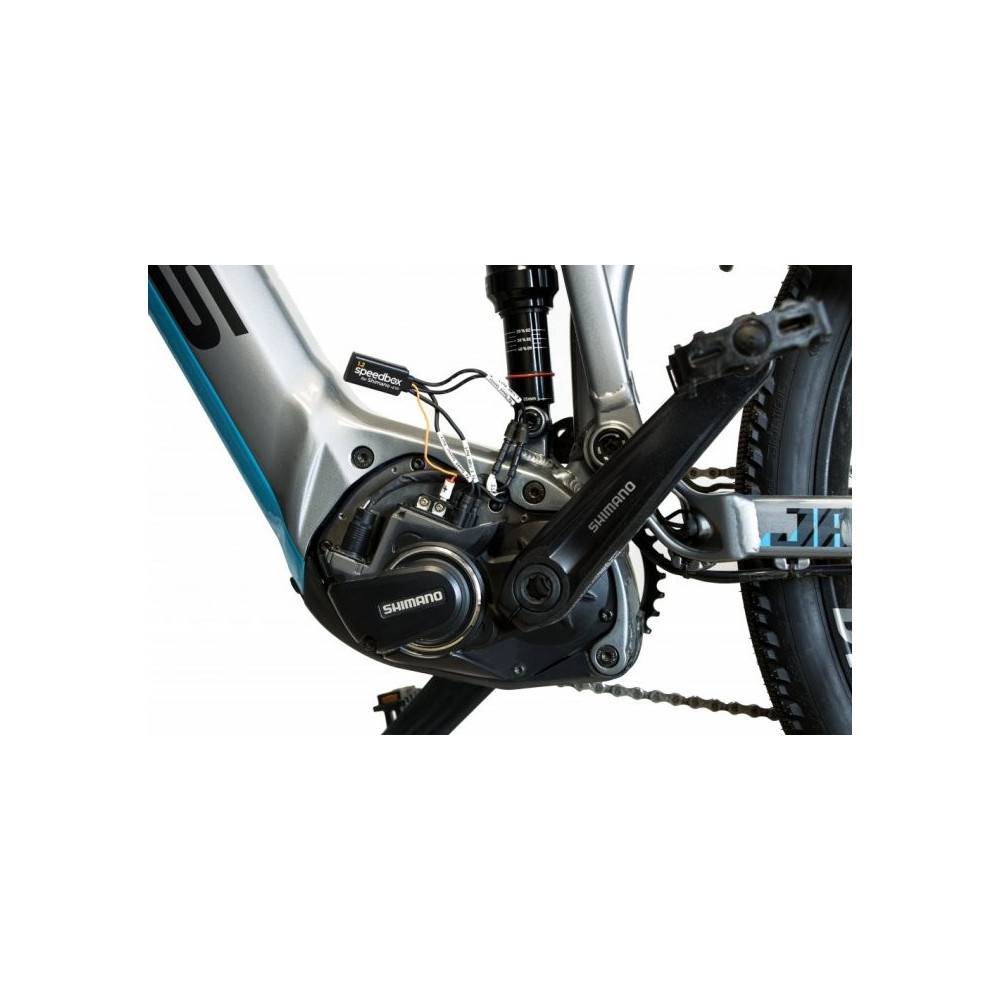

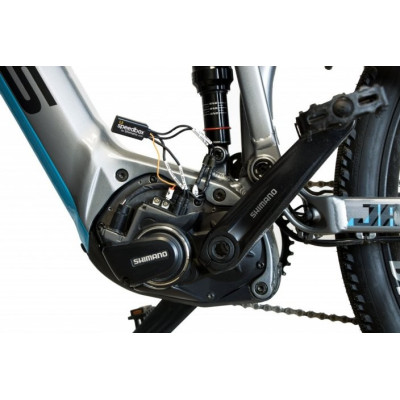

Assembly

For the production of SpeedBox chips, we use original connectors, so that the installation of the chip is really easy and the connection is correct. We have written detailed instructions and filmed videos, thanks to which each customer can install the SpeedBox by himself. Dismantling the tuning chip is as easy as mounting it. If you have any problem with connection, do not hesitate to contact us.

If you are going to install the SpeedBox on a completely new bike, you need to ride it for at least 10 km before starting the chip for the first time.

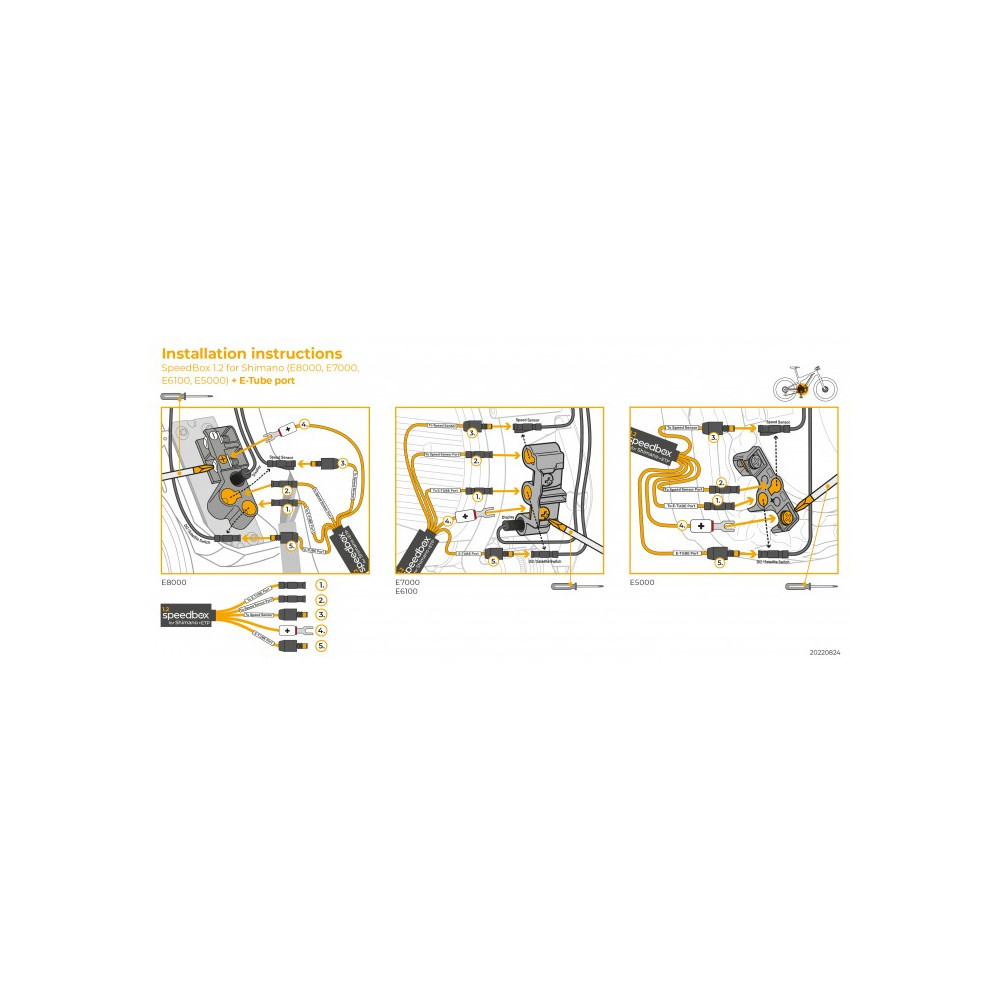

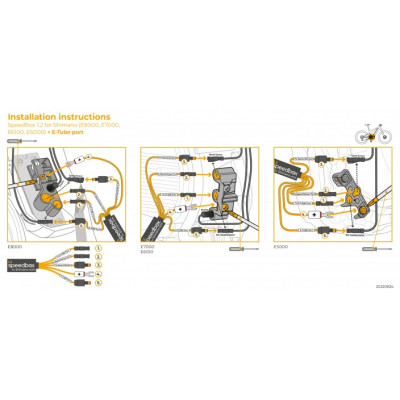

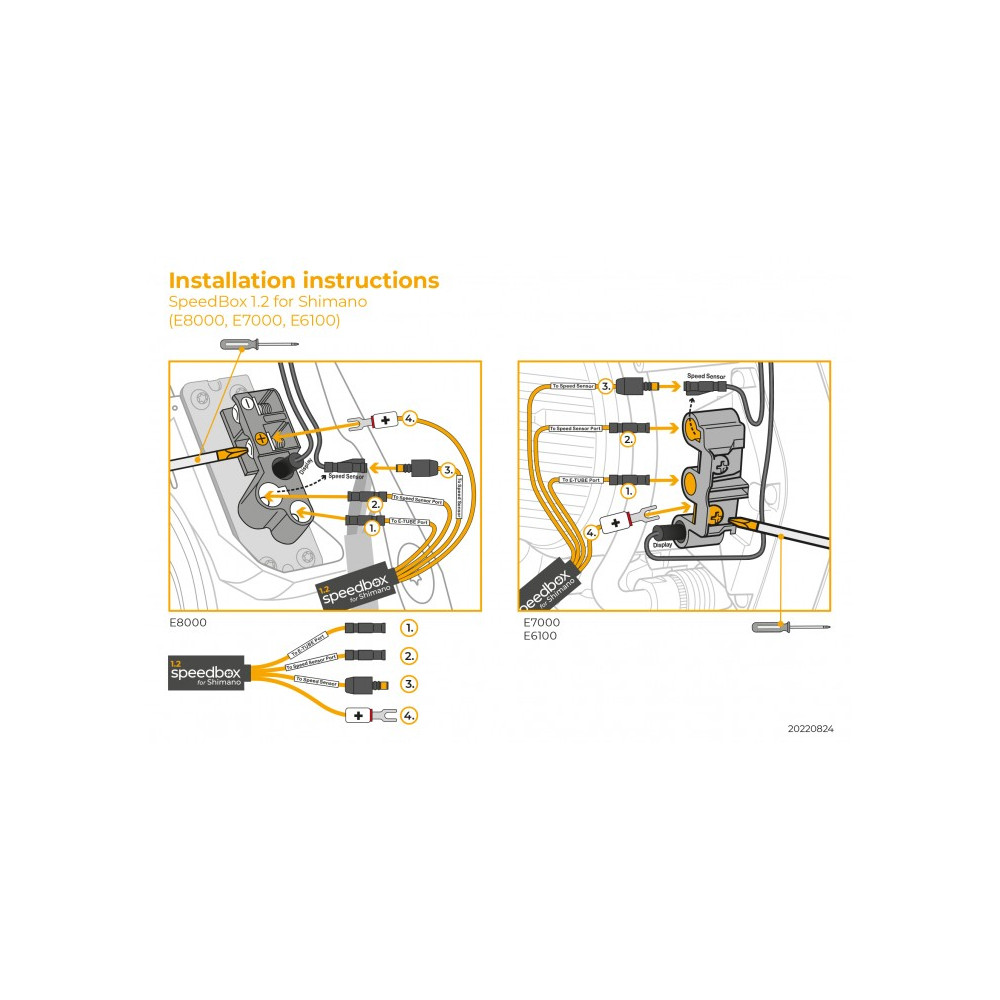

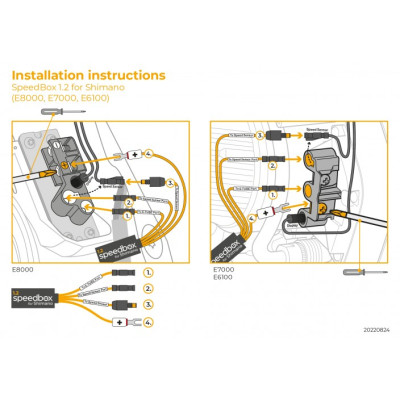

Detailed information on installation can be found here.

WARNING

Operation an electric bicycle equipped with a chip to remove the speed limit may be illegal in some countries. An electric bicycle equipped with a Chip loses the status of a bicycle according to EN15194:2017, therefore its operation may not be in accordance with the applicable legislation for the operation of electric bicycles on land roads (including land roads intended exclusively for cyclists and pedestrians). Installing the Chip may result in the loss of the warranty on the drive or bicycle. The manufacturer or seller is not liable for any damage to health or life or property. Use at your own risk.

LIFETIME WARRANTY

It covers the functionality and compatibility of the chip on the current and previous firmware of the drive at the time of sale . The warranty does not cover the inoperability of the chip after a later update of the drive, with which the chip may no longer be compatible!

WARNING BEFORE UPDATING

Before visiting the service center, it is necessary to physically remove the Chip from the drive! The Chip manufacturer does not recommend updating the drive. If using a mobile application (e.g. Ebike flow), turn off automatic updates. If this is not necessary, please always consider updating the drive. Each update contains improved anti-tuning software that can detect the Chip and disable the Chip or temporarily block the drive (Emergency mode / Limbo mode). In such a case, we recommend removing the Chip and checking the functionality of the drive.
If the drive works without removing the Chip (i.e. the Chip is defective), contact us with an exact description of the bike and the situation. If the problem persists (i.e. the drive itself is defective, not the Chip), please visit your bike dealer.
