SpeedBox 3.2 for Bafang (M200, M410, M500, M510) Speed Tuning Chip

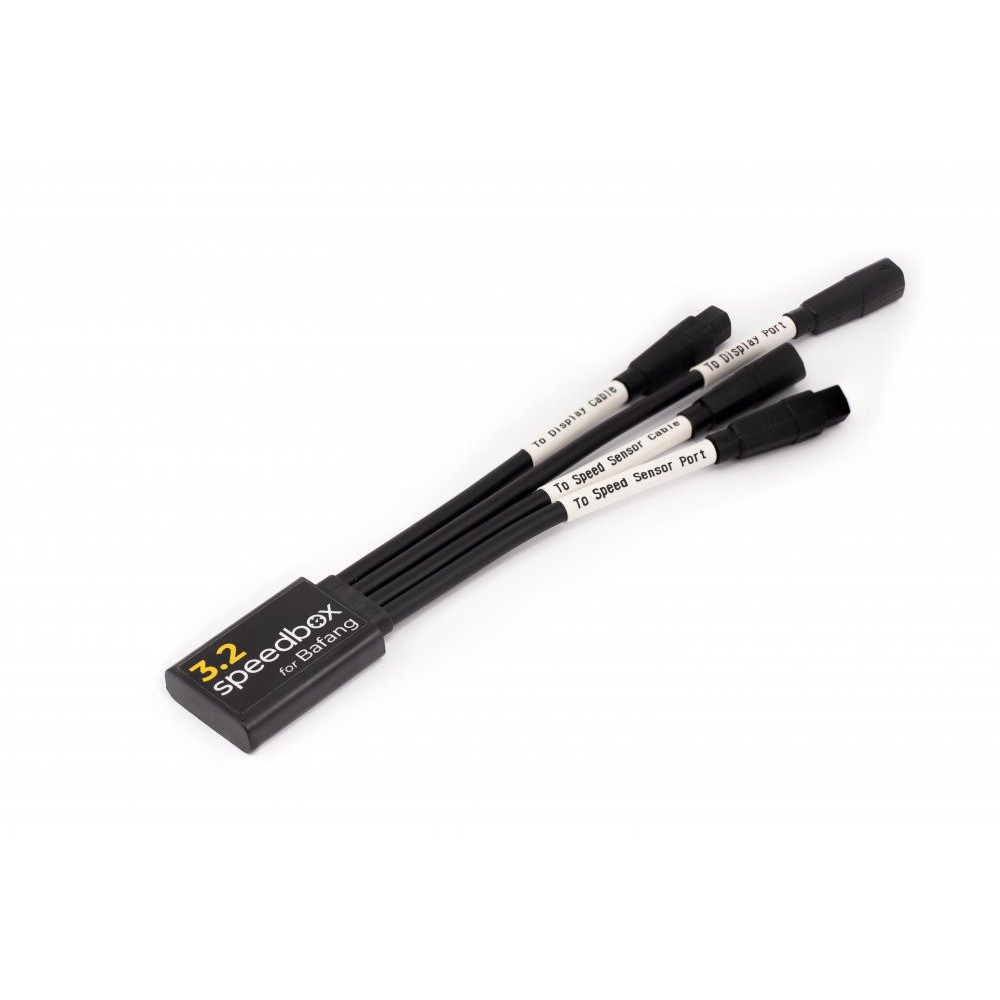

SpeedBox Control Unit / tuning module / chip

- removes 25km/h software speed limit

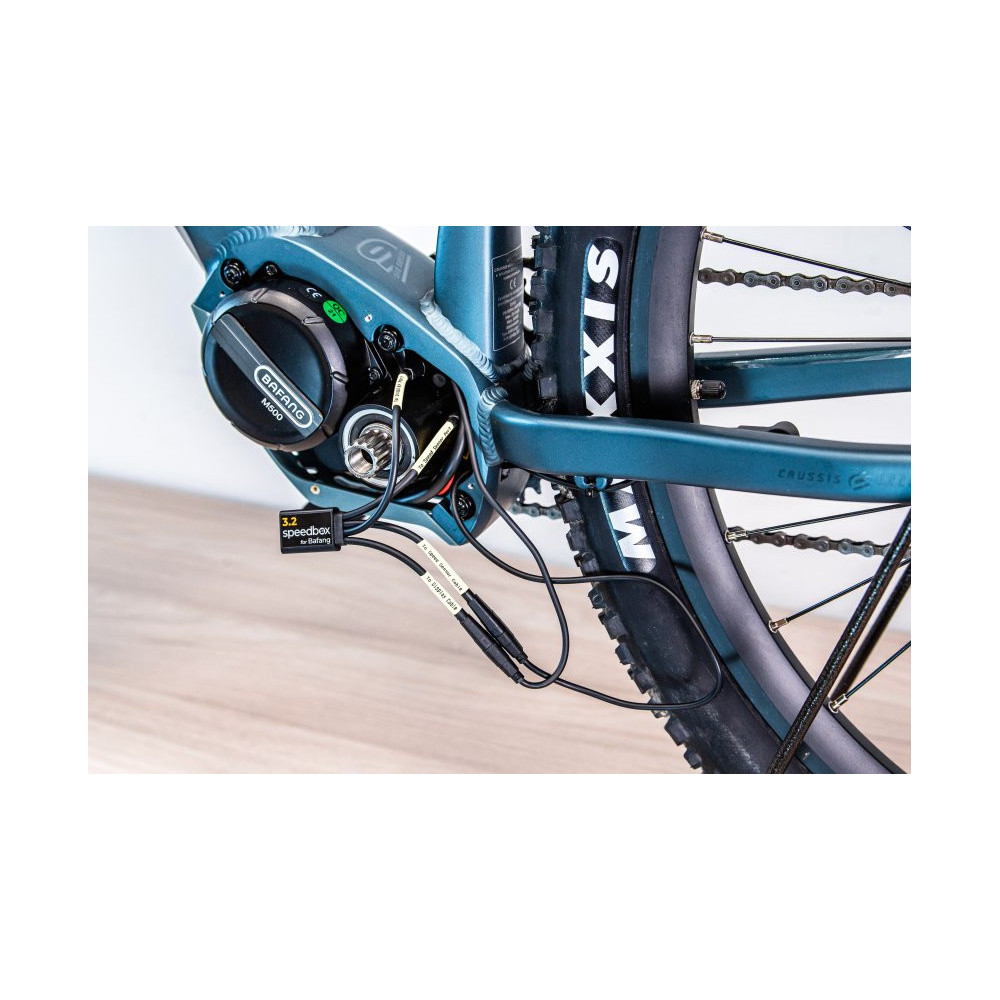

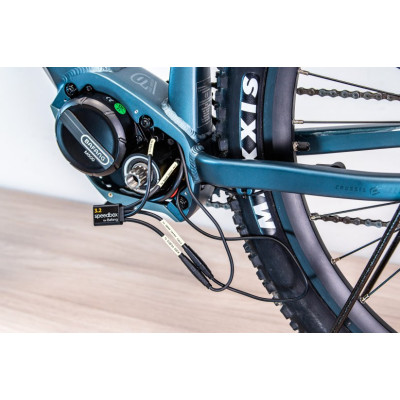

- installation directly in the engine compartment

Weight: 25g

FEATURES:

Chip activation: with the LIGHT button / + - + -

Maximum speed: no limit

Speed limiter setting: yes

Display: real values

Compatible with engines:

Bafang Max Drive M200

Bafang Max Drive M410

Bafang Max Drive M500

Bafang Max Drive M510

Incompatible with:

SpeedBox App

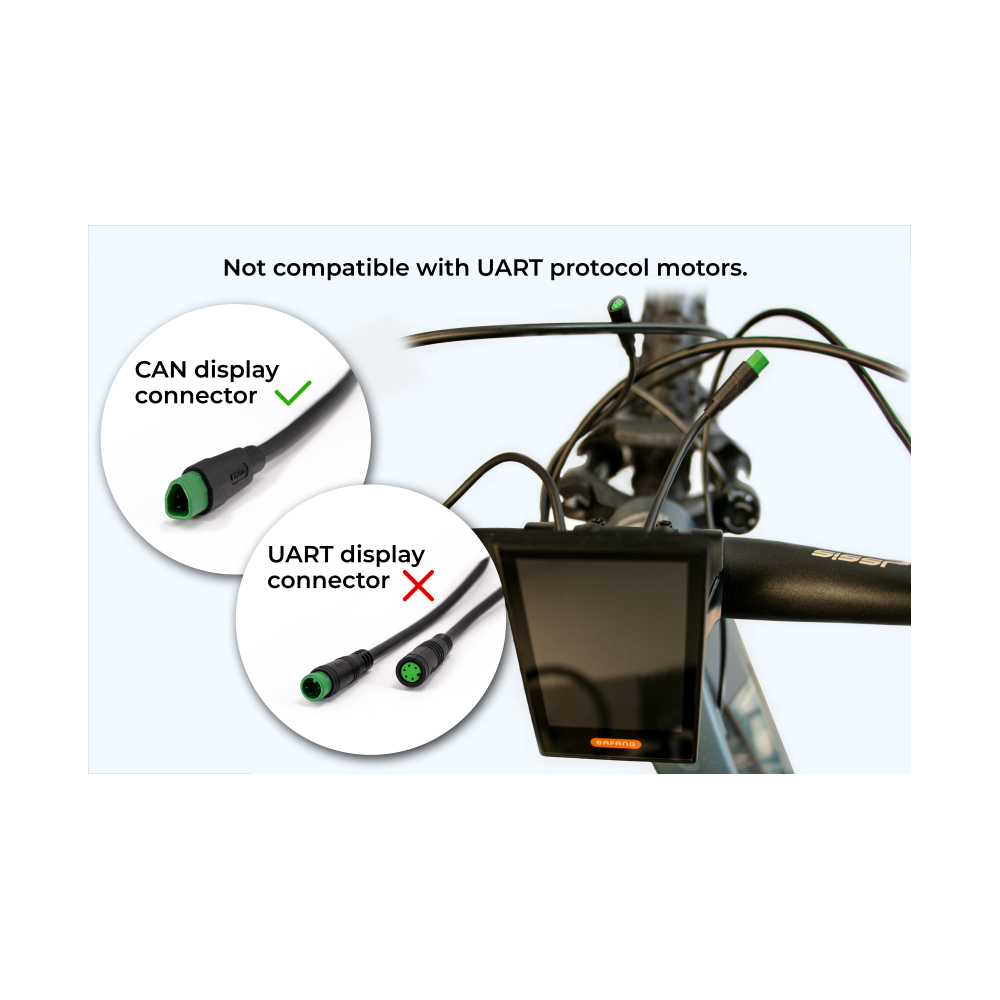

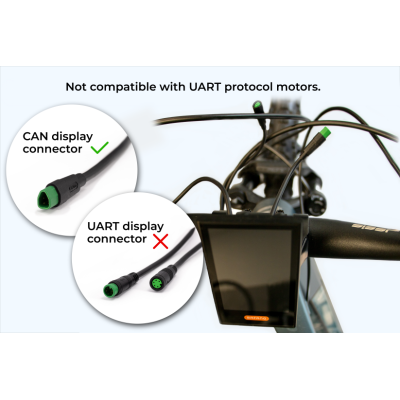

Display with UART connector

Bafang Max Drive M300

Bafang Max Drive M400

Bafang Max Drive M420

Smart product of the third generation with the possibility of setting the speed limit of the e-bike.

SpeedBox 3.2 allows any setting of the e-bike speed limiter. After installing the tuning, real data such as maximum speed, average speed, daily distance traveled or range are displayed on the e-bike display.

How does SpeedBox 3.2 work?

You can activate the SpeedBox 3.2 tuning on the e-bike display. After pressing the LIGHT button or the combination of the + - + - buttons, the value 99 km/h (62 mph) will briefly appear on the display, and from that moment you can drive at an unlimited speed.

You can turn off the tuning function by pressing the LIGHT or + - + - button again. The display shows the value 25 km/h (16 mph) and the speed limit of 25 km/h is switched on again. The electric bike then works the same as before the installation of the tuning.

You can adjust the maximum speed by gradually switching the modes three levels down and then three levels up. Then the display shows the current speed limit. You can switch the maximum assistance speed by briefly pressing the LIGHT button or turning the rear wheel 360°. The last displayed limit is saved after five seconds of inactivity.

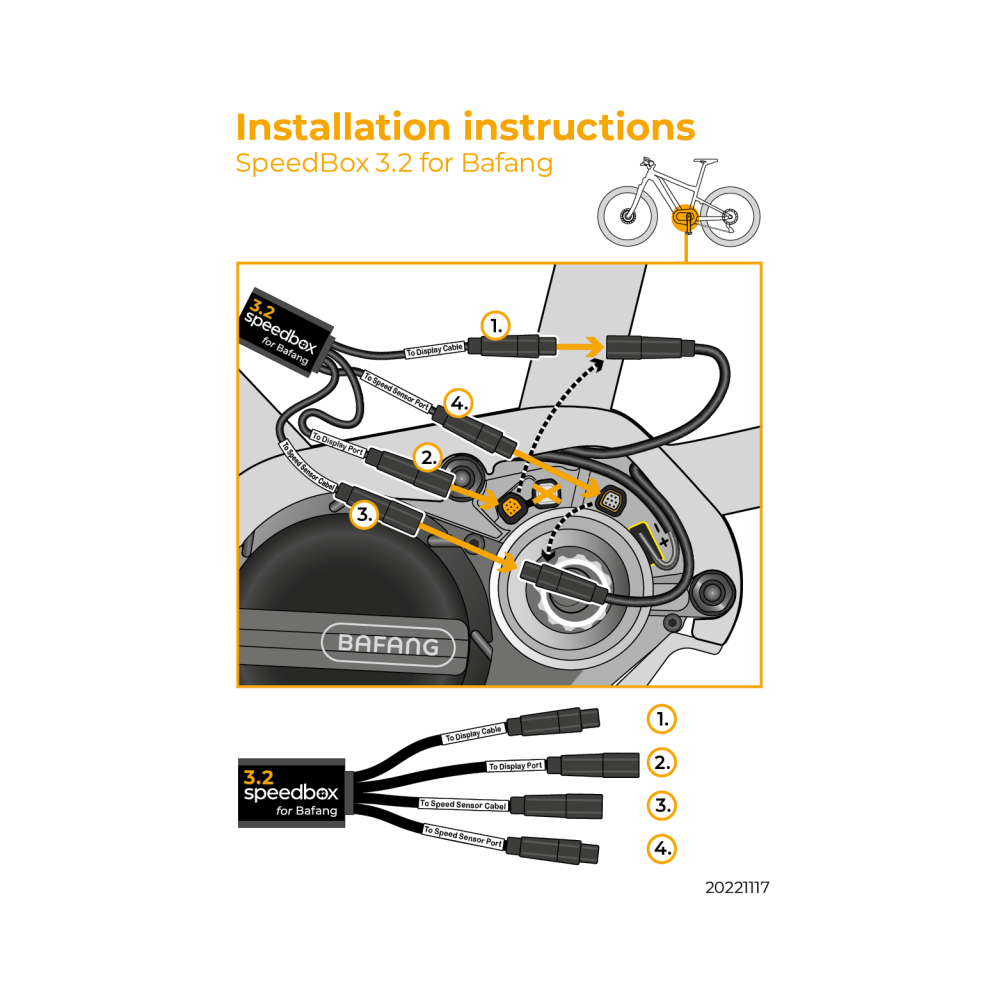

Assembly

To connect the SpeedBox chip to the e-bike, we use colored connectors equipped with a key proper connection, therefore the installation of the tuning is really simple. We have written detailed instructions and filmed videos, thanks to which each customer can install the SpeedBox by himself. Dismantling the tuning chip is as easy as mounting it. If you have any problem with connection, do not hesitate to contact us.

If you are going to install the SpeedBox on a completely new bike, you need to ride it for at least 10 km before activating the tuning for the first time.

Detailed information on installation can be found here.

WARNING

Operating an electric bicycle equipped with a chip to remove the speed limit may be illegal in some countries. An electric bicycle equipped with a Chip loses the status of a bicycle according to EN15194:2017, therefore its operation may not be in accordance with the applicable legislation for the operation of electric bicycles on roads (including roads intended exclusively for cyclists and pedestrians). Installing the Chip may result in the loss of the warranty on the drive or bicycle. The manufacturer or seller is not liable for any damage to health or life or property. Use at your own risk.

LIFETIME WARRANTY

It relates to the functionality and compatibility of the chip on the current and previous firmware of the drive at the time of sale. The warranty does not apply to the chip becoming inoperable after a later update of the drive, with which the chip may no longer be compatible!

WARNING BEFORE UPDATING

Before visiting the service center, it is necessary to physically remove the Chip from the drive! The Chip manufacturer does not recommend updating the drive. If using a mobile application (e.g. Ebike flow), turn off automatic updates. If this is not necessary, please always consider updating the drive. Each update contains improved anti-tuning software that can detect the Chip and disable the Chip or temporarily block the drive (Emergency mode / Limbo mode). In such a case, we recommend removing the Chip and checking the functionality of the drive.
If the drive works without removing the Chip (i.e. the Chip is defective), contact us with an exact description of the bike and the situation. If the problem persists (i.e. the drive itself is defective, not the Chip), please visit your bike dealer.
