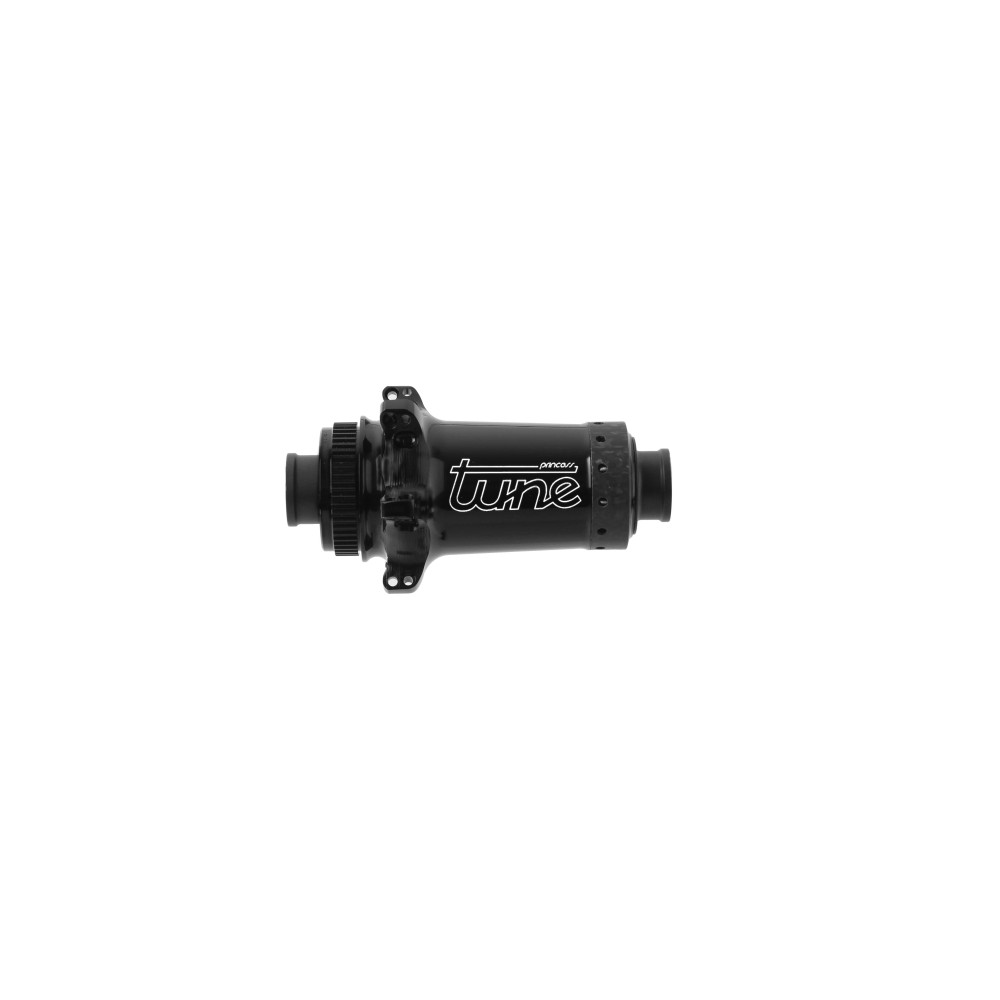

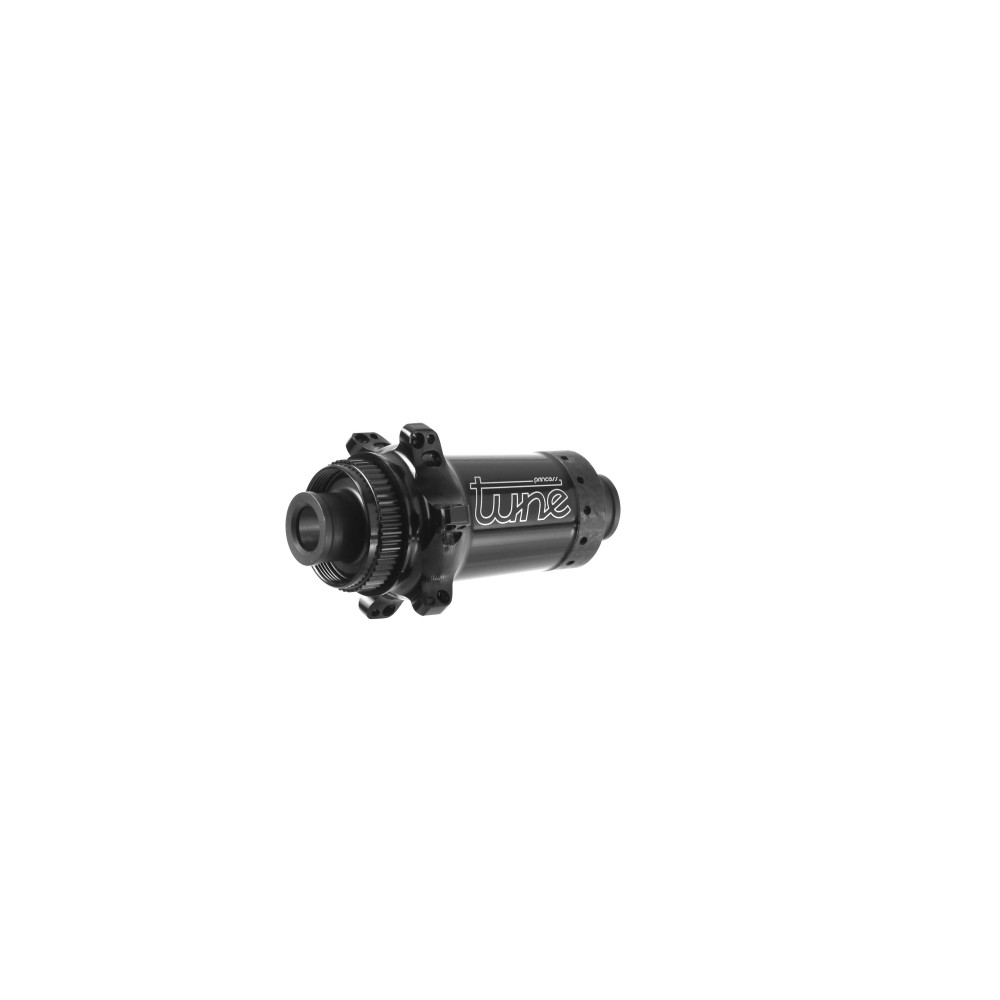

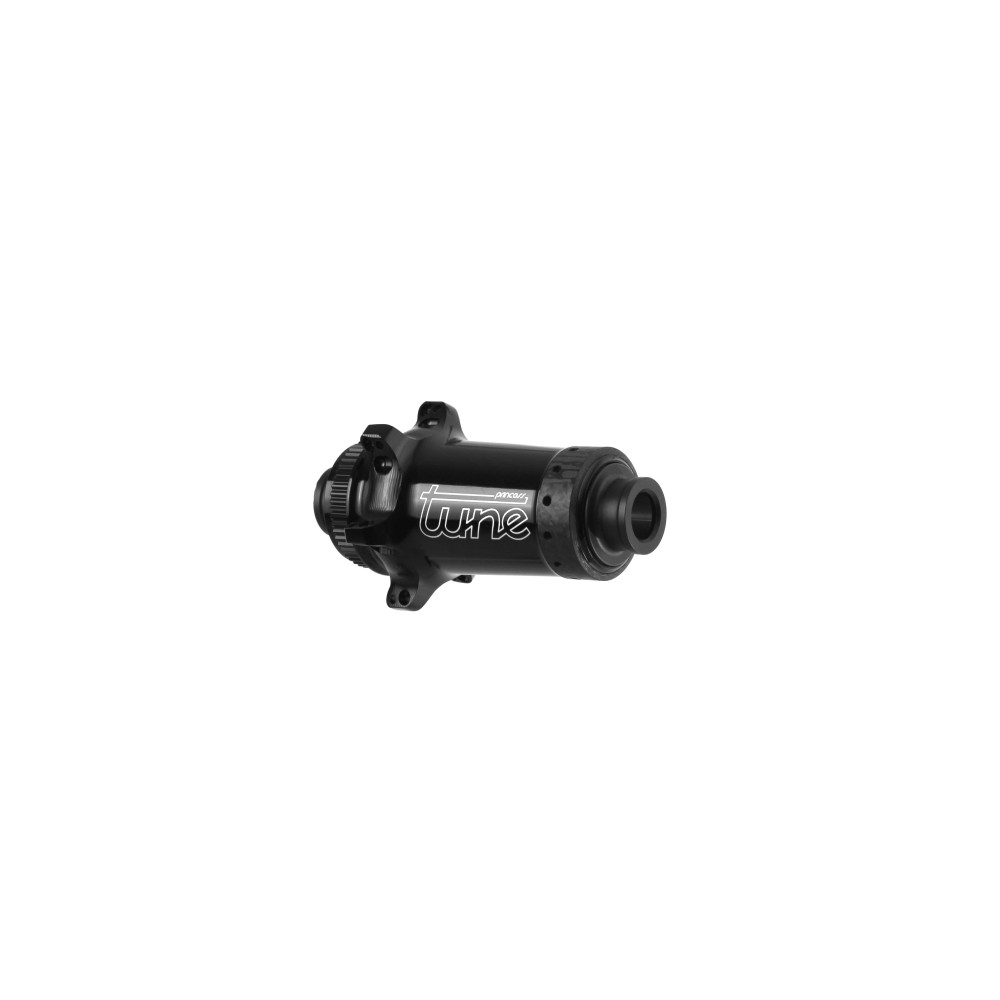

Tune Princess Skyline Front Hub

Custom manufacturing! These are goods made according to specific consumer requirements. More info HERE

Premium lightweight hub made in Germany, available in 7 colors - anodized finishes

Class: Skyline

Use: XC

Weight: 81g

Custom manufacturing! More info about TUNE!

TUNE products are custom-made in the Black Forest (Germany), the center of German engineering. CNC machined from aircraft-grade aluminum, hand-pressed bearings. Production time 1-2 weeks.

Technical specifications:

Colors: available in all Tune anodized colors
Max. Rider weight: 90kg
Max. System weight: 105kg
Weight: 81.8g/15X100mm-centerlock_ 86.2g/15X100mm-6Bolt_ 83.2g/15X110mm-centerlock_ 87.6g/15X110mm-6Bolt
Hub hole count: 28 or 32 holes for radial pattern on the right side and 3-cross pattern on the left side
Max Spoke Tension: 1100N
Axle type: available in 5mmX100mm/ 12X100mm/ 15mmX100mm/ 15mmX110/ with Aluminum Endcaps TorqueCaps-15mmX110mm with Carbon Endcaps
Bearing Type: standard on the right-side and ceramic on the left-side
Brake Interface: available in Centerlock and 6-Bolt for 5mm, 12mm and 15mm axles and 6-Bolt only for TorqueCaps
Dimensions
axle type: 100mm
Flange distance left: 21.8mm
Flange distance right: 32.4mm
Pitch circle left: 51.6mm
Pitch circle right: 28.2mm
Offset spoke hole left: 1.5mm
Offset spoke hole right:_

axle type: 110mm
Flange distance left: 26.6mm
Flange distance right: 37.6mm
Pitch circle left: 51.6mm
Pitch circle right: 28.2mm
Offset spoke hole left: 1.5mm
Offset spoke hole right:_

MADE IN GERMANY
