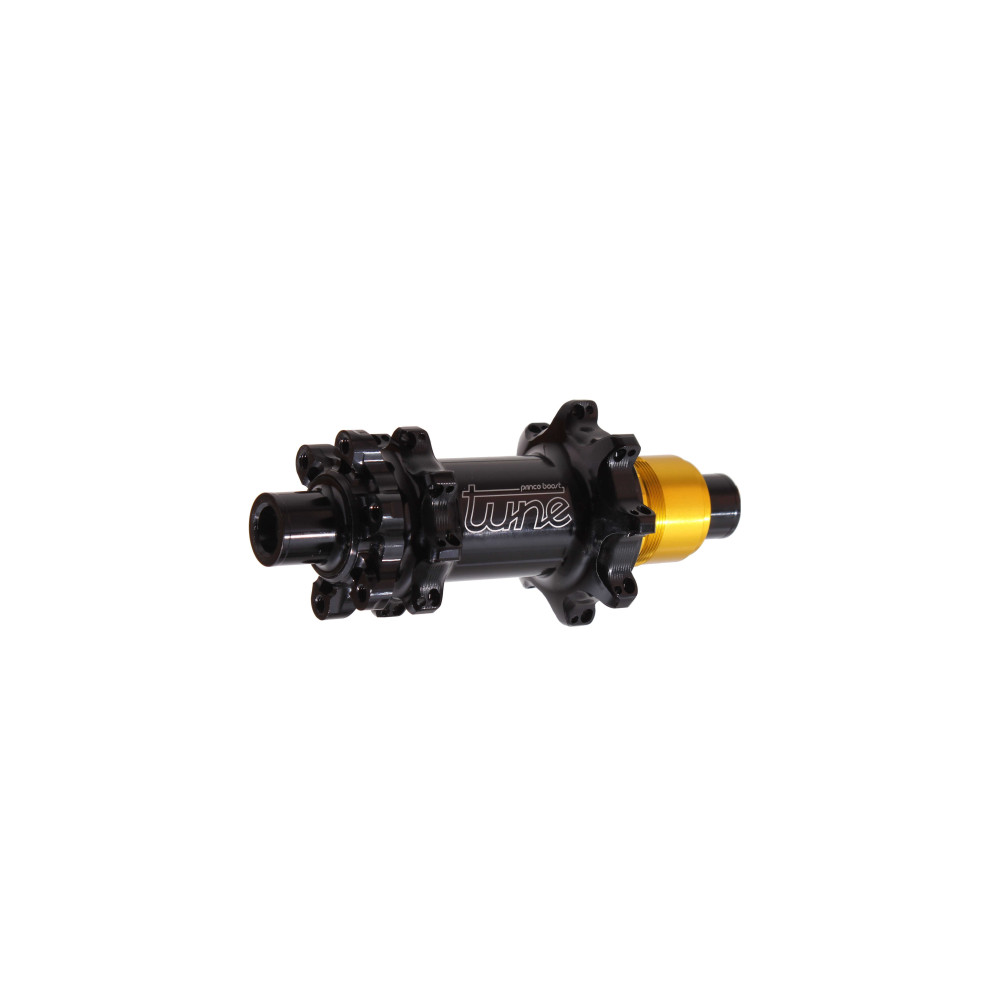

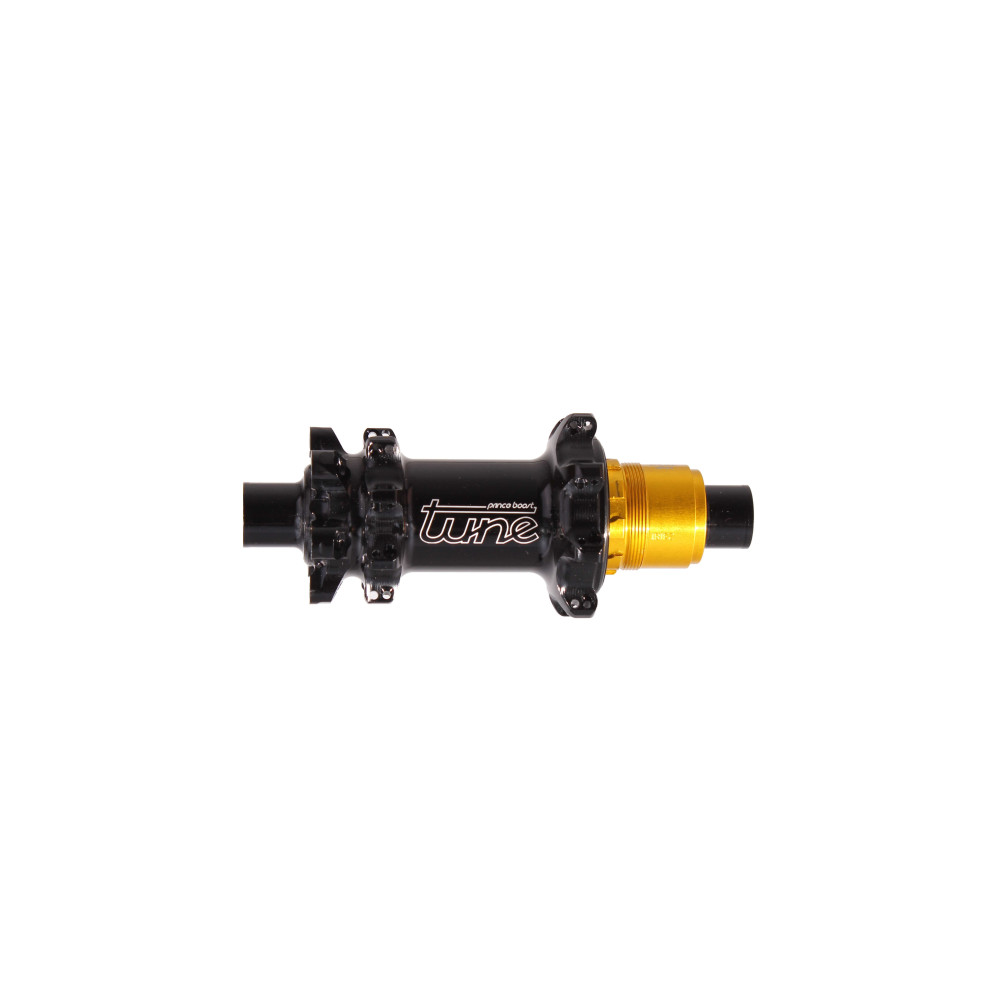

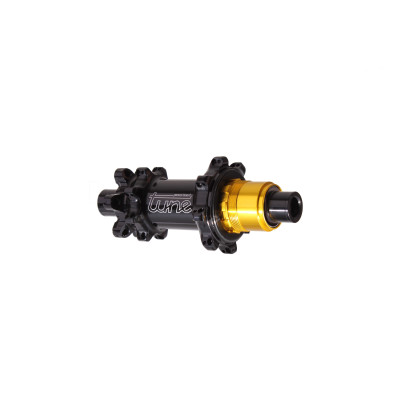

Tune Prince Endurance Rear Hub

Custom manufacturing! These are goods made according to specific consumer requirements. More info HERE

Premium lightweight hub made in Germany, available in 7 colors - anodized finishes

Class: Endurance

Use: XC

Weight: 203g

Custom manufacturing! More info about TUNE!

TUNE products are custom-made at the Black Forest (Germany) German engineering center. CNC machining from aircraft-grade aluminum, hand-pressed bearings. Production time 1-2 weeks.

Technical specifications:

Colors: available in all Tune anodized colors
Max. Rider weight: 90kg
Max. System weight: 105kg
Weight: 210.0g/12X148mm-6 bolt_205.6g/12X148mm-centerlock_ 207.6g/12X142mm-6 bolt_ 203.2g/12X142mm-Centerlock
Hub hole count: 28 or 32 for 3-cross pattern
Max Spoke Tension: 1100N
Axle type: available in 5mmX135mm /12mmX142mm /12X148mm with Aluminum Endcaps
Bearing Type: standard on the right-side and double sealed Endurance on the left-side
Freewheel types: 3Teeth Titanium Technology reinforced Endurance
Freewheel standard: available with XD, XDR, Shimano HG10 or Shimano HG11
Brake Interface: available in Centerlock and in 6-Bolt for 5mm, 12mm axles

Dimensions
for axle type: 135mm and 142mm
Flange distance left: 31.7mm
Flange distance right: 19.7mm
Pitch circle left: 47mm
Pitch circle right: 57mm
Offset spoke hole left: 1.5mm
Offset spoke hole right: 1.5mm
Dimensions
for axle type: 148mm
Flange distance left: 35.0mm
Flange distance right: 22.4mm
Pitch circle left: 47mm
Pitch circle right: 57mm
Offset spoke hole left: 1.5mm
Offset spoke hole right: 1.5mm

MADE IN GERMANY
