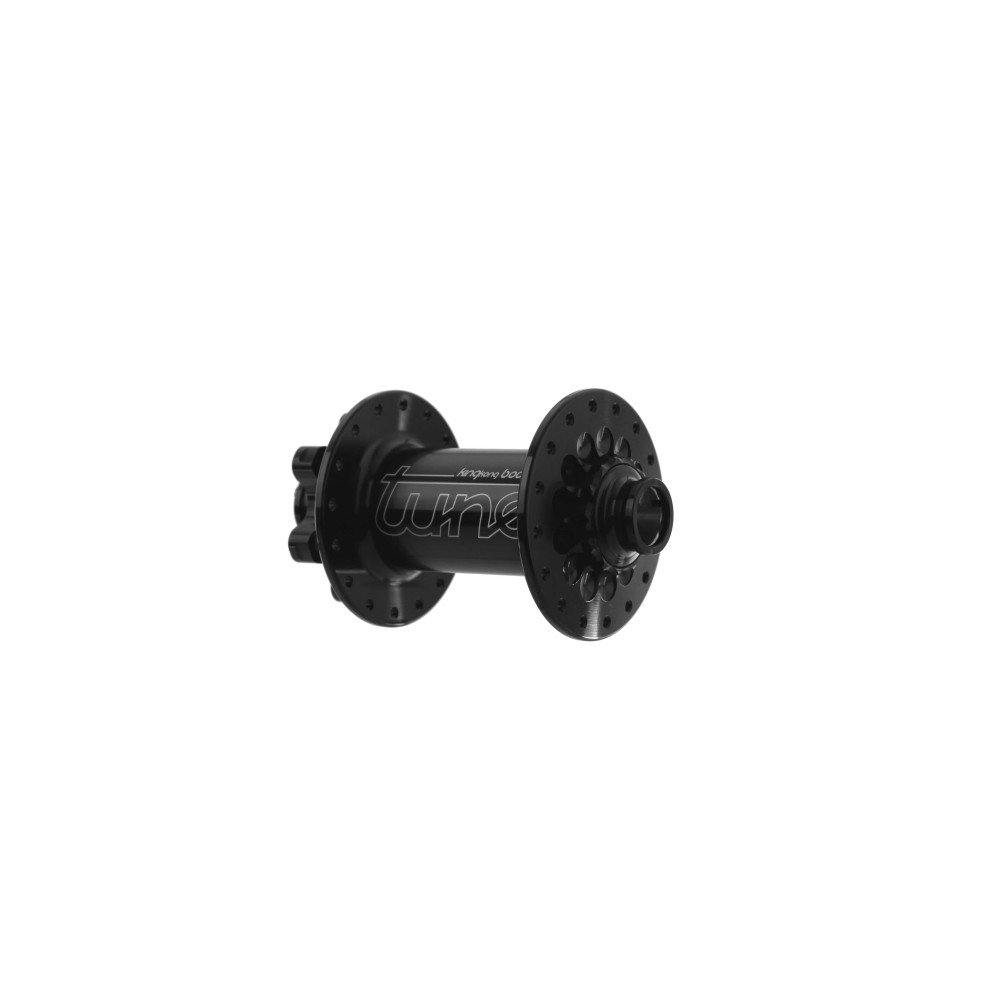

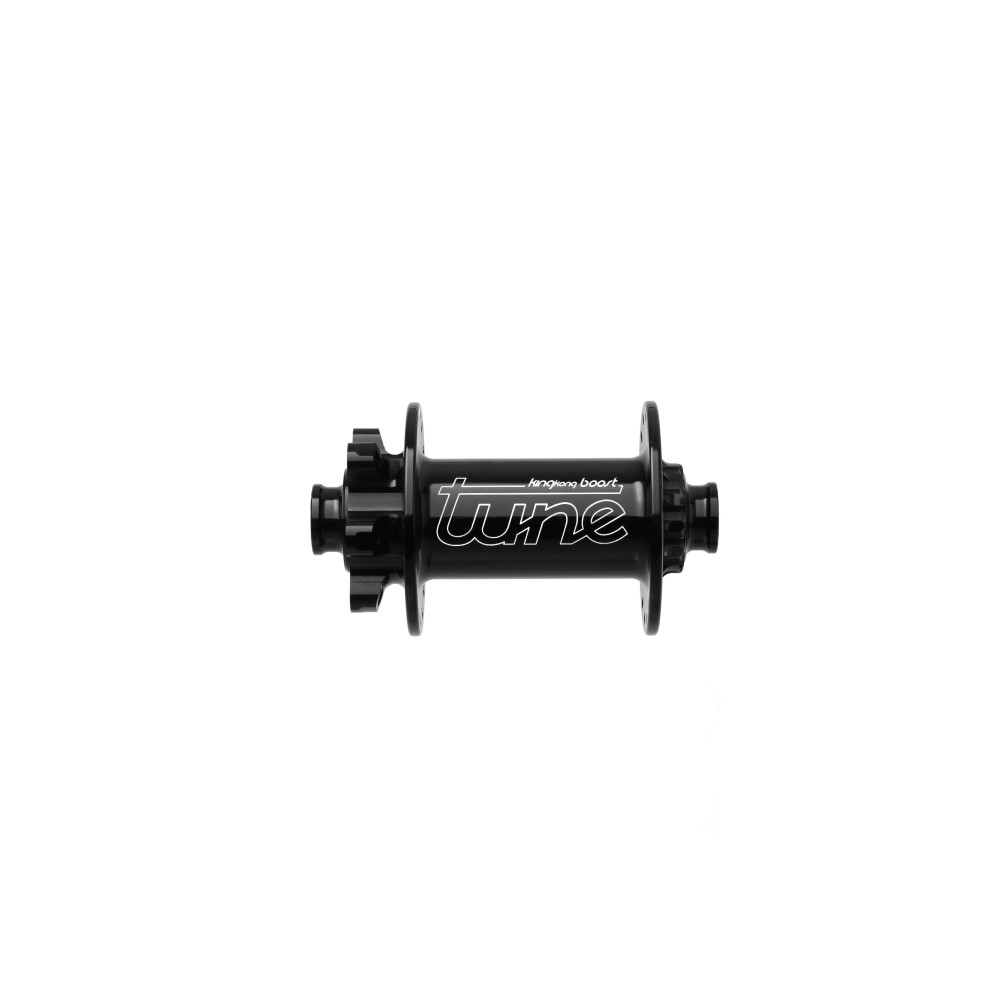

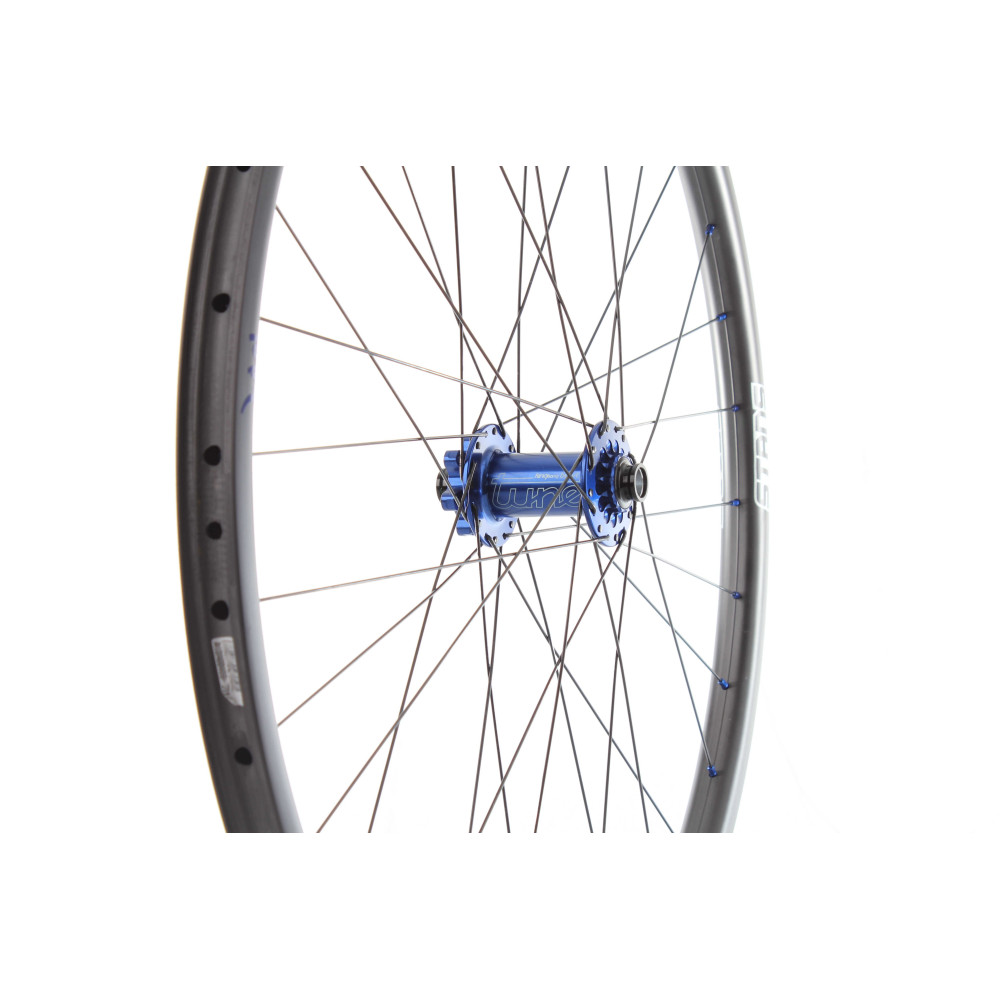

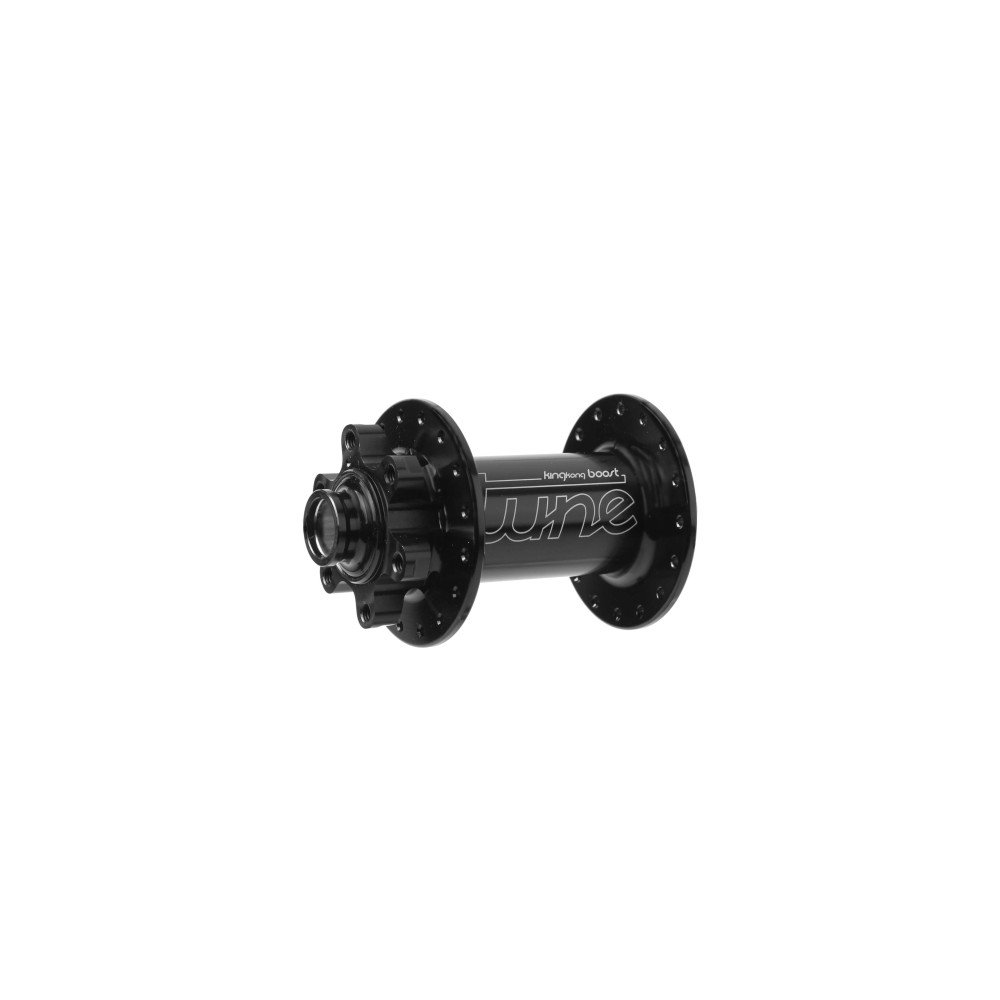

Tune KillHill 15x110mm Boost 32h Front Hub

Custom manufacturing! These are goods made according to specific consumer requirements. More info HERE

Premium lightweight hub made in Germany, available in 7 colors - anodized finishes

Class: Standard

Use: Gravel, MTB, XC, All Mountain, Trail, Enduro

Weight: 123g

Custom manufacturing! More info about TUNE!

TUNE products are custom-made at the Black Forest (Germany) center of German engineering. CNC machining from aircraft-grade aluminum, hand-pressed bearings. Production time 1-2 weeks.

Technical specifications:

Colors: available in all Tune anodized colors
Max. Rider weight: 100kg
Max. System weight: 115kg
Weight: 117.7g/15X100mm-centerlock_ 122.1g/15X100mm-6Bolt_ 119.1g/15X110mm-centerlock_ 123.5g/15X110mm-6Bolt
Hub hole count: 28 or 32 for 3-cross pattern
Max Spoke Tension: 1100N
Axle type: available in 5mmX100mm/ 12X100mm/ 15mmX100mm/ 15mmX110/ with Aluminum Endcaps TorqueCaps-15mmX110mm with Carbon Endcaps
Bearing Type: standard
Brake Interface: available in Centerlock and 6-Bolt for 5mm, 12mm and 15mm axles and 6-Bolt only for TorqueCaps
Dimensions
for axle type: 110mm
Flange distance left: 27.4mm
Flange distance right: 37.0mm
Pitch circle left: 55.5mm
Pitch circle right: 55.5mm
Dia. spoke hole: 2.4mm

MADE IN GERMANY
