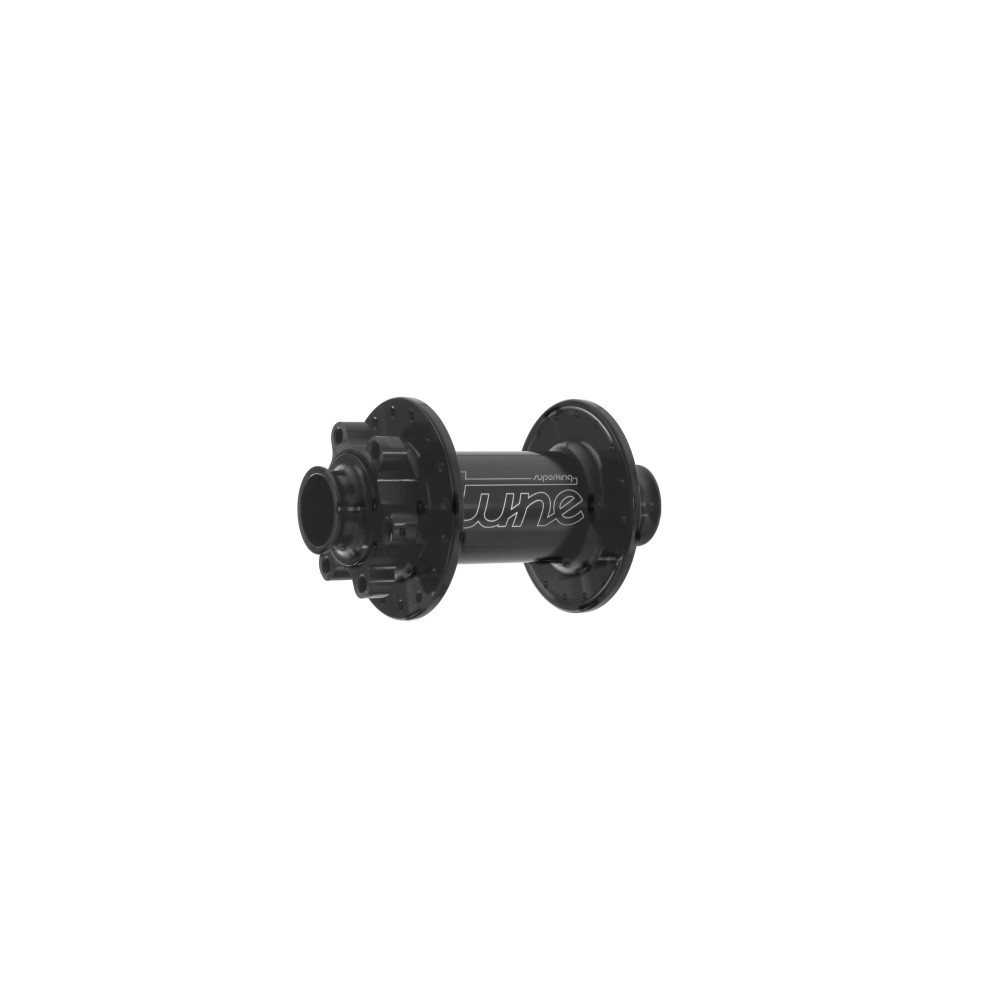

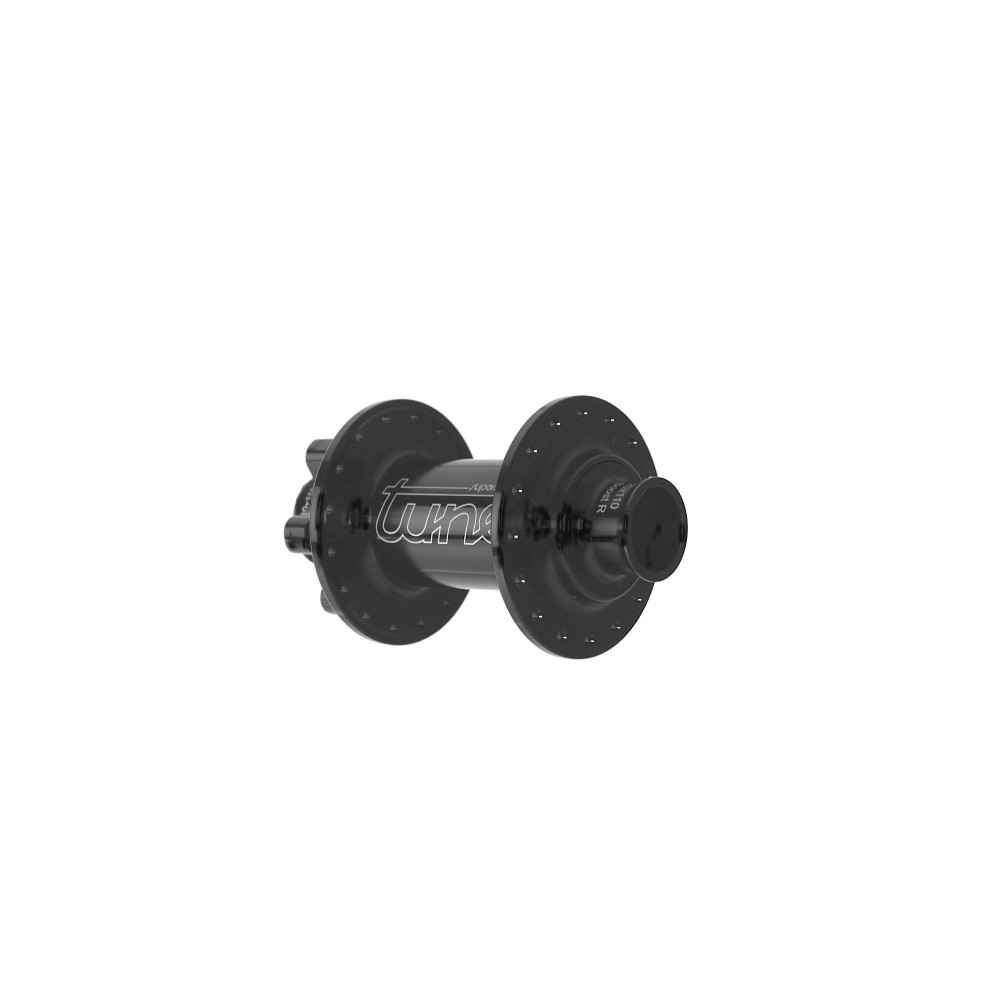

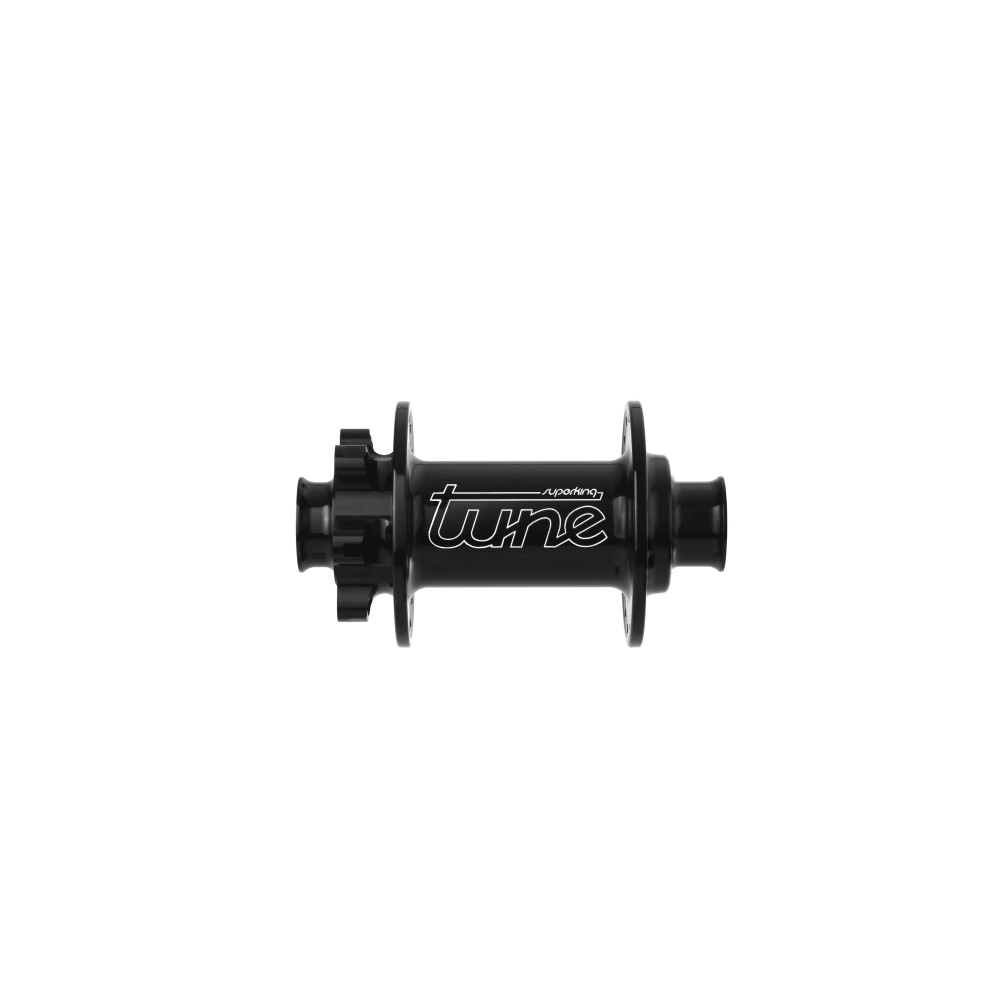

Tune SuperKillHill 20x110mm Boost 32h Front Hub

Custom manufacturing! These are goods made according to specific consumer requirements. More info HERE

Premium lightweight hub made in Germany, available in 7 colors - anodized finishes

Class: Standard

Use: All Mountain, Trail, Enduro, Downhill

Weight: 146g

Custom manufacturing! More info about TUNE!

TUNE products are custom-made at the Black Forest (Germany) German engineering center. CNC machining from aircraft aluminum, hand-pressed bearings. Production time 1-2 weeks.

Technical specifications:

Colors: available in all Tune anodized colors
Max. Rider weight: 105kg
Max. System weight: 120kg
Weight: 146.0g/20X110mm-6 Bolt_ 146.5g/20X110mm BOOST-6 Bolt
Hub hole count: 32 for 3-cross pattern
Max Spoke Tension: 1100N
Axle type: available in 20mmX110mm/ 20X110mm_Boost
Bearing Type: oversized 20mm internal bearings
Brake Interface: available in 6-Bolt for 20mm axles
Dimensions
for axle type: 20X110mm BOOST
Flange distance left: 28.7mm
Flange distance right: 31.2mm
Pitch circle left: 55.5mm
Pitch circle right: 55.5mm
Dia. spoke hole: 2.4mm

MADE IN GERMANY
