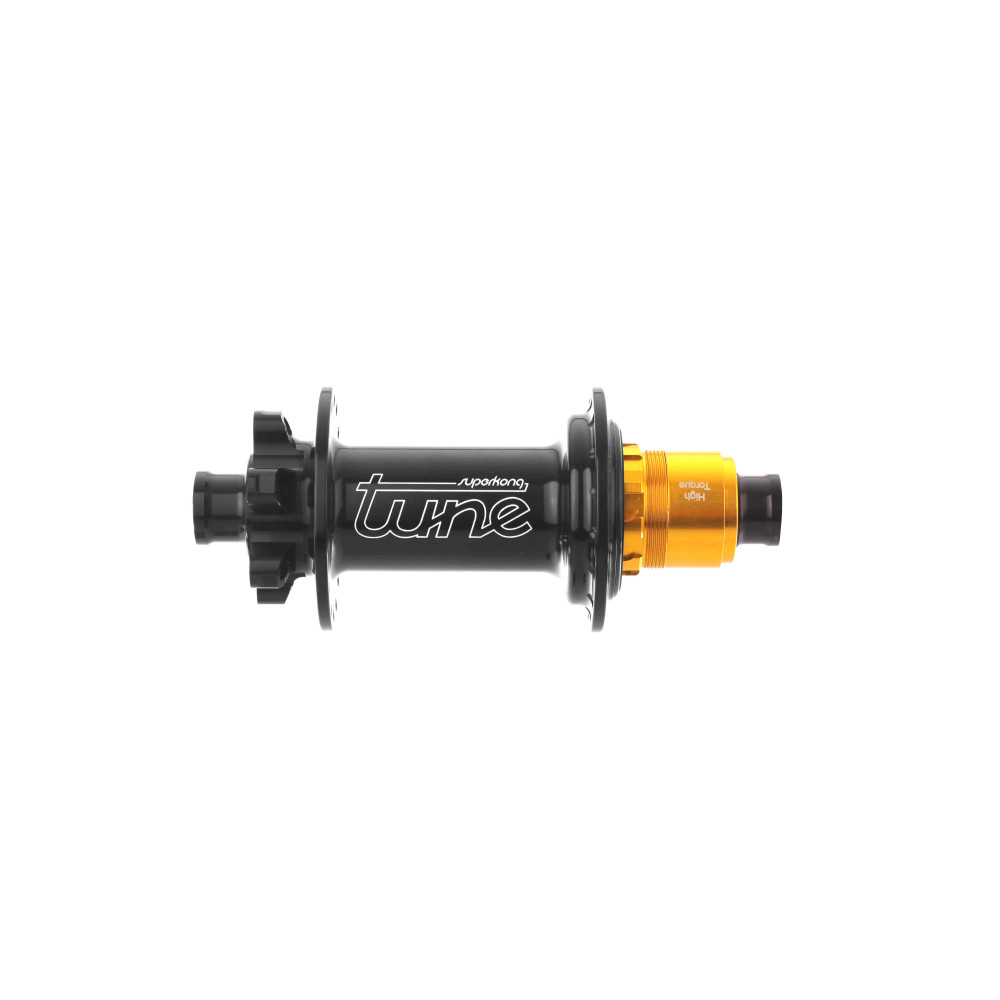

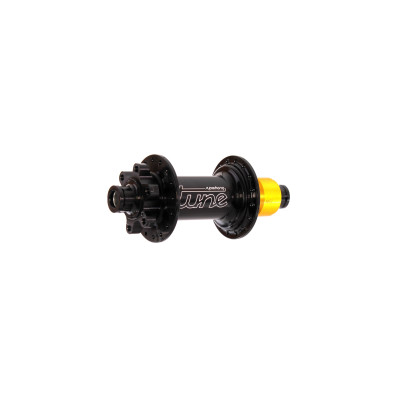

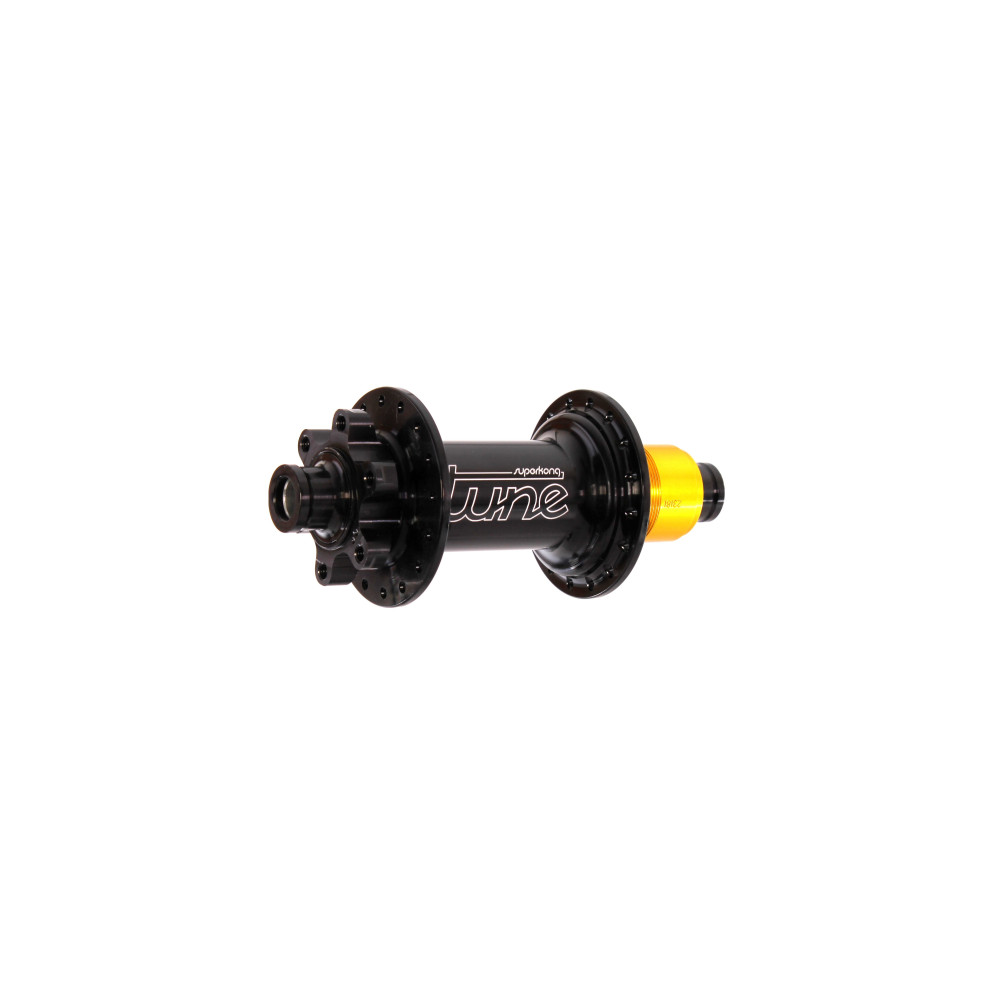

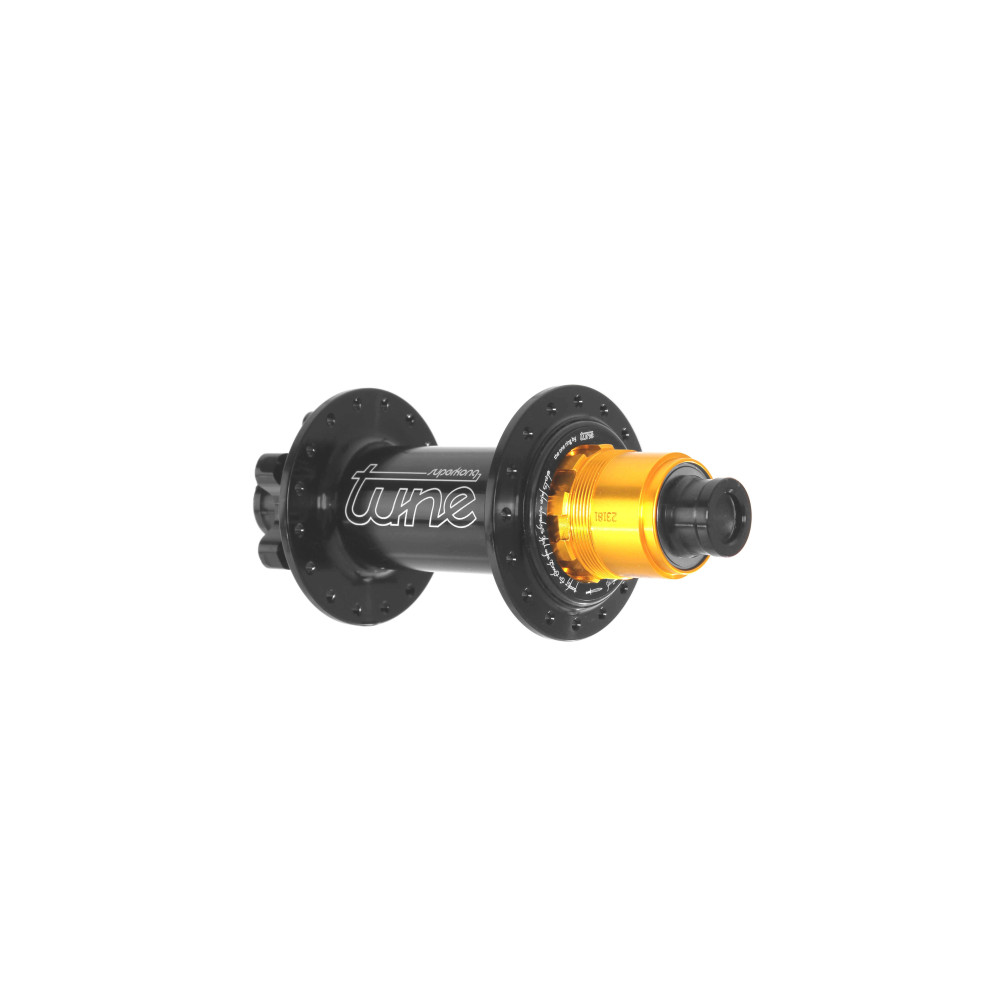

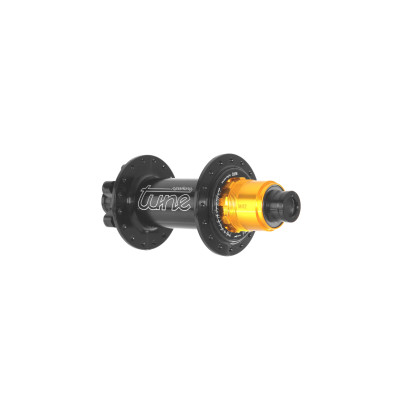

Tune SuperClimbHill Endurance 12x157mm 32h Rear Hub

Custom manufacturing! These are goods made according to specific consumer requirements. More info HERE

Premium lightweight hub made in Germany, available in 7 colors - anodized finishes

Class: Endurance

Use: All Mountain, Trail, Enduro, Downhill

Weight: 236g

Custom manufacturing! More info about TUNE!

TUNE products are custom-made at the Black Forest (Germany) German engineering center. CNC machining from aircraft aluminum, hand-pressed bearings. Production time 1-2 weeks.

Technical specifications:

Colors: available in all Tune anodized colors
Max. Rider weight: 105kg
Max. System weight: 120kg
Weight: 231.7g in 12X150mm-6 bolt_ 235.6g in 12X157mm-6 Bolt
Hub hole count: 32 for 3-cross pattern
Max Spoke Tension: 1100N
Axle type: available in 12mmX150mm /12mmX157mm with Aluminium Endcaps
Bearing Type: standard on the right-side and double sealed Endurance on the left-side
Freewheel types: 3Teeth Titanium Technology reinforced Endurance
Freewheel standard: available with XD, Shimano HG10 or Shimano HG11
Brake Interface: available in 6-Bolt for 12mm axles

Dimensions
for axle type: 157mm
Flange distance left: 41.5mm
Flange distance right: 28.0mm
Pitch circle left: 55.5mm
Pitch circle right: 55.5mm
Dia. spoke hole: 2.4mm

MADE IN GERMANY
