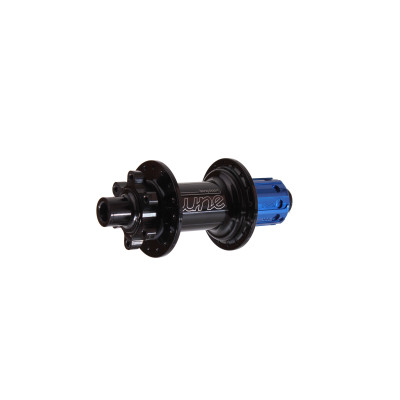

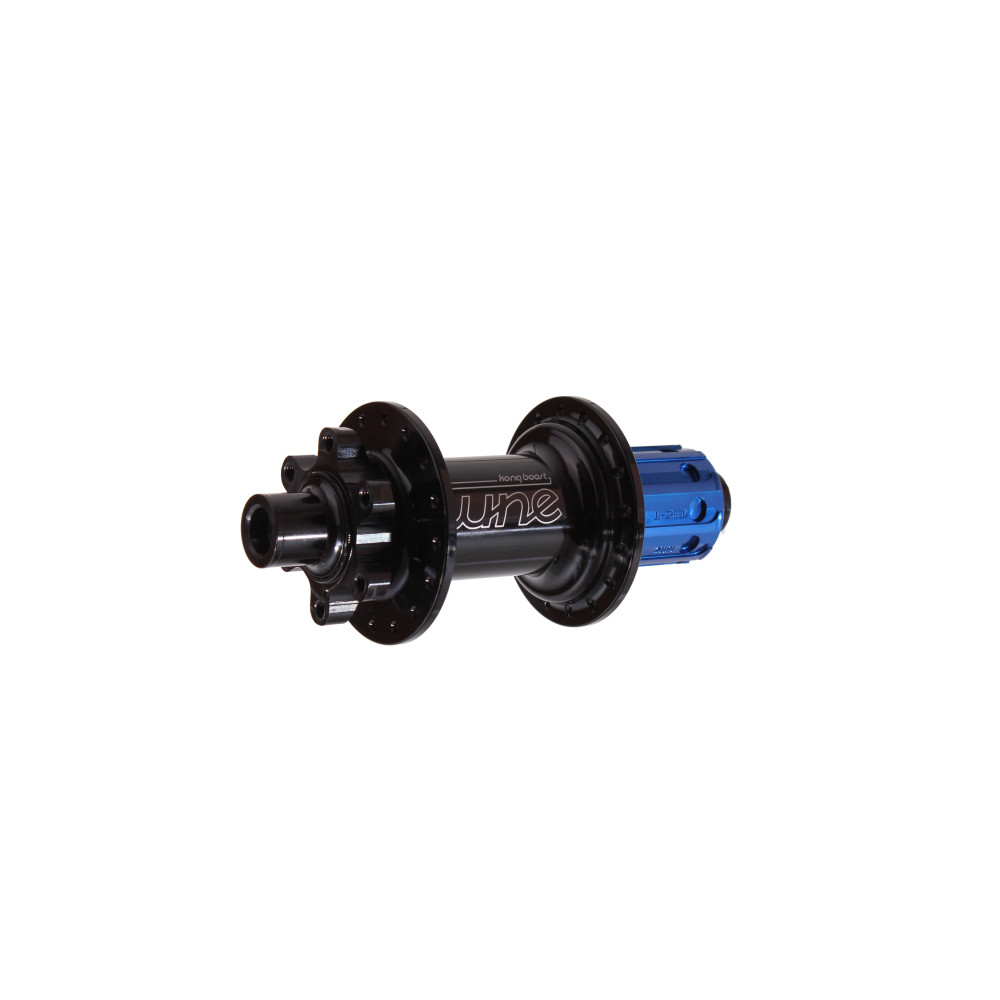

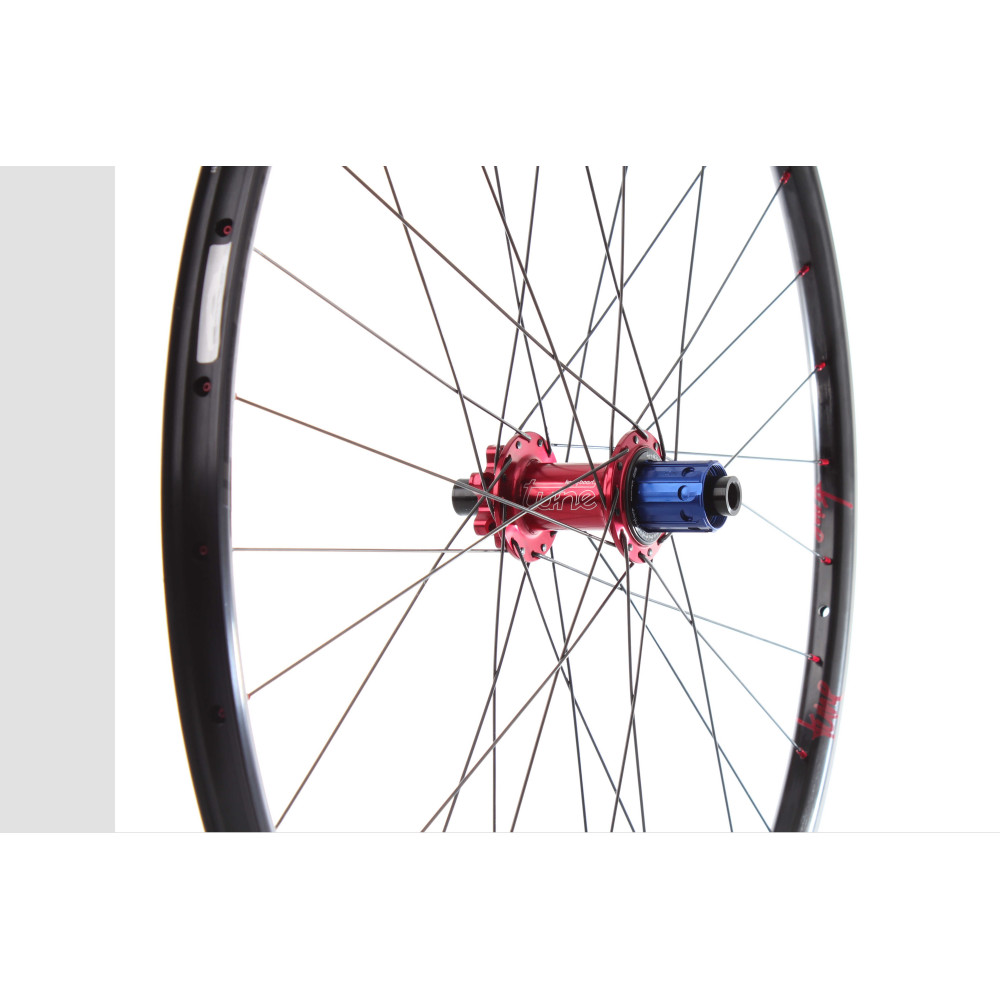

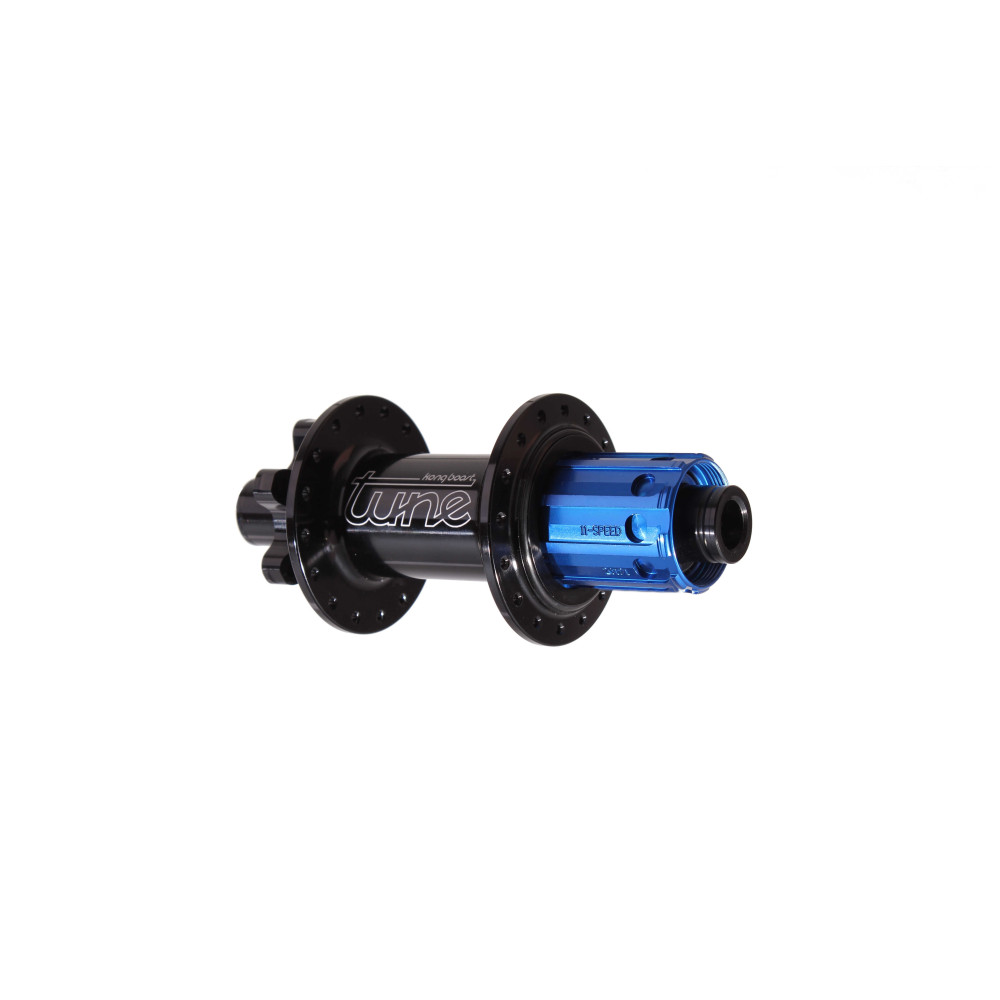

Tune ClimbHill Endurance 12x142mm 32h Rear Hub

Custom manufacturing! These are goods made according to specific consumer requirements. More info HERE

Premium lightweight hub made in Germany, available in 7 colors - anodized finishes

Class: Endurance

Use: Gravel, MTB, XC, All Mountain, Trail, Enduro

Weight: 228g

Custom manufacturing! More info about TUNE!

TUNE products are custom-made at the Black Forest (Germany) German engineering center. CNC machining from aircraft aluminum, hand-pressed bearings. Production time 1-2 weeks.

Technical specifications:

Colors: available in all Tune anodized colors
Max. Rider weight: 100kg
Max. System weight: 115kg
Weight: 230.7g/12X148mm-6 bolt_ 226.3g/12X148mm-centerlock_ 228.3g/12X142mm-6 bolt_ 223.9g/12X142mm-Centerlock
Hub hole count: 28 or 32 for 3-cross pattern
Max Spoke Tension: 1100N
Axle type: available in 5mmX135mm /12mmX142mm /12X148mm with Aluminum Endcaps
Bearing Type: standard on the right-side and double sealed Endurance on the left-side
Freewheel types: 3Teeth Titanium Technology reinforced Endurance
Freewheel standard: available with XD, XDR, Shimano HG10 or Shimano HG11
Brake Interface: available in Centerlock and in 6-Bolt for 5mm, 12mm axles

Dimensions
for axle type: 135mm and 142mm
Flange distance left: 34.2mm
Flange distance right: 20.8mm
Pitch circle left: 55.5mm
Pitch circle right: 55.5mm
Dia. spoke hole: 2.4mm

MADE IN GERMANY
