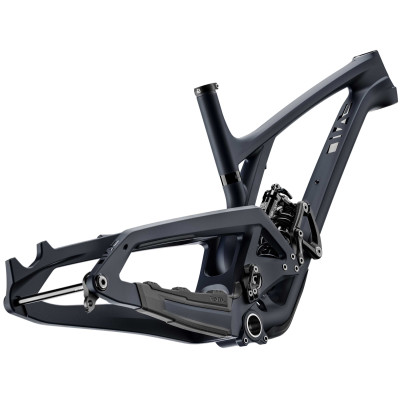

Frame Evil INSURGENT LS SPACE BOT Frame 168mm

evil-NSUR08-C
€3,199.00
Tax included
€3,999.00 Save €800.00
Veľkosť: L
Quantity
On request

EVIL INSURGENT MX / 27.5" Full carbon with 170/168mm travel falls into the SuperENDURO / GRAVITY category. Also known as an enduro downhill bike (possibility of installing a double-crown fork up to 190mm), it can handle the most demanding trails with the biggest jumps (Also ridden on RedBull Rampage @KurtSorge). It can be ridden as a Mullet (29" front, 27.5" rear) or as a full-fledged 27.5", which is most useful in bike parks with big jumps, including dirt, slopestyle and airline tracks.

AVAILABLE S, M and XL.

Optional choice of silencer:

  • ROCKSHOX SUPER DELUXE ULTIMATE COIL spring (+€0 / STANDARD)
  • FOX FLOAT X2 FACTORY air (+250€ / UPGRADE)
  • PUSH ELEVENSIX spring (+1000€ / UPGRADE)

MORE ABOUT ORDERING/CONFIGURATION/DELIVERY

GEOMETRY

LIFETIME WARRANTY

Included in the package:

  • frame
  • muffler
  • head composition
  • saddle clamp
  • chainstay protector
  • integrated chain guide (30-36z)

A Bike Park Battering Ram

The Insurgent LS is a rolling battering ram, pushing more travel than any current Evil model with a 168mm rear travel and 180mm up front. No matter how battered the bike park becomes, the Insurgent serves up rippin' laps and dusty grins.

The Insurgent LS is available as a mixed-wheel MX or full 27.5" platform. Smallwheels with a 180mm fork for mind-melting laps, or MX with a 170mm fork for added stability, steeper lines, and plowing downstream. 27.5" never died. It just quit caring what people think.

FAST OR FUN: YOUR CALL

The Insurgent LS is the most shape-shifty Evil to date, and no matter the configuration, it's built for the long haul. Sure, you can comfortably pedal it uphill, but gravity is the bullseye that this machine nails every time. With all the best bits of our Wreckoning platform, and a little something extra, the Insurgent will mop up your mistakes and crack open possibilities.

Even our best bikes can be improved and better shred-prepped. We've found a few dark elements to crank up the Insurgent's DH appetite. Alongside the fresh paint job, we've added SRAM's Universal Derailleur Hanger that's easily found at your local bike shop. If the tiny backwoods bike shop has any modern hanger in stock, it'll be this one.

Riding is always better than wrenching, and our engineers aim to reduce your garage time. We've heard the battle cries over trunnion shock spacers and responded by capturing them in the linkage, so you no longer have to fiddle and fumble when installing shocks.

To top off this bike park battering ram, Evil will offer a lifetime bearing warranty for Insurgent LS frames. Original owners can register their bikes on the Evil website. See our warranty site for more details to keep those pivots silky smooth.

In addition to our longest travel and slackest head tube, the Insurgent LS' 27.5” rear tire provides more tread-to-butt clearance for a lower gravity-stance than any of our other bikes. In addition to shaving grams, the smaller rear wheel gives the bike a touch more agility than our Wreckoning bruiser. Both builds eat trail all day, whether in the park or on rough race tracks, but the Insurgent leans a tad harder towards a daylong park party.

As with all of our models, the Insurgent LS uses Super Boost rear axle spacing and a wide main pivot to render that rear end stiff and flickable. When it's time to hold a line or land an “uh-oh” these stiff triangles have your back.

The remaining details include all the dark matter that lives in each of our creations: full internal cable routing, an integrated chain guide, and rubber sound-cancelling chain stay protectors.

AVAILABLE SIZES SMALL, MEDIUM, LARGE, XLARGE
Available Colors Space Bot
Wheel Travel 168mm
Rear Shock Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Shock Hardware Trunnion Upper, 20x8mm Lower
Fork Axle to Crown 577mm, Rockshox Zeb 180mm, 27.5" | 586mm, Rockshox Zeb 170mm, 29"
Fork Offset 44mm
Headtube Tapered 1 1/8" - 1 1/2"
Headset Works Components1 Degree Angleset
Seatpost Diameter 30.9mm
Seat clamp diameter 34.9mm
REAR WHEEL DIAMETER 27.5"
Maximum Rear Tire Size 27.5" x 2.6" (Varies By Brand)
Bottom Bracket Shell 73mm Threaded
Chainline 55mm-56.5mm
Chainguide Mount Evil Proprietary Upper, ISCG05 Lower
Maximum Chainring Size 36T Single Ring
Minimum Chainring Size 30T
Derailleur Hanger SRAM Universal Derailleur Hanger
Rear Wheel Spacing 157mm x 12mm
Brake Mount Type Post Mount 180mm
Maximum Rear Rotor Size 203mm

*AI generated translation*
