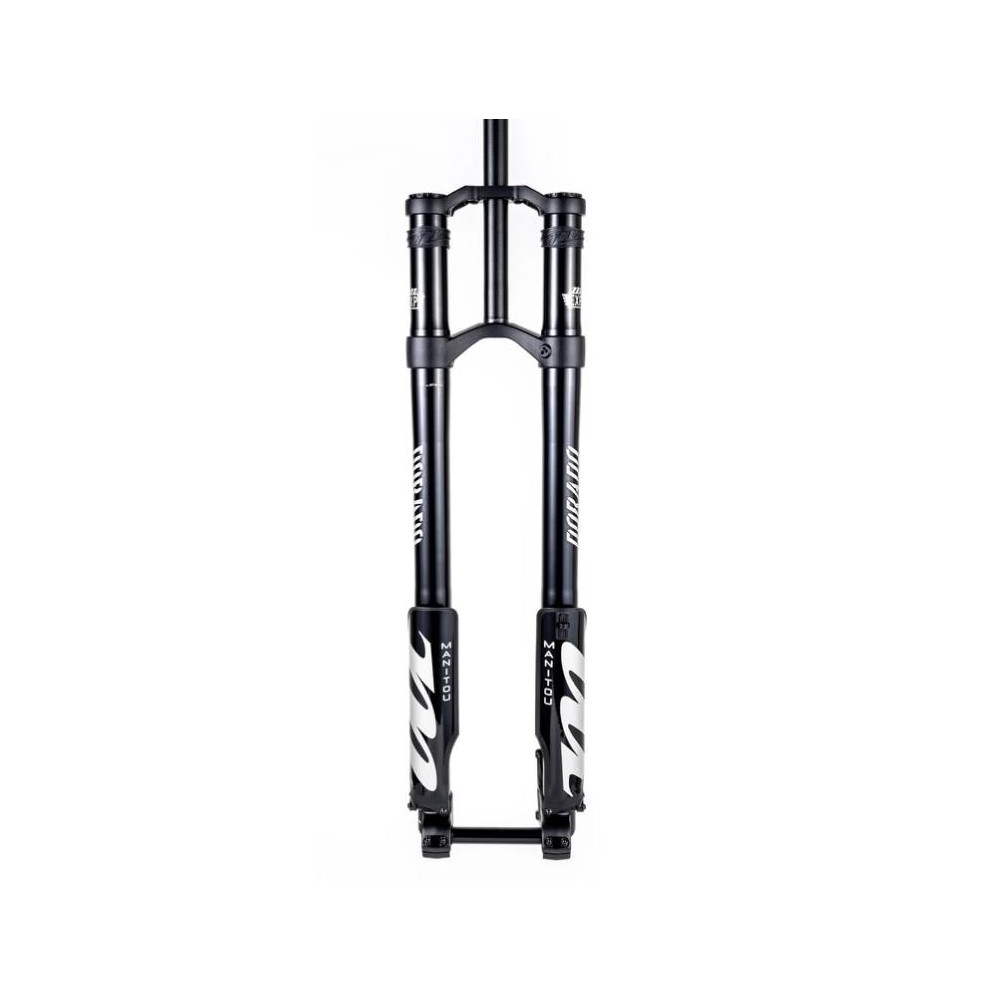

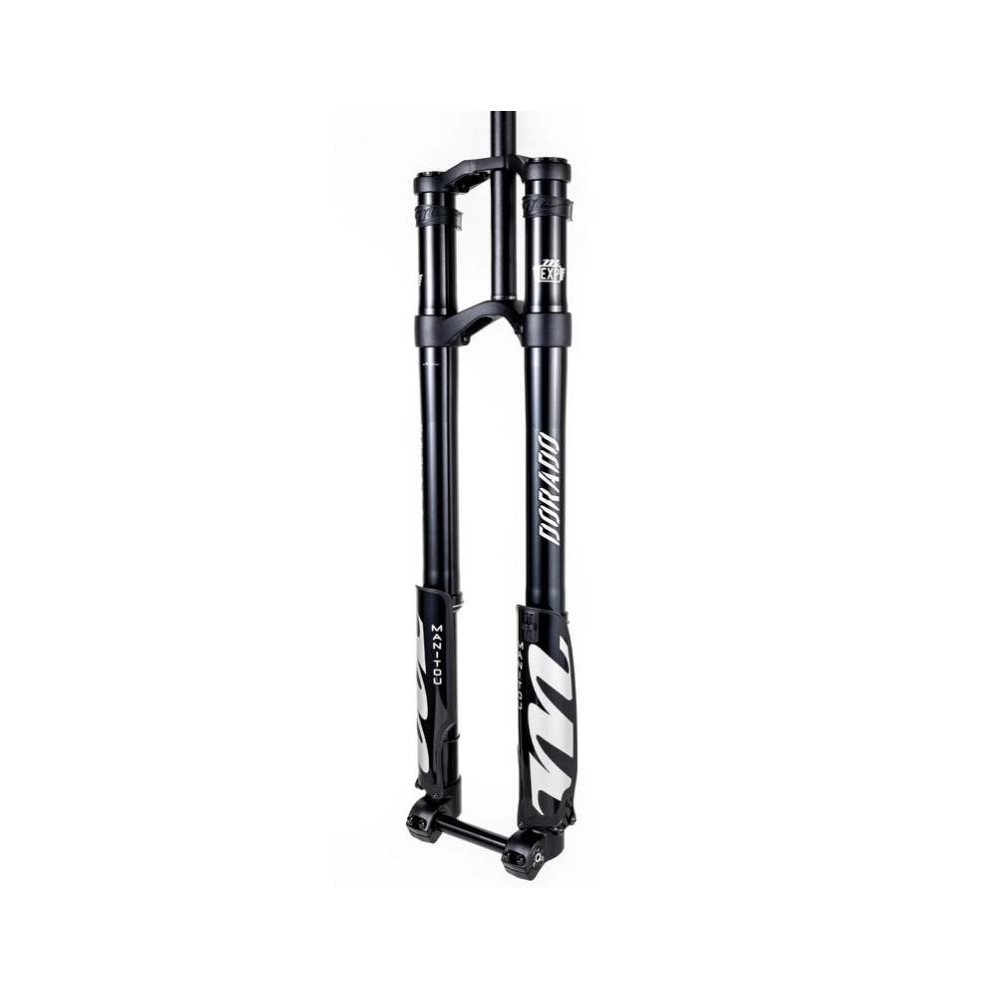

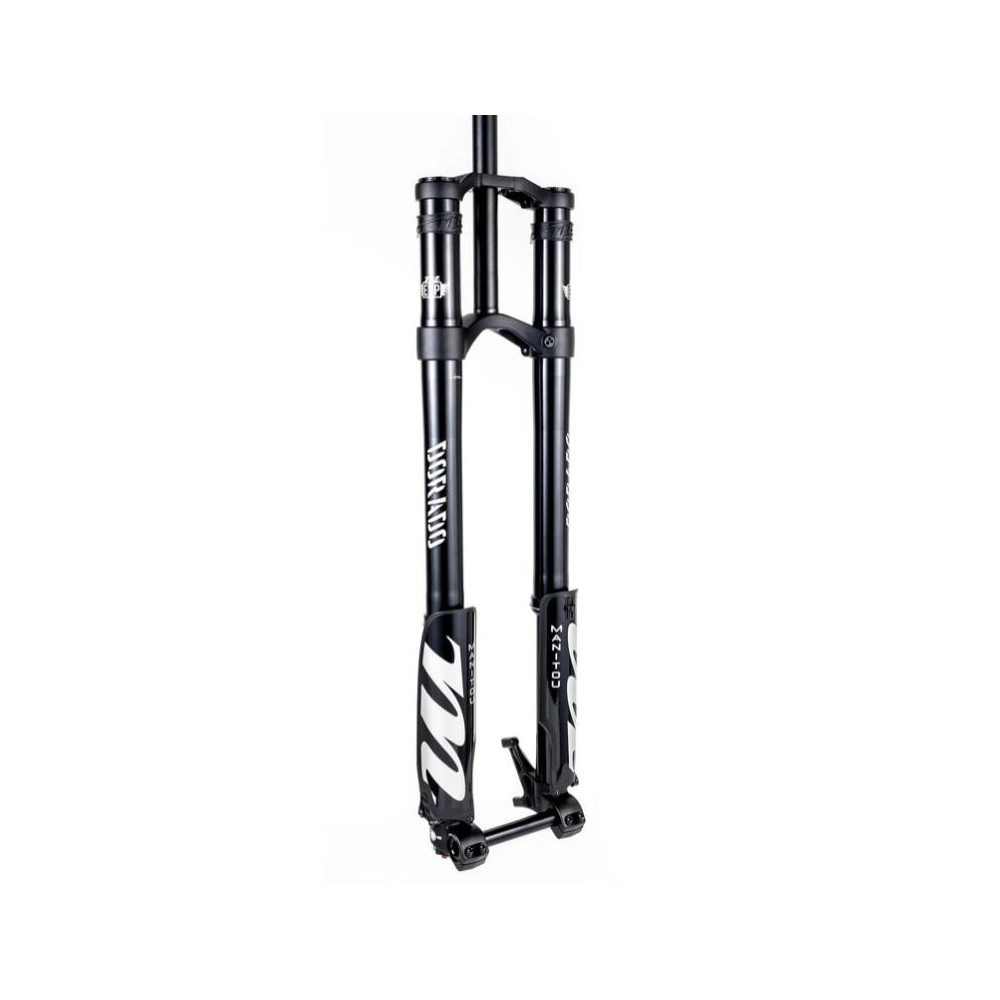

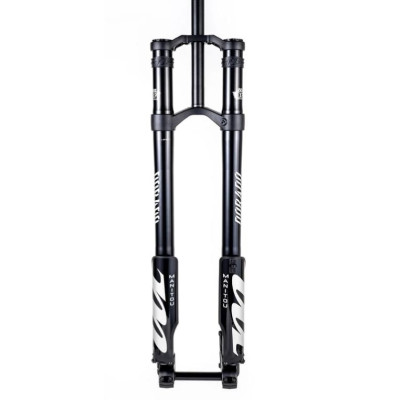

Fork MANITOU DORADO EXPERT 29" 203mm

One of the best downhill forks on the market - the legendary Manitou Doradu comes in a stylish black version as usual - with an inverted design.

In 2001, the first Dorado fork rolled down the hill. 20 years later, the latest version of this ageless legend has arrived. The Expert and Comp model lines receive machined aluminum legs and are anodized in a stylish black finish. The lower structure of the inner legs is equipped with 37 mm inner legs. Compared to the previous TPC + version, the updated version has a redesigned architecture that reduces pressure loss during the fork's rebound by separating the check valve from the compression pistons. Other design changes result in improved sensitivity on small bumps, increased damping consistency, as well as damping travel at the end of the stroke.

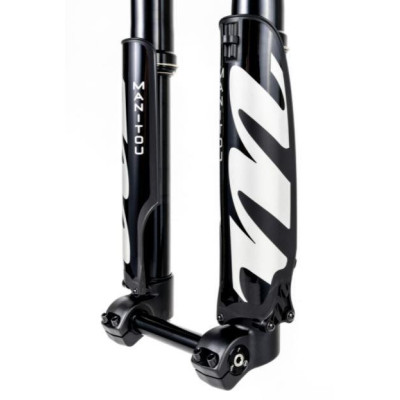

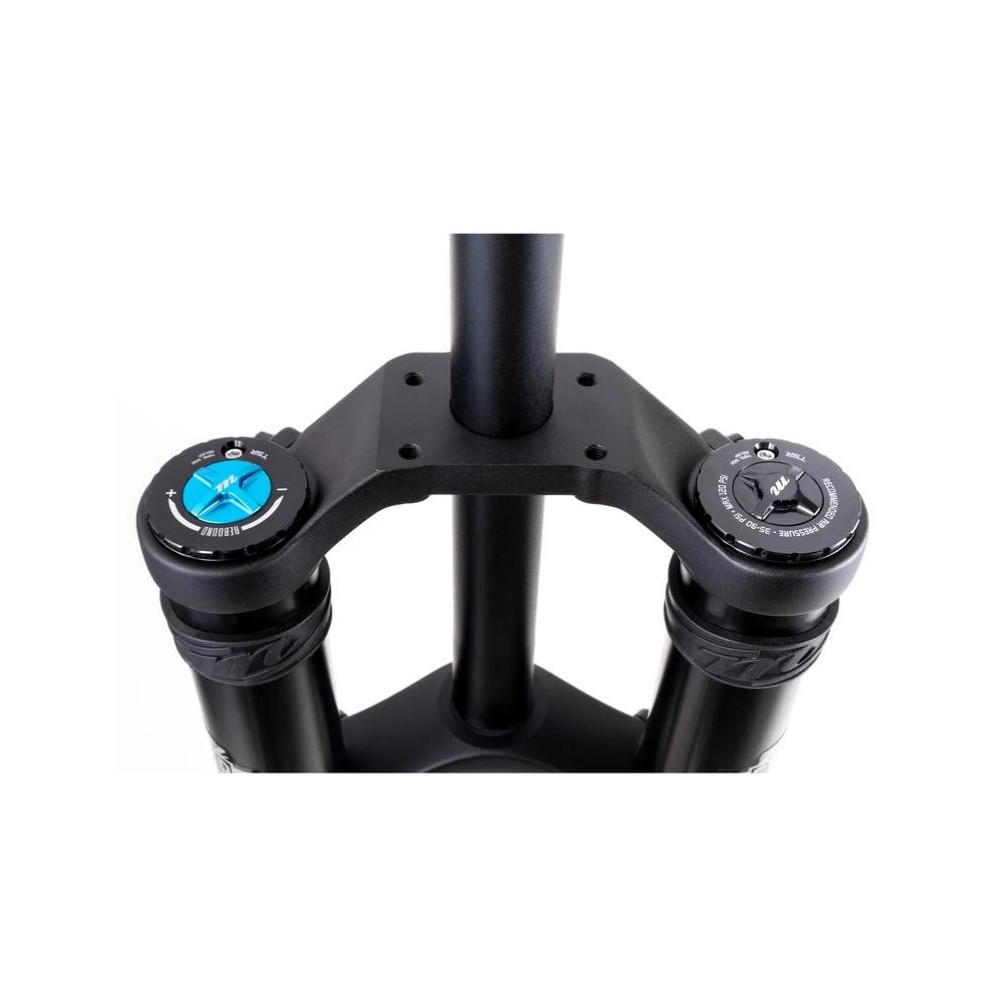

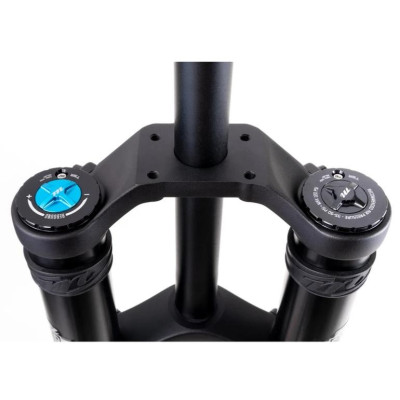

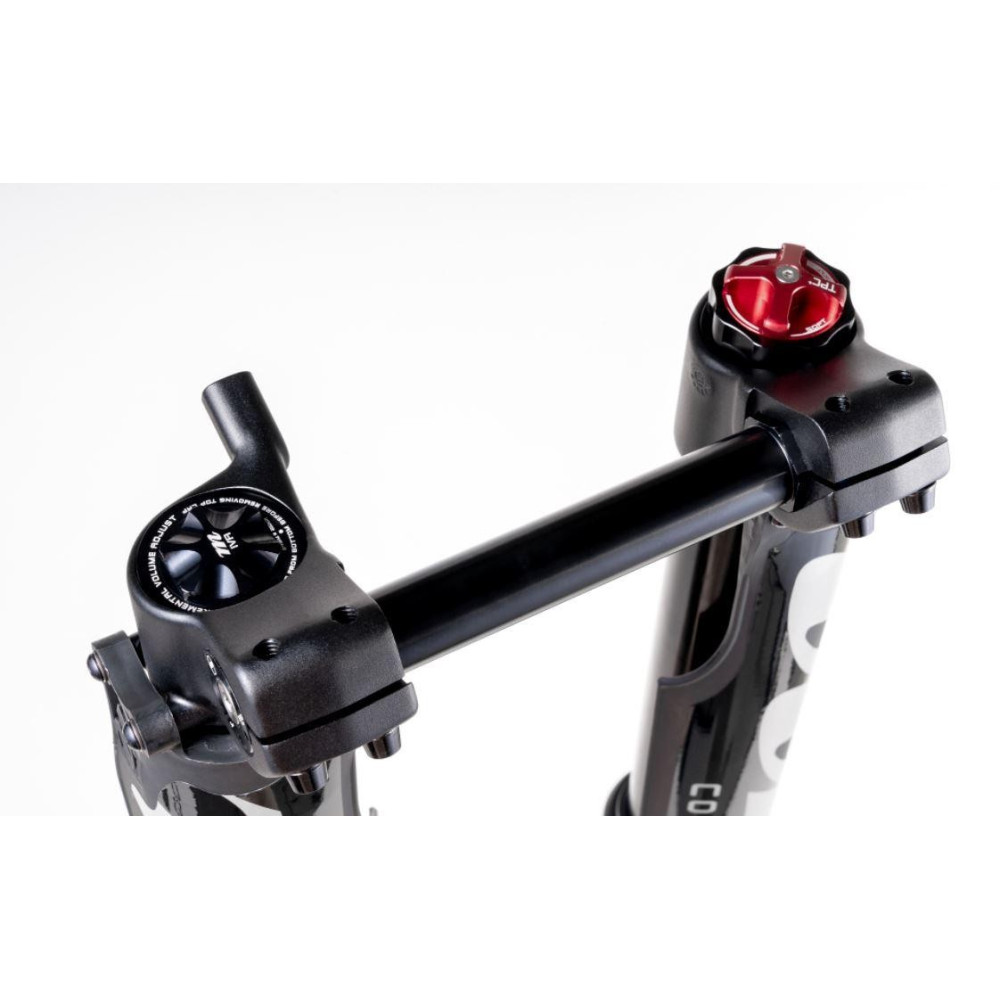

Slow and fast compression are adjusted independently at the bottom of the fork, while the rebound adjustment is located at the top .

• 37mm 6000 series aluminum internal legs
• 6000 Series Aluminum Outdoor Legs
• Aluminum bottom crown
• Aluminum post

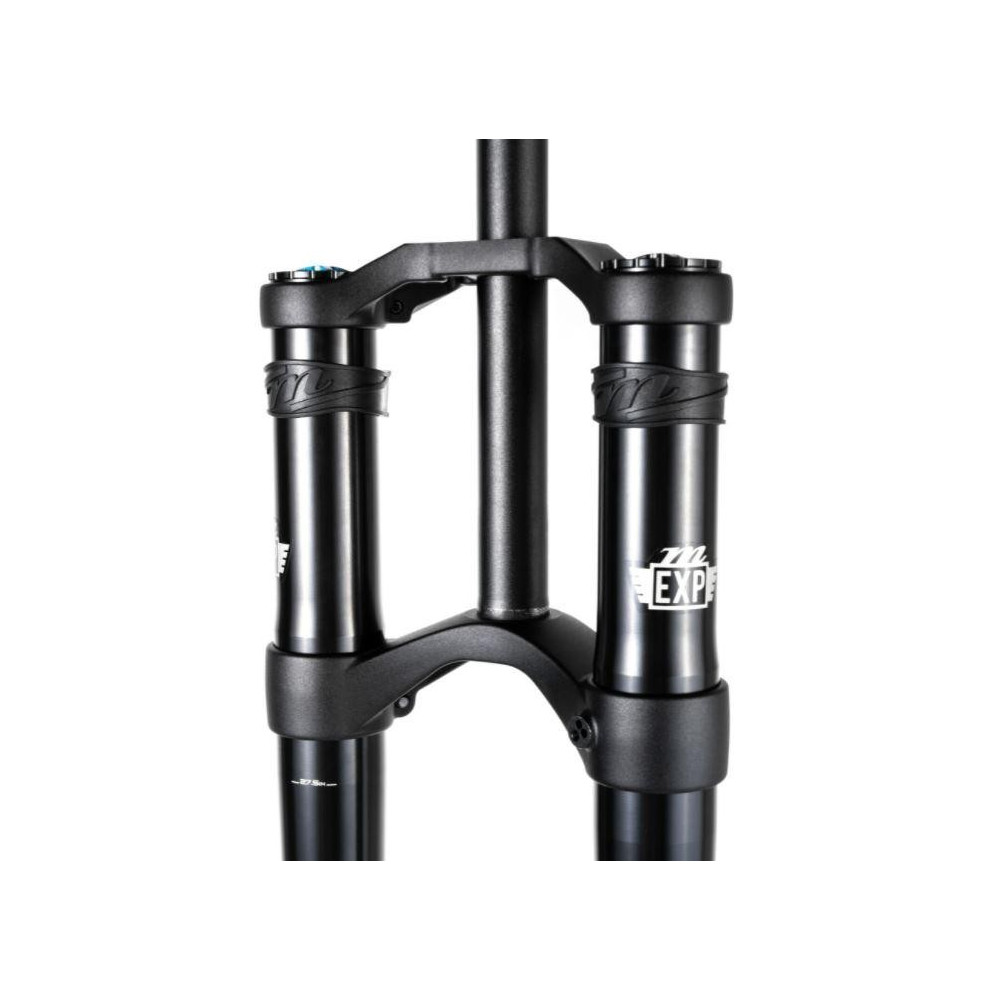

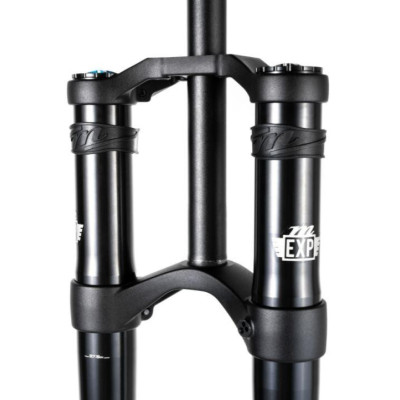

• Aluminum top crown
• Externally adjustable
• Independent slow and fast compression settings
• Rebound adjustment
• TPC + silencer with HBO

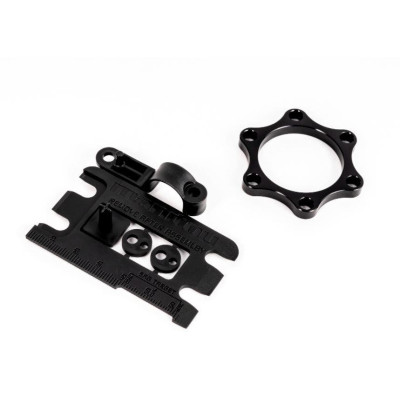

• Removable fender bolt

SPECIFICATION:

• FOR WHEEL SIZE: 27.5"/29"
• WEIGHT: 3120g
• OFFSET: 47 mm (27.5"), 57 mm (29")
• RIDE HEIGHT: 582mm (27.5"), 602mm (29'')
• STROKE: 180, 190, 203 mm internally adjustable
• SPRING: Dorado Air w/IVA
• COMPRESSION DAMPING: TPC + with HBO
• REBOUND DAMPING: Cartridge Adjustable TPC
• SETTINGS: Air, air volume, rebound, HS and LS compression
• NECK: 1-1/8" straight
• CROWN: Forged
• OUTER LEGS MATERIAL: 6000 series aluminum
• UPPER LEGS DIAMETER: 37mm
• INTERNAL LEGS MATERIAL : 6000 Series Aluminum
• BRAKE TYPE: 203 mm (223 Max)
• Axle: 110 mm x 20 mm BOOST fixed axle
• MAXIMUM WIDTH OF TIRES: 67mm
• Possibility of attaching a mudguard
