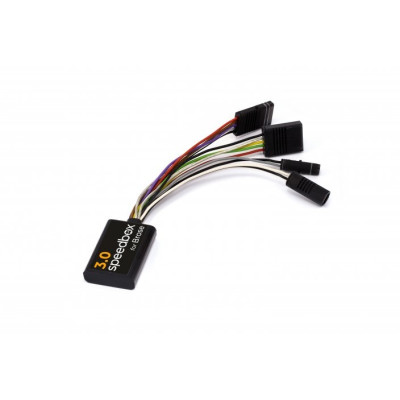

SpeedBox 3.1 for Brose Speed Tuning Chip

SpeedBox Control Unit / tuning module / chip

- removes 25km/h software speed limit

- installation directly in the engine compartment

Weight: 25g

Manufacturer: CZ

FEATURES:
Activation: WALK function/ + - + -
Maximum speed: no limit
Speed limit setting: YES
Display: real values
Compatible with engines:
Brose SPECIALIZED (except SL models)
Brose S-MAG
Brose S
T-shirt
Incompatible with:
Brose S Mag FIT engines
SpeedBox App

Smart tuning of the third generation with the possibility of setting the speed limit of the e-bike.

SpeedBox 3.0 allows any setting of the e-bike speed limiter. After installing the device, real data such as maximum speed, average speed, daily distance traveled and range are displayed on the e-bike display.

How does SpeedBox 3.0 work?

You can activate the SpeedBox 3.0 tuning on the e-bike controller. After activating the WALK function, the value 9.9 km/h (6.2 mph) will briefly appear on the display, and from that moment you can drive at an unlimited speed - 40 km/h, 50 km/h and more than 60 km/h.

You can turn off the tuning function by reactivating the WALK function. The display shows the value 2.5 km/h (1.6 mph) and the speed limit of 25 km/h is back on. The electric bike then works the same as before the installation of the tuning.

We also thought about e-bikes that do not have a classic control panel with the WALK function. In this case, just use the combination of buttons + - + - and SpeedBox will be activated. In the same way then you can easily deactivate SpeedBox.

You can set the maximum speed by gradually switching modes down three levels and then up three levels: TURBO - TRAIL - ECO - OFF - ECO - TRAIL - TURBO. Then the display shows the current speed limit. You can switch the maximum speed of the assistance by briefly pressing the WALK button or by turning the wheel 360°. The display of 1.5 km/h on the display corresponds to the limit of 15 km/h, 2.0 corresponds to the limit of 20 km/h, 2.5 corresponds to 25 km/h, 3.0 corresponds to 30 km/h, 9.9 corresponds to 99 km/h, etc. The last displayed limit is saved after five seconds of inactivity.

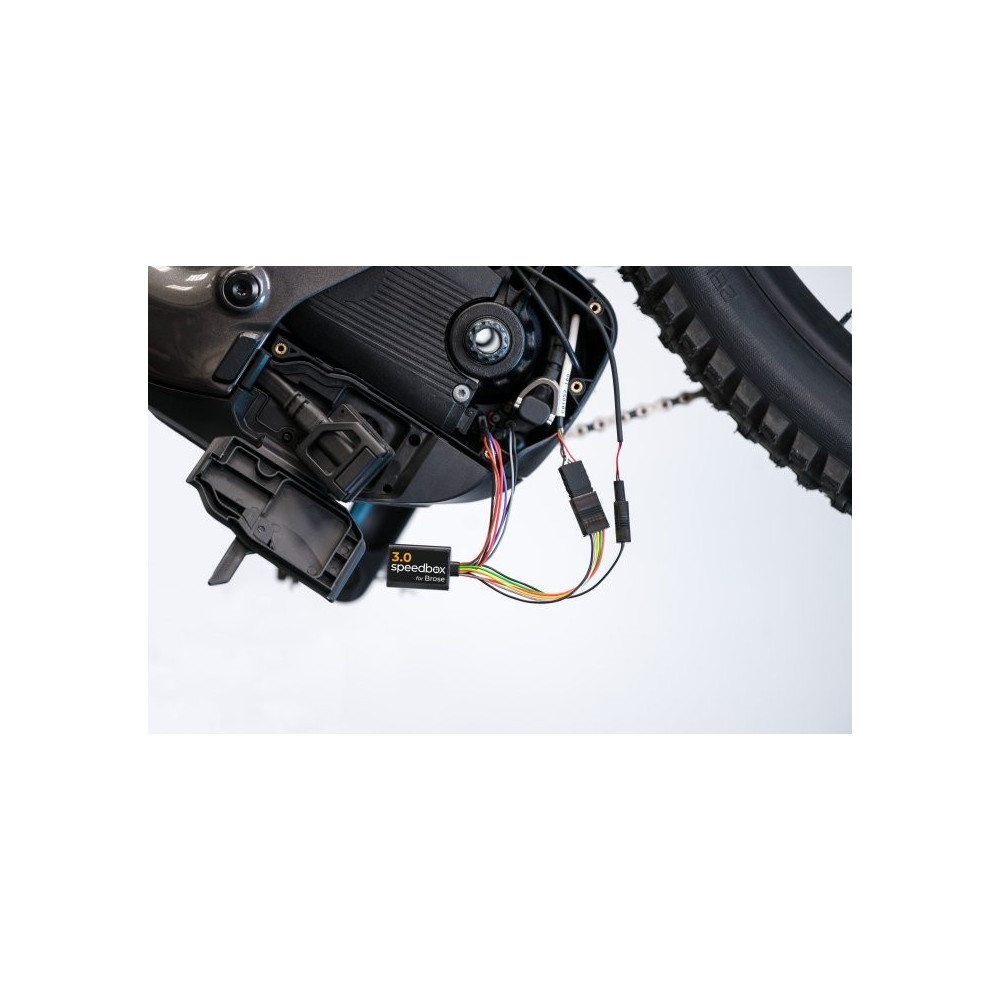

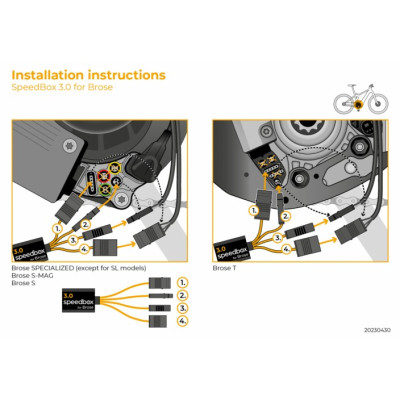

Assembly

To connect the SpeedBox device to the e-bike, we use colored connectors equipped with a key for correct connection, therefore the installation of the device is really simple. We have written detailed instructions and filmed videos, thanks to which each customer can install the device himself. Dismantling the device is as easy as assembling. If you have any problem with connection, do not hesitate to contact us.

If you are going to install the SpeedBox on a completely new bike, you need to ride it for at least 1 km before starting the tuning for the first time.

Detailed information on installation can be found here.

WARNING

Operating an electric bicycle equipped with a speed limit removal chip may be illegal in some countries. An electric bicycle equipped with a Chip loses its status as a bicycle according to EN15194:2017, therefore its operation may not be in accordance with the applicable legislation for the operation of electric bicycles on public roads (including public roads intended exclusively for cyclists and pedestrians). Installing the Chip may result in the loss of the warranty on the drive or bicycle. Neither the manufacturer nor The seller is not responsible for any damage to health or life or property. Use at your own risk.

LIFETIME WARRANTY

It covers the functionality and compatibility of the chip on the current and previous firmware of the drive at the time of sale . The warranty does not cover the inoperability of the chip after a later update of the drive, with which the chip may no longer be compatible!

WARNING BEFORE UPDATING

Before visiting the service center, it is necessary to physically remove the Chip from the drive! The Chip manufacturer does not recommend updating the drive. If using a mobile application (e.g. Ebike flow), turn off automatic updates. If this is not necessary, please always consider updating the drive. Each update contains improved anti-tuning software that can detect the Chip and disable the Chip or temporarily block the drive (Emergency mode / Limbo mode). In such a case, we recommend removing the Chip and checking the functionality of the drive.
If the drive works without removing the Chip (i.e. the Chip is defective), contact us with an exact description of the bike and the situation. If the problem persists (i.e. the drive itself is defective, not the Chip), please visit your bike dealer.
