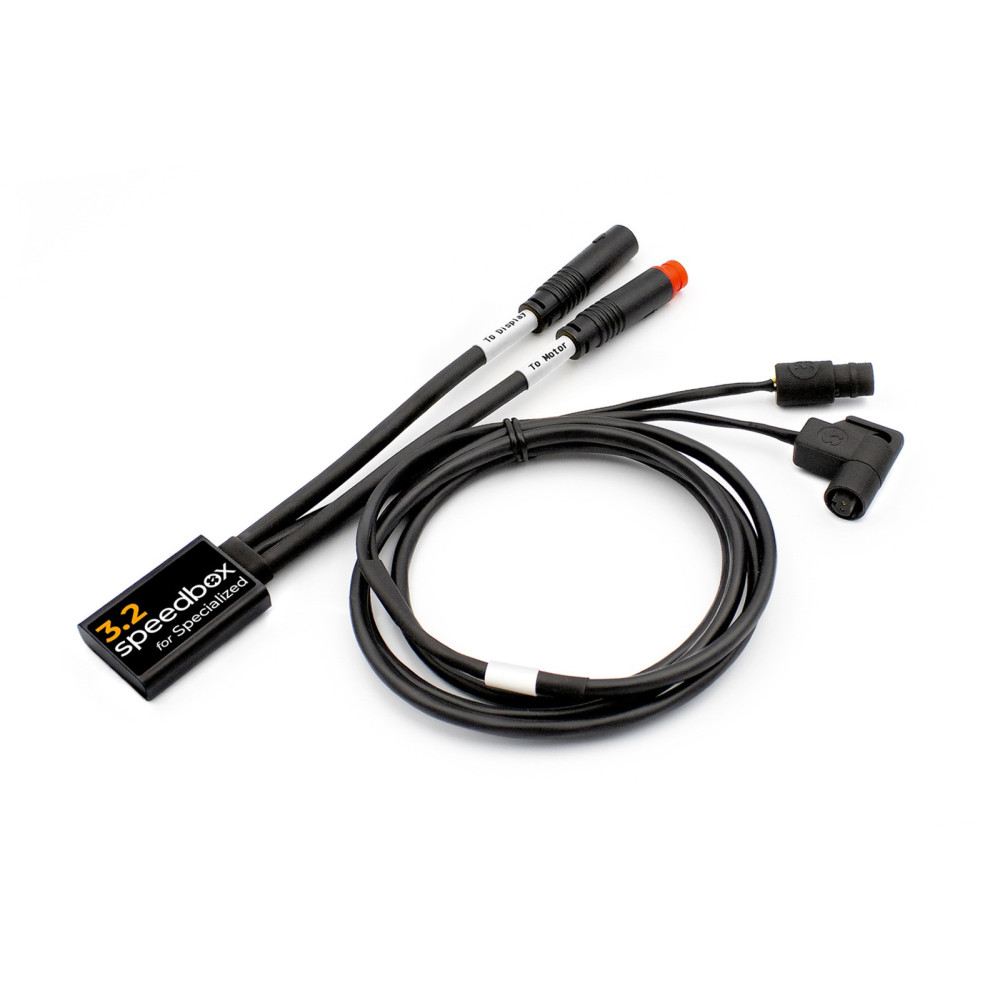

SpeedBox 3.2 for Specialized 3.1 (LEVO4) Speed Tuning Chip

SpeedBox Control Unit / tuning module / chip

- removes 25km/h software speed limit

- installation directly in the engine compartment

Weight: 25g

Manufacturer: CZ

Maximum speed: no limit

Speed limit setting: YES

Display: real values

Activation: With the WALK or - + - + button

Compatible with engines:

Specialized 3.1 (101 Nm)

Specialized 3.1 S-Works (111 Nm)

Incompatible with: SpeedBox App

Tuning chip 3rd gen. with speed limit setting for Specialized e-bikes with 3.1 engines

SpeedBox 3.2 deactivates the speed limit of the e-bike and you can enjoy riding at unlimited speed. After installing the chip, real data such as maximum or average speed, daily distance traveled and range are displayed on the e-bike display.

How does SpeedBox 3.2 for Specialized (S-Works) work?

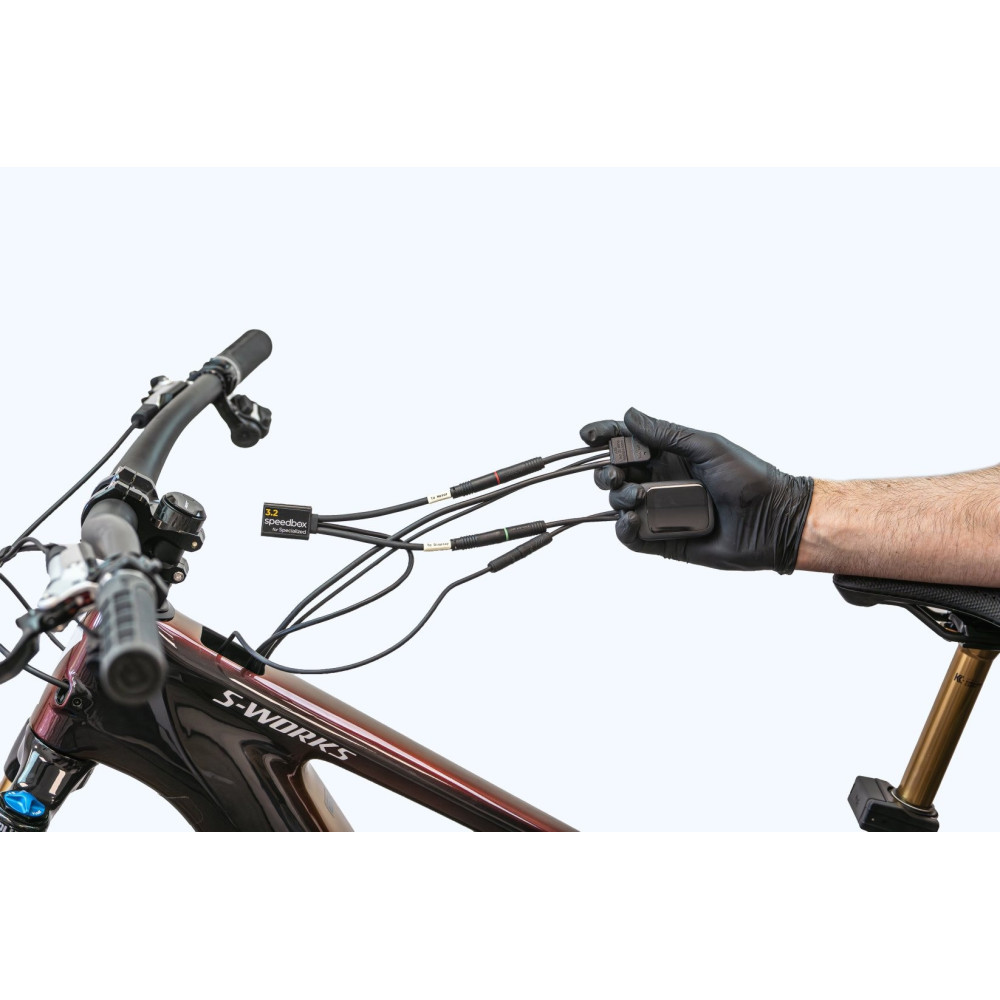

You install the SpeedBox in the e-bike frame under the control unit.

You can activate the tuning by pressing the WALK button or by combining the buttons - + - +. The value 35.1 km/h will briefly appear on the display, which means the preset maximum speed of 35 km/h.

You deactivate the tuning in the same way. The value 25 km/h will appear on the display, and the e-bike then works the same as before the installation of the tuning.

You can change the maximum assistance speed by gradually switching modes from TRAIL mode down three levels and then up three levels (AUTO- ECO - OFF - ECO - AUTO- TRAIL). The display shows the default maximum assistance speed. Each time you press the WALK button or turn the rear wheel, you increase the maximum speed of the assistance by 5 km/h each time. The last displayed limit is saved after five seconds of inactivity.

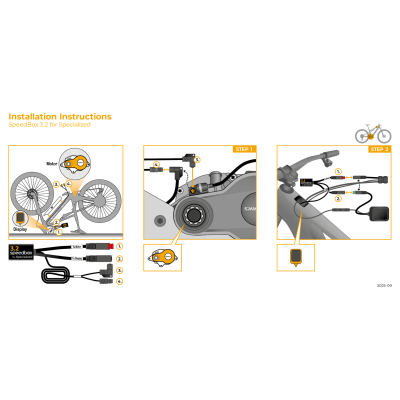

Assembly

To connect the SpeedBox device to the e-bike, we use colored connectors equipped with a key for correct connection, therefore the installation of the device is really simple. They wrote down we have detailed instructions and filmed videos, thanks to which each customer can handle the installation of the device himself. Dismantling the device is as easy as assembling. If you don't know what to do, you can contact us at any time.

If you are going to install the SpeedBox on a completely new bike, you need to ride it for at least 10 km before starting the tuning for the first time.

Detailed information on installation can be found here.

WARNING

Operating an electric bicycle equipped with a chip to remove the speed limit may be illegal in some countries. An electric bicycle equipped with a Chip loses the status of a bicycle according to EN15194:2017, therefore its operation may not be in accordance with the applicable legislation for the operation of electric bicycles on roads (including roads intended exclusively for cyclists and pedestrians). Installing the Chip may result in the loss of the warranty on the drive or bicycle. The manufacturer or seller is not liable for any damage to health or life or property. Use at your own risk.

LIFETIME WARRANTY

It covers the functionality and compatibility of the chip on the current and previous firmware of the drive at the time of sale . The warranty does not cover the inoperability of the chip after a later update of the drive, with which the chip may no longer be compatible!

WARNING BEFORE UPDATING

Before visiting the service center, it is necessary to physically remove the Chip from the drive! The Chip manufacturer does not recommend updating the drive. If using a mobile application (e.g. Ebike flow), turn off automatic updates. If it is not necessary, please always consider updating the drive. Each update contains improved anti-tuning software that can detect/undetect the Chip and disable the Chip or temporarily block the drive (Emergency mode / Limbo mode). In this case, we recommend removing the Chip and checking the functionality of the drive.
If the drive works without removing the Chip (i.e. the Chip is defective), contact us with an exact description of the bike and the situation. If the problem persists (i.e. the drive itself is defective, not the Chip), please visit your bike dealer.
