To order the required size FOX RACING SHOX ALUMINUM BUSHING SET - 7-PIECE 6 MM or 8 MM

An innovative system of sliding bushings and spacers for FOX shock absorbers with an internal diameter of 8mm, compatible with both older and new shock absorbers.
The main contact point between the shock and frame structure has been redesigned to offer a number of benefits.
Lower friction - the new system reduces friction by up to 50% compared to the original two-piece aluminum insert system and allows the shock absorbers to respond faster to all rear end movements.
Cleanliness and durability - O-ring seals and a flanged two-piece housing are designed to prevent dirt from entering the system.
Tool-free assembly - all components of the new system can be easily assembled without the use of tools.

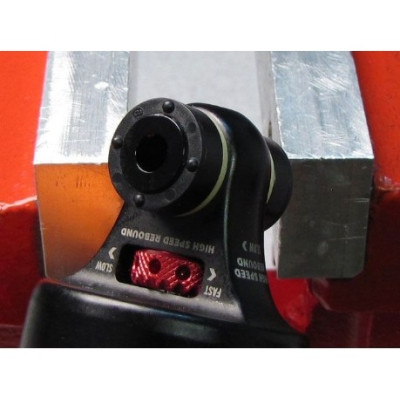

The new feature is the side replacement pads, which perfectly define even the slightest clearance in the shock absorber mounting. By pushing apart the protrusions on the outer pads (in a vice with aluminum jaws), the shock absorber will be mounted as tightly as possible to the frame.
Note: The package contains parts for mounting into one eye of the shock absorber.

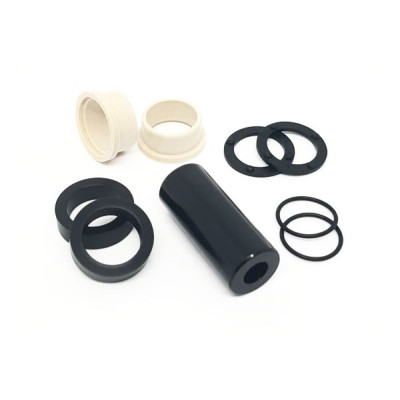

The Fox Racing Shox bushing set made of aluminum with 6 mm bore:

19.0 mm:
803-03-256
20.0 mm:
803-03-327
20.83 mm:
803-03-257
21.08 mm:
803-03-333
21.84 mm:
803-03-258
22.2mm:
803-03-259
23.88 mm:
803-03-260
24.64 mm:
803-03-261
25.15mm:
803-03-262
25.4mm:
803-03-263
25.91 mm:
803-03-264
27.94 mm:
803-03-265
28.45mm:
803-03-266
30.0 mm:
803-03-267
30.43 mm:
803-03-268
31.75mm:
803-03-269
32.05mm:
803-03-270
33.83 mm:
803-03-271
35.0mm:
803-03-272
39.88 mm:
803-03-274
41.15mm:
803-03-275
45.72 mm:
803-03-332
49.78 mm:
803-03-276

The Fox Racing Shox bushing set made of aluminum with 8 mm bore:

19.0 mm:
803-03-277
20.0 mm:
803-03-326
21.54mm:
803-03-278
21.84 mm:
803-03-279
22.2mm:
803-03-280
22.86 mm:
803-03-281
23.37 mm:
803-03-282
23.88 mm:
803-03-283
24.89 mm:
803-03-284
25.0mm:
803-03-328
25.15mm:
803-03-285
25.4mm:
803-03-286
25.91 mm:
803-03-312
26.92 mm:
803-03-287
27.43 mm:
803-03-288
27.94 mm:
803-03-289
28.8mm:
803-03-290
30.0 mm:
803-03-291
31.75mm:
803-03-292
32.39 mm:
803-03-293
33.02 mm:
803-03-294
33.68 mm:
803-03-331
33.83 mm:
803-03-295
34.0 mm:
803-03-296
35.0mm:
803-03-297
35.56mm:
803-03-298
36.0 mm:
803-03-313
37.59 mm:
803-03-299
38.61 mm:
803-03-300
39.88 mm:
803-03-301
40.0 mm:
803-03-325
41.15mm:
803-03-302
41.55mm:
803-03-303
42.19 mm:
803-03-304
43.69 mm:
803-03-305
44.86 mm:
803-03-306
45.72 mm:
803-03-307
47.75mm:
803-03-308
49.78 mm:
803-03-309
