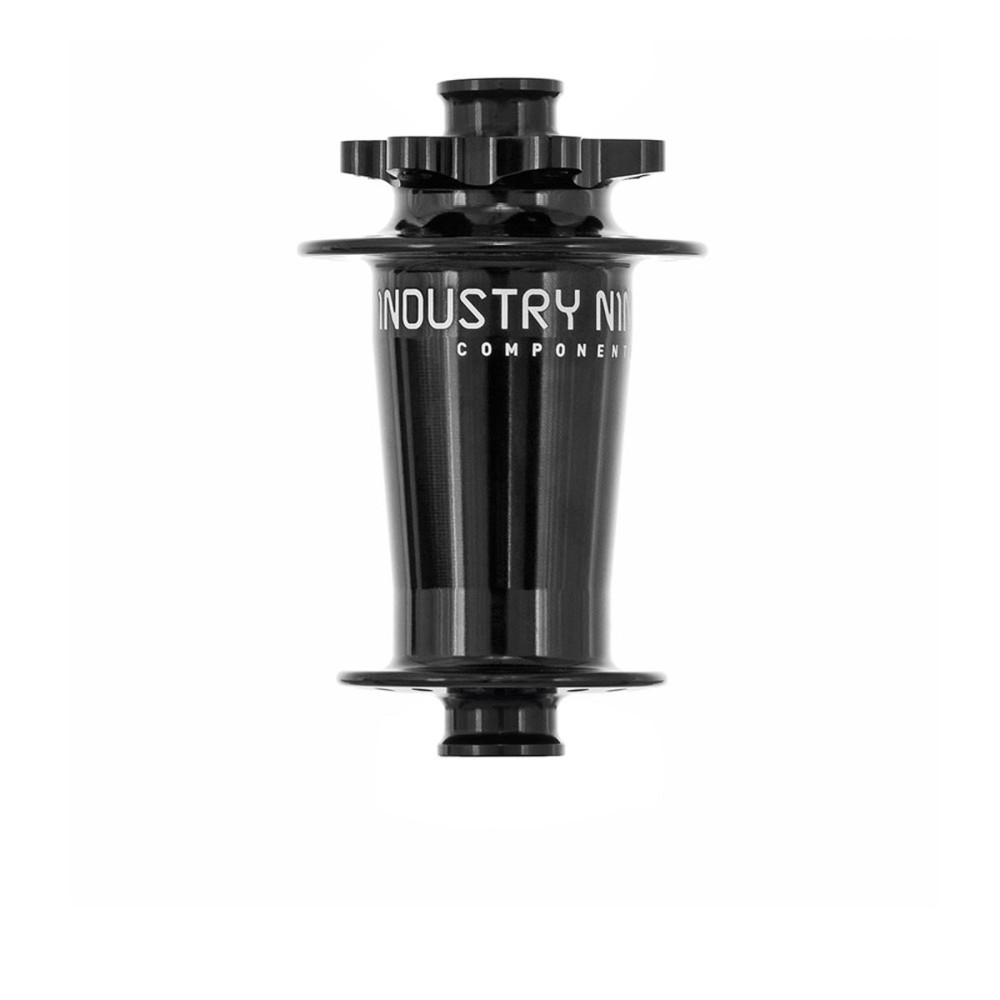

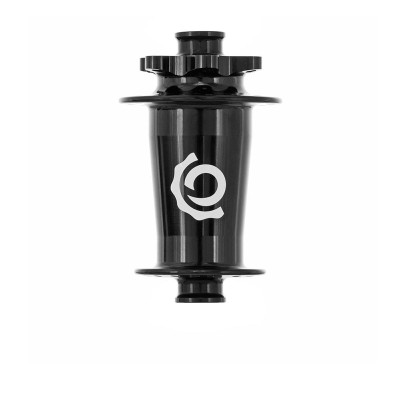

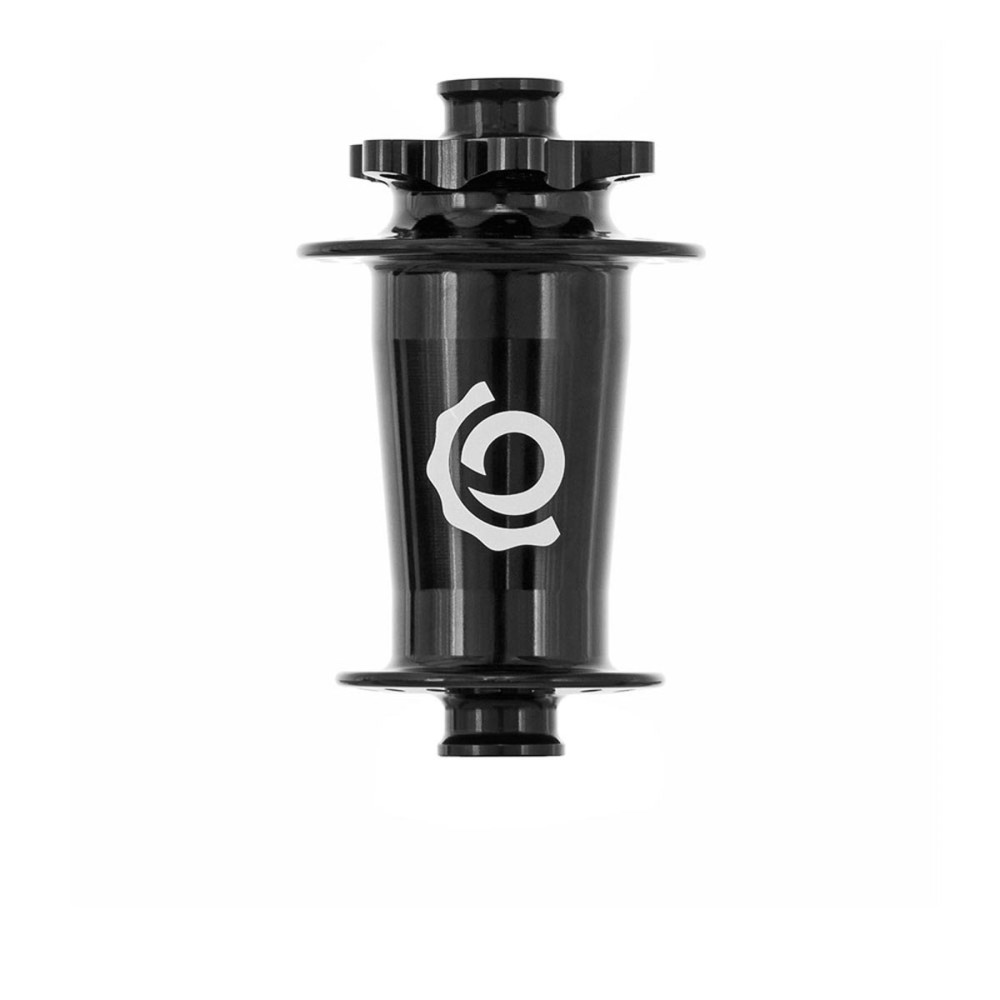

INDUSTRY NINE HYDRA CLASSIC BOOST FRONT HUB

If it is stated that the goods are IN STOCK = next day delivery
Goods on order/inquiry = Within 7-14 days

32 sticks | Front 15x110 | 6B (IS 6 holes)
WEIGHT 165g

We can order any axle size, number of spoke holes, color and nut type for you:

FRONT 6 Bolt: QR, 9mm thru, 12mm, 15mm, 15mm Torque Cap, BOOST 15*, BOOST 20*, 20mm, LeftyMAX*
FRONT CENTERLOCK: 15X110

REAR 6 Bolt: QR, 12X135, 12X142, 12X148*, 12X150*, 12X157SB*, SINGLE SPEED*, SINGLE SPEED 148*
REAR CENTERLOCK: 12X148
FREEHUB: Sram XD /Shimano HG10/HG11 / MicroSpline

The most commonly used size on the market is, for example:
32 sticks | Front 15x110 | Rear 12x148 | 6B (IS 6 holes) | SRAM XD freehub

Custom production! These are goods made according to the specific requirements of the consumer.
More about INDUSTRY NINE configuration and customization! (click HERE)

Specification

Industry Nine HYDRA Classic hubs are the heart of your wheels, everything revolves around them. Every I9 Classic hub is built from start to finish in our Asheville, NC, USA machine shop. From turning and milling 7075-T6 aluminum to make the body, axles and bushings, to wire-cutting A2 tool steel for the pawls and guides, to our in-house anodizing lab, every step of the design, engineering, manufacturing and assembly process is done right on site to our exacting standards.

Hydra Classic MTB hubs are packed with features that every rider will appreciate, such as a revolutionary 0.52° / 690POE engagement point, generously low weight and an intuitive layout that can be serviced without any custom tools. Our range boasts a range of standard options in terms of axle housing, spoke holes, rotor mounting discs, freewheel bodies and colors.

The Industry Nine Hydra has a very fine nut mechanism that features six pawls, each pawl having two opposing teeth. This results in a minimum engagement angle of 0.52 degrees per click, for a total of 690 clicks over a 360-degree range. Super smooth operation and a unique sound.

HYDRA vs SOLIX vs 1/1

HYDRA = 165g/286g - 6 pawls - DriveRing 115T - 6 phases (1 pawl engaged) = 690POE / 0.52° - 12 colors - 24/28/32h - MTB/XC/EN/DH/GRAVITY

SOLIX = 110g/282g - 5 pawls - DriveRing 121T - 5 phases (1 pawl engaged) = 605POE / 0.59° - 12 colors - 24/28h - ROAD/GRAVEL/MTB/XC

1/1 = 165g/295g - 6 pawls - DriveRing 45T - 2 phases (3 pawls in engagement) = 90POE / 4.00° - black color only - 28/32h - MTB/XC/EN/DH/GRAVITY

MADE IN USA.

Industry Nine is a company based in Ashville, North Carolina, USA, that specializes in the production of HAND-woven wheels and hubs of the highest quality. Industry Nine products represent the absolute top of the current market for woven wheels and hubs. The wheels excel in torsional rigidity, low weight and design. There are 12 color combinations to choose from, which can be combined as desired. You can easily design your own color combination and be original.

Why are INDUSTRY NINE hubs popular?

In addition to premium quality and color customization, they offer the lowest shooting angle / highest number of shooting points of 690 POE (vs. common 32-108 POE cartridges, e.g. DTSWISS 240 56POE).
This patented system generates an unmistakable legendary sound signature, which can be further influenced by DUMONDE lubrication products.
