Included in the package:

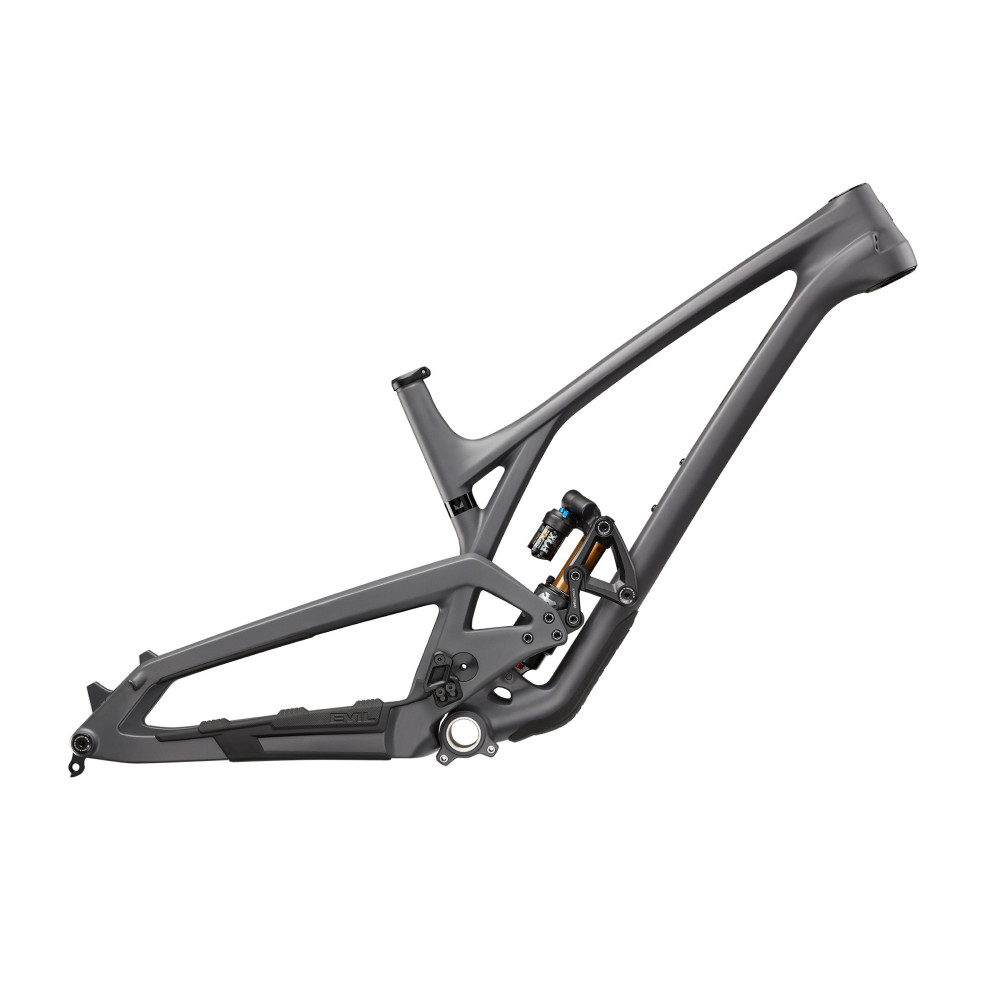

• frame
• muffler
• head composition
• saddle clamp
• chainstay protector
• integrated chain guide (30-36z)

The Insurgent is available in both full 27.5" and a mixed-wheel 29"/27.5" MX version. Small wheels for the park, jumps, whips, andberms, or MX for increased front wheel traction, steeper lines, heavy slabs and chunder crushing. 27.5" never died. It just quit caring what people think. Enter the Insurgent.

ENTER THE INSURGENT

If necessity is the mother of invention, then the pursuit of uselessness is the father of joy. Because it's the unnecessary things that make life sing: the berm slash, the millisecond manual you slip between turns, the sloppy scrub, the bar hump to make the crew laugh.

With more travel, 168mm versus 150mm on the Insurgent v1, both iterations of the new Insurgent celebrate the long send. It's an on-command jump, drift, manual, pop, trail mulching machine. This is a bike built for the shits and giggles that happen when one isn't timed or judged. So cut the rhetoric. Cut the tape. Cut the corners by clearing them completely, switchback to switchback and back into the future. The Insurgent doesn't try to win enduro tracks. It shreds them.

PARK SHREDDER OR ENDURO RACER?

The Insurgent is available in two configurations with well-curated build kits. The Insurgent MX 29 is designed for enduro and steep, aggressive trail riding. Offering the benefits of both wheel sizes, the 29" front wheel provides the ultimate in upfront handling and monster truck capabilities while maintaining the corner slap-ability of the 27.5" rear wheel. Enduro racer or aggressive trail rider with a taste for the steeps? This is for you.

Park laps and freeride lines more your thing? The Insurgent 27.5 is the ultimate small wheel shred machine for crushing your favorite jump line and all-day park laps. The 27.5" wheels keep the precision level high when you're deep into a set of berms and you require maximum levels of maneuverability.

SPECIFICATIONS

Available Colors
Clean Slate
Wheel Travel
168mm
Shock Hardware
Trunnion Upper, 20x8mm Lower
Fork Axle to Crown
581mm, Rockshox Zeb 29" 170mm / 577mm, Rockshox Zeb 27.5" 180mm
ForkOffset
44mm
Headtube
Tapered 1 1/8
Headset
Cane Creek 40 Series IS42 - IS52 , Upper ZS/44 Lower ZS/62mm Tapered OD
Seatpost Diameter
30.9mm
Seat clamp diameter
34.9mm
Rear Wheel Diameter
27.5
Maximum Rear Tire Size
2.6"
Bottom Bracket Shell
73mm Threaded
Chainline
56.5mm
Chainguide Mount
ISCG05 Lower
Maximum Chainring Size
36T Single Ring
Minimum Chainring Size
30T
Rear Wheel Spacing
157mm x 12mm
Front Derailleur
Single Ring Only
Rear Brake Mount Type
Post Mount 180mm
Maximum Rear Rotor Size
203mm

*AI generated translation*
